Thrilling technology.

The machine results you expect – in a playful, transparent, efficient and reliable process

The MV-S series is made for high cutting speeds with a combination of tight tolerances and a low power consumption. With its non-contact Tubular drive and modern technologies it optimizes the wire- and power consumption. Therefore these machines ensure economic benefits which pay off year after year. Finally they are ideal for a reliable man-free operation due to the „Intelligent AT“ wire threading.

With a general accuracy of 3 µm and a roughness down to Ra 0.3 µm they can be used for the following production areas:

  • Mold & die
  • Precision engineering
  • Medical (implants, tools etc.)
  • Fine blanking
  • Additive industries (cut-off)

Quickselect

Welcome to our quick navigation. Here you can directly select a topic that you are particularly interested in. You will then be directed to this topic.

Quick Facts

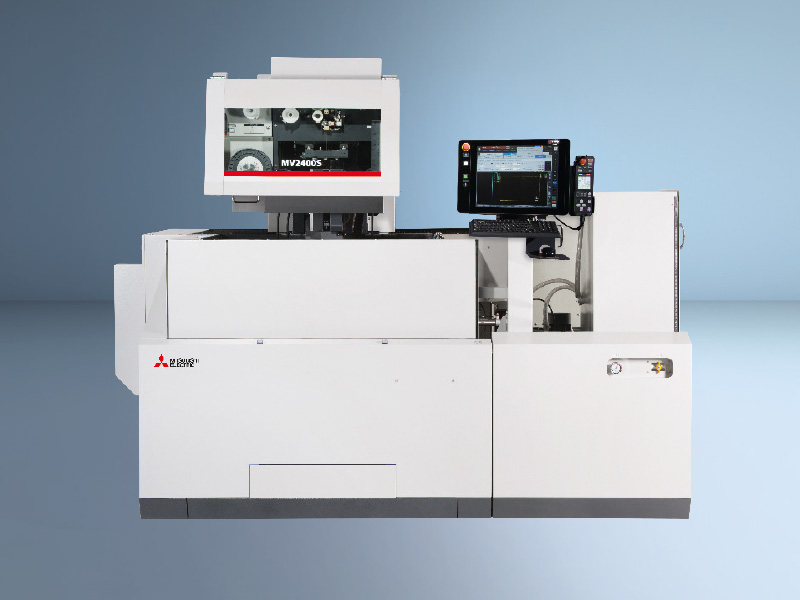

MV-S Series  XYZ
MV4800S ThumbnailMV1200S400300220
MV2400S600400310
MV2400S Z+ 600400425
MV4800S800600510

Mechanical Engineering

Solid machine body

The specially selected Meehanite casting ensures durability that can be measured in decades and copes with high workpiece weights day after day. The rugged machine bed takes even the severest ­punishment in its stride – unlike many a less expensive material.

Perfect drive

What was it about conventional drive systems that bothered developers at Mitsubishi Electric? The need for lubrication, the friction and frictional heat, power consumption, backlash, the cogging moment and above all the possible wear. Only a non-­contact drive overcomes these drawbacks from the outset and is thus an assurance of better results and enhanced dependability over decades.

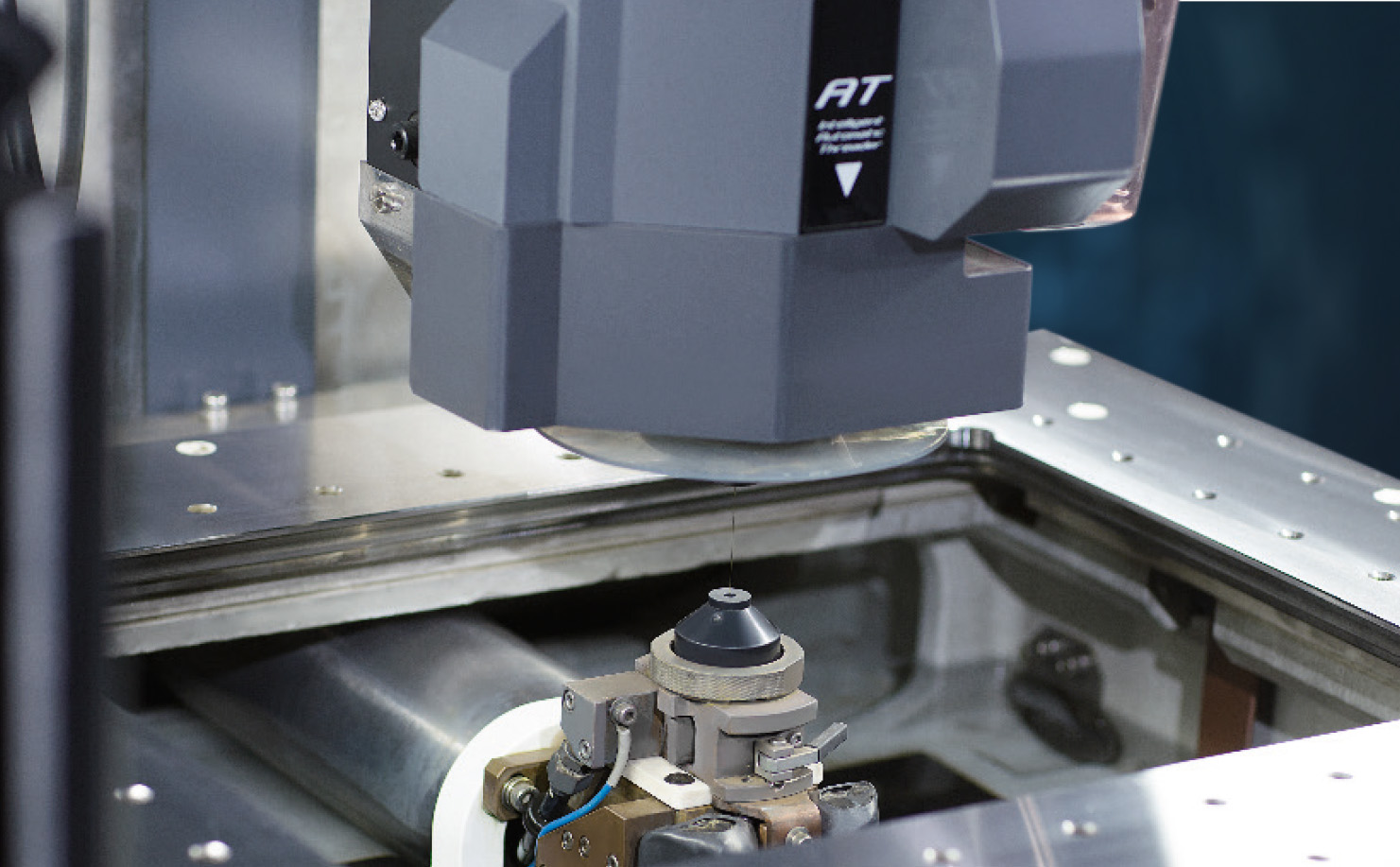

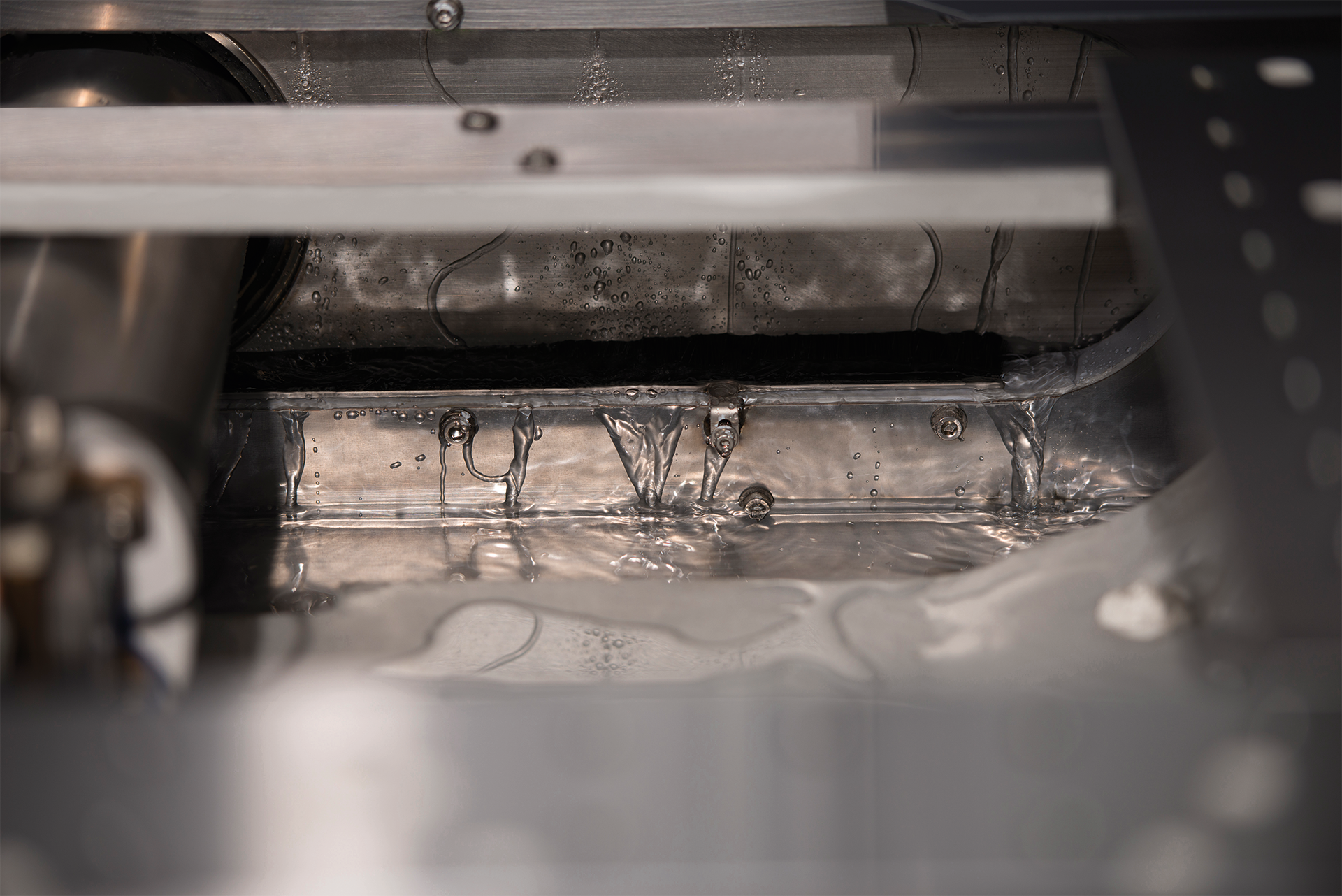

Durable hardened stainless steel table

The three-sided work table is ergonomically built on the Z = 0 level. This way workpieces can be perfectly positioned, even without clamping elements. High-grade stainless steel components and the stainless steel tank ensure dependability and maintenance-freedom.

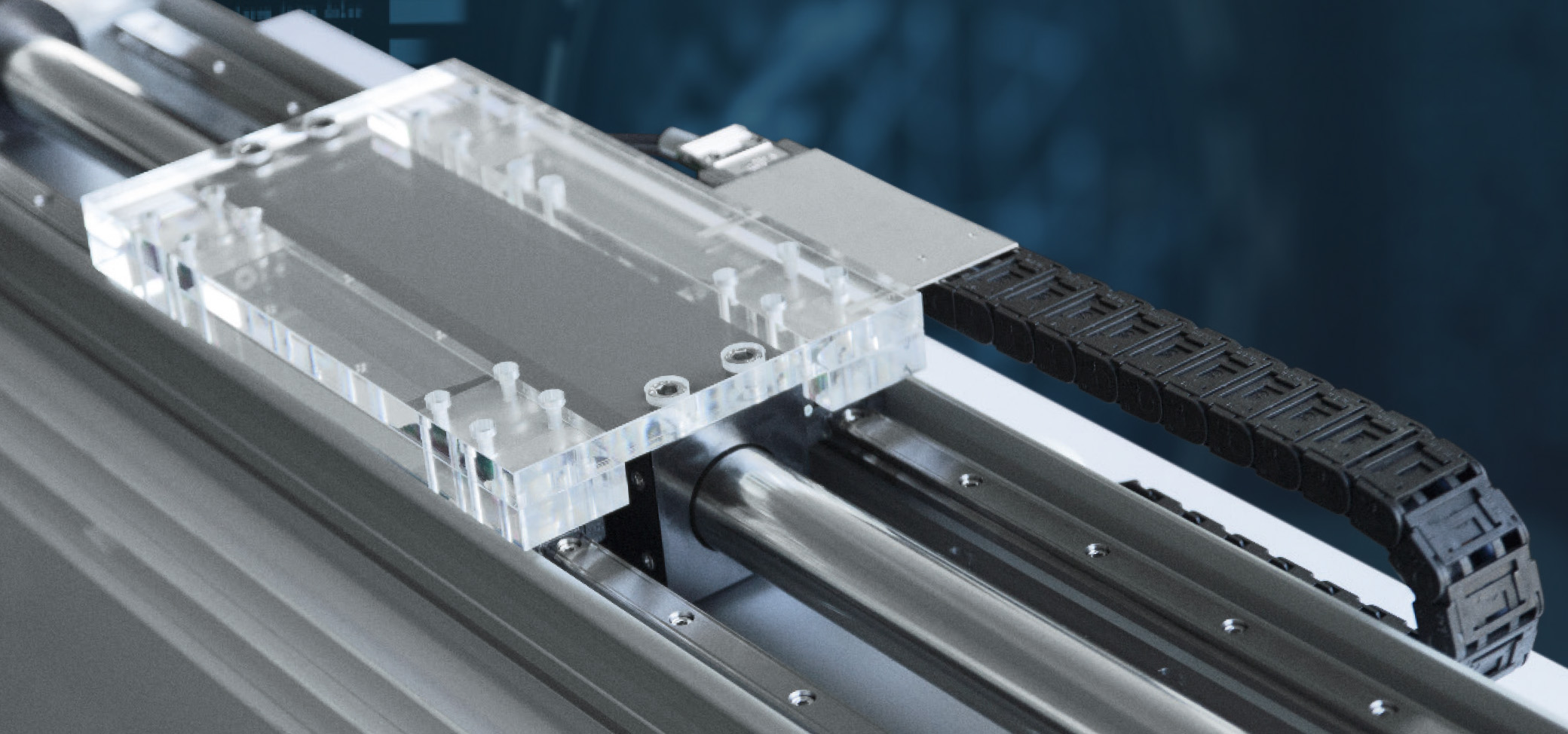

The Tubular Shaft Motor

The Tubular Shaft Motor converts energy directly into motion, without contact, without maintenance and above all without loss of precision – long-term. Combined with the 400% faster fibre-optic-­based control, this superior technology can truly show what it is capable of.

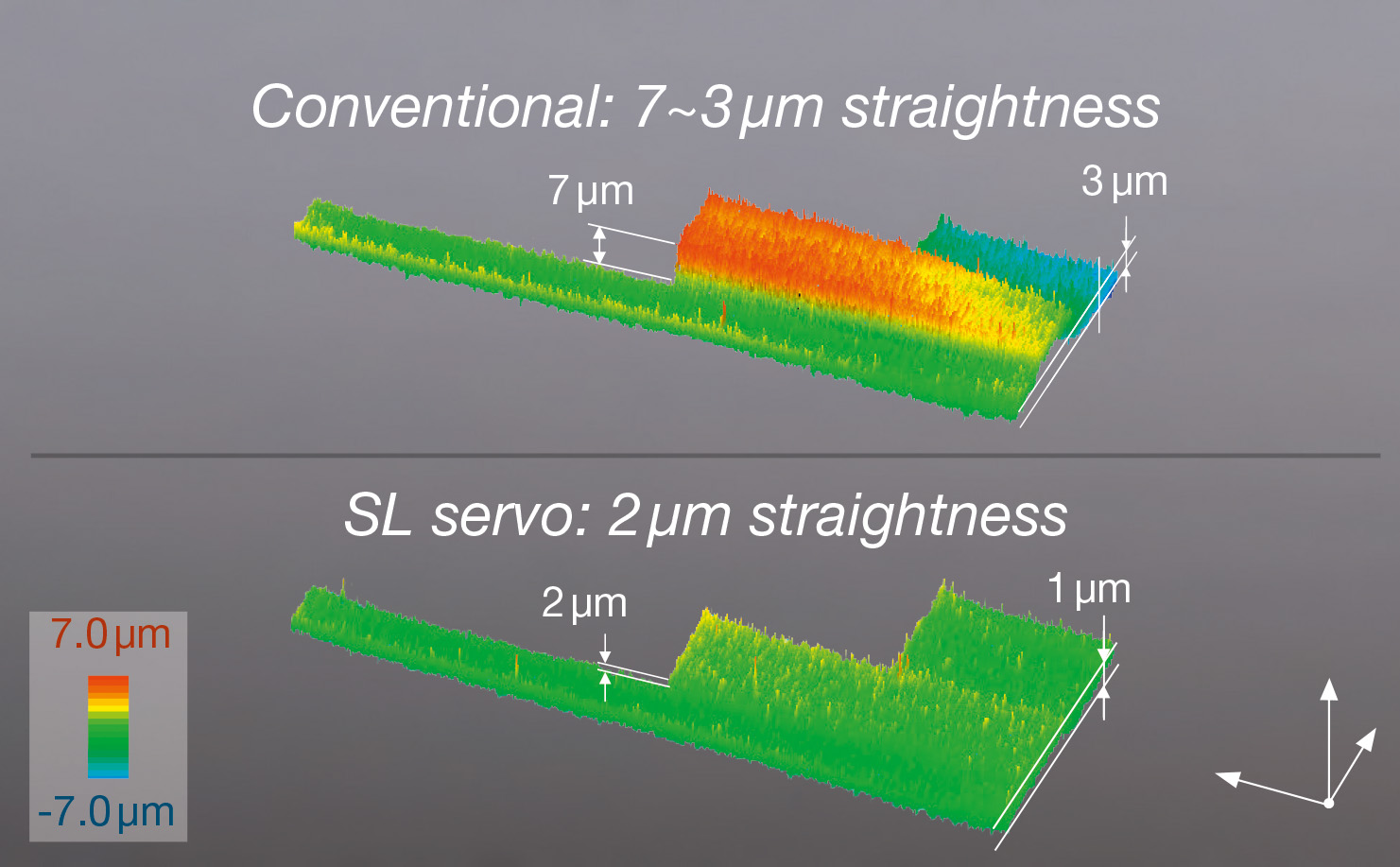

The positioning accuracy even of the large MV2400R is < +/- 2 µm over the entire travel path – there’s a genuine 12-year manufacturer warranty for this on all Mitsubishi Electric EDM systems. An assurance of top-level durability.

Your company’s technological edge has a name: ­Tubular Shaft Motor – from world market leader ­Mitsubishi Electric.

Find out more about it here:
www.mitsubishi-edm.de/tsm

The speed of light...

…for communication by fibre optics.

The Tubular Shaft Motor with its highly responsive control fully exploits the benefits of high communication speed. No heat, no maintenance and no contact – just extra precision for good. At Mitsubishi Electric, this is known as “Changes for the Better”.

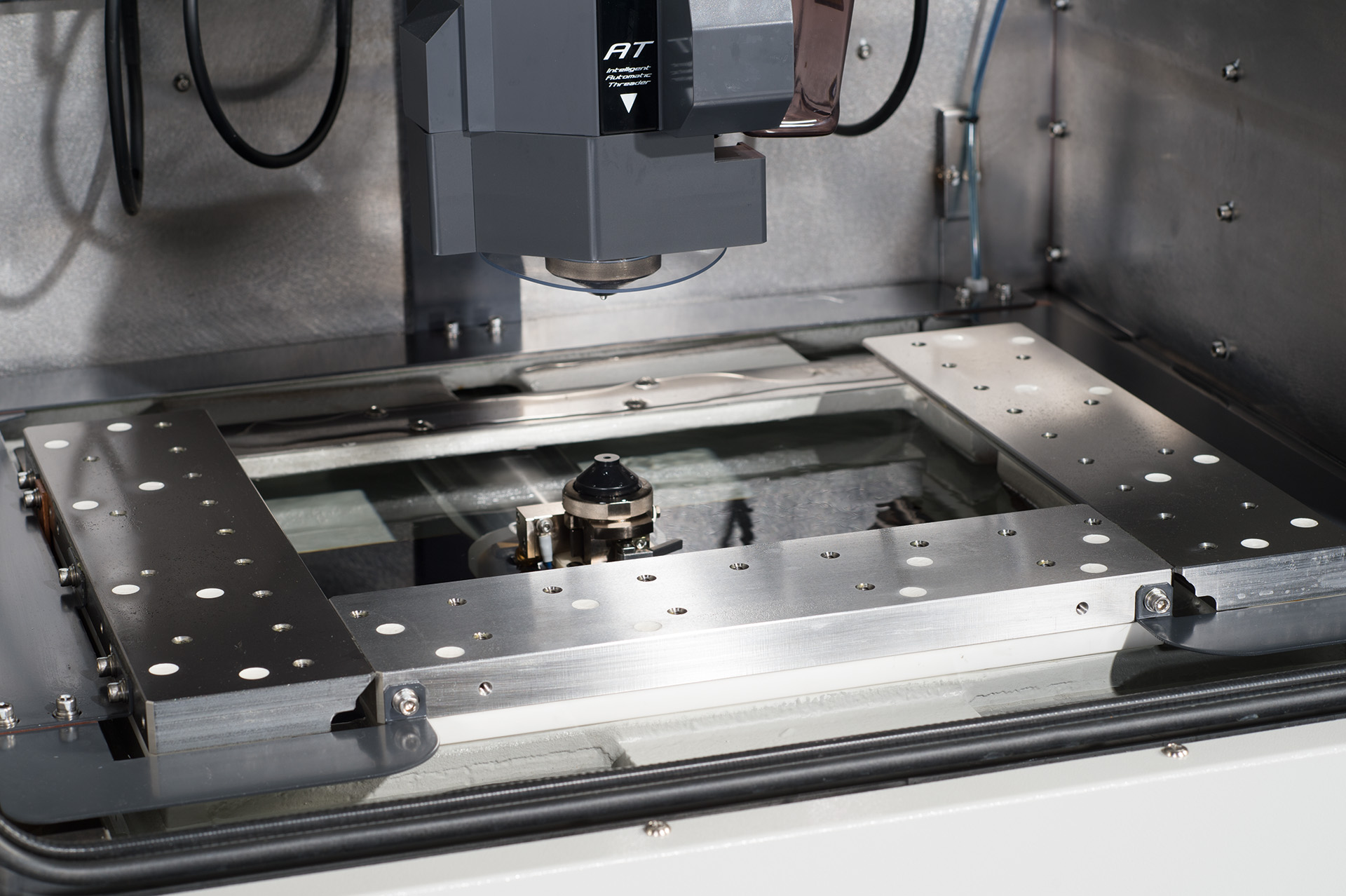

Focus on ergonomics

Set-up, programming, maintenance etc. – all the key elements are directly accessible at the front of the machine. The entire wire feed, automatic wire thread­­ing and wire guide heads plus the whole workspace are readily accessible – not least thanks to the open design and automatic vertical sliding door.

Crash Protection System already installed.

A considered and far-sighted approach is the best safety policy – but what if things have to be done in a rush? An intelligent EDM system that spots and prevents possible collisions contributes to safety at work and saves annoyance and time.

Crash Protection System in action

See for yourself and watch the dependable Crash Protection System from Mitsubishi Electric in action!

Straight to the film:
www.mitsubishi-edm.de/cps-en

The door that simply vanishes...

…so that you have direct access. This saves time and space and makes workpiece set-up that much easier.

Cutting wire replacement

Simply replace the spool and feed the cutting wire over the feed rollers. Everything ready for work again in 92 seconds.

Watch film now:
www.mitsubishi-edm.de/spool

Rapid filter change...

…without tools or wasted time. Two hands, 32 ­seconds – and the filter is replaced.

Straight to the movie:
www.mitsubishi-edm.de/filters

Changing the power feed contact

Replace the power feed contact with just one hand and a small gauge – at a speed befitting ­Formula One.

See for yourself:
www.mitsubishi-edm.de/power

Round diamond guide

Maximum precision and durability ensure the best results in the long run – inclusive of maintenance-­friendliness due to a small number of parts and simple design.

Fully automatic

The wire-cut EDM systems from Mitsubishi Electric constantly check current axial forces and thus fully ­automatically detect potential accidents before they happen. If there is an obstacle in the travel path, this is electronically detected on the basis of the drive’s load change during the approach and the control ­automatically reverses. Better safe than sorry!

No disruptive cogging torque

You’re surely familiar with the cogging torque ma­n­i­fested by a conventional electric motor. It is precisely this cogging torque that is undesirable, as are variations in torque. The Tubular Shaft Motor – the optimal drive for precision applications like electrical discharge machining.

Features in this category

Solid machine body
Perfect drive
Durable hardened stainless steel table
The Tubular Shaft Motor
The speed of light...
Focus on ergonomics
Crash Protection System already installed.
Crash Protection System in action
The door that simply vanishes...
Cutting wire replacement
Rapid filter change...
Changing the power feed contact
Round diamond guide
Fully automatic
No disruptive cogging torque

Show more features

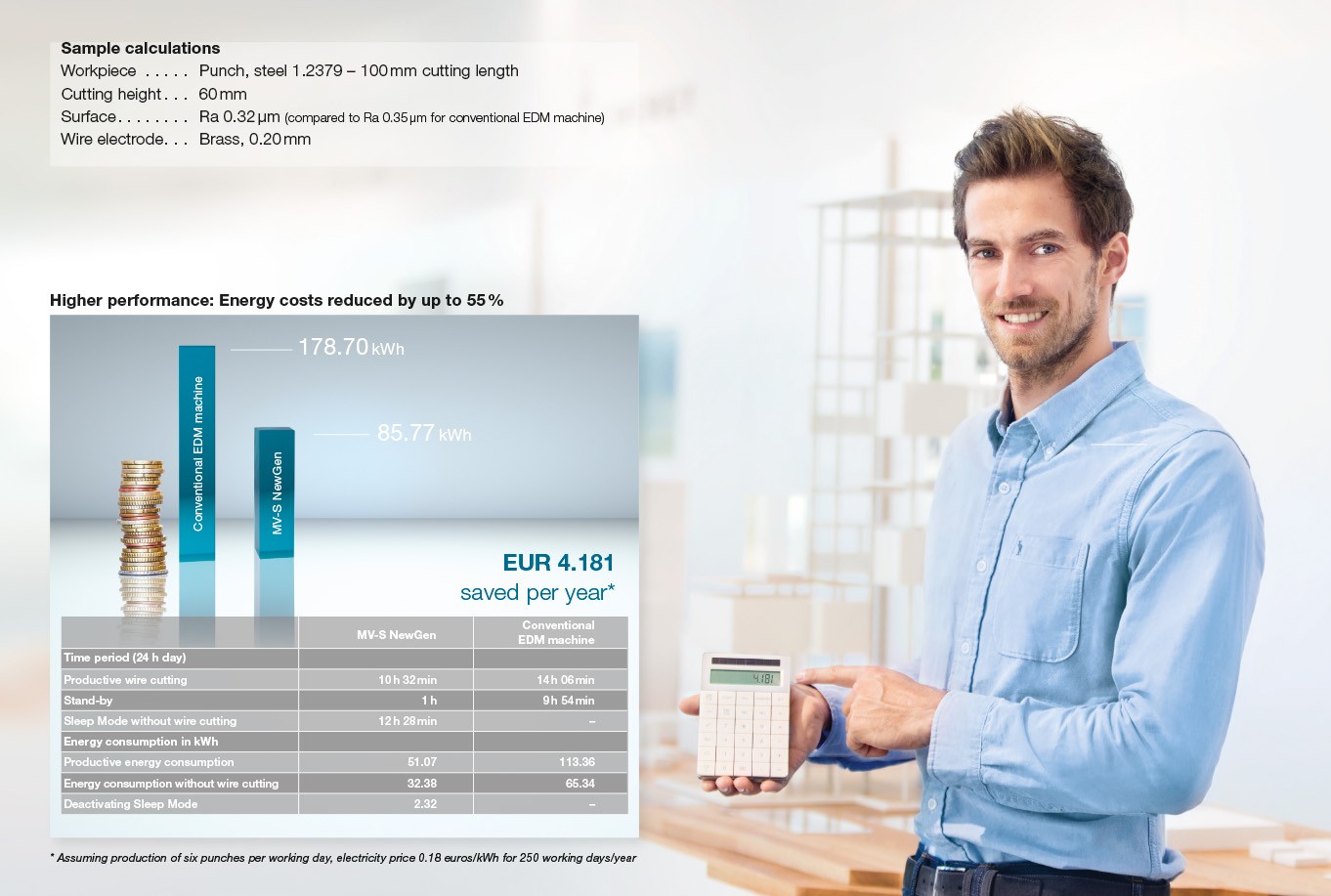

Economic efficiency

An EDM system must help your company to make ­money.

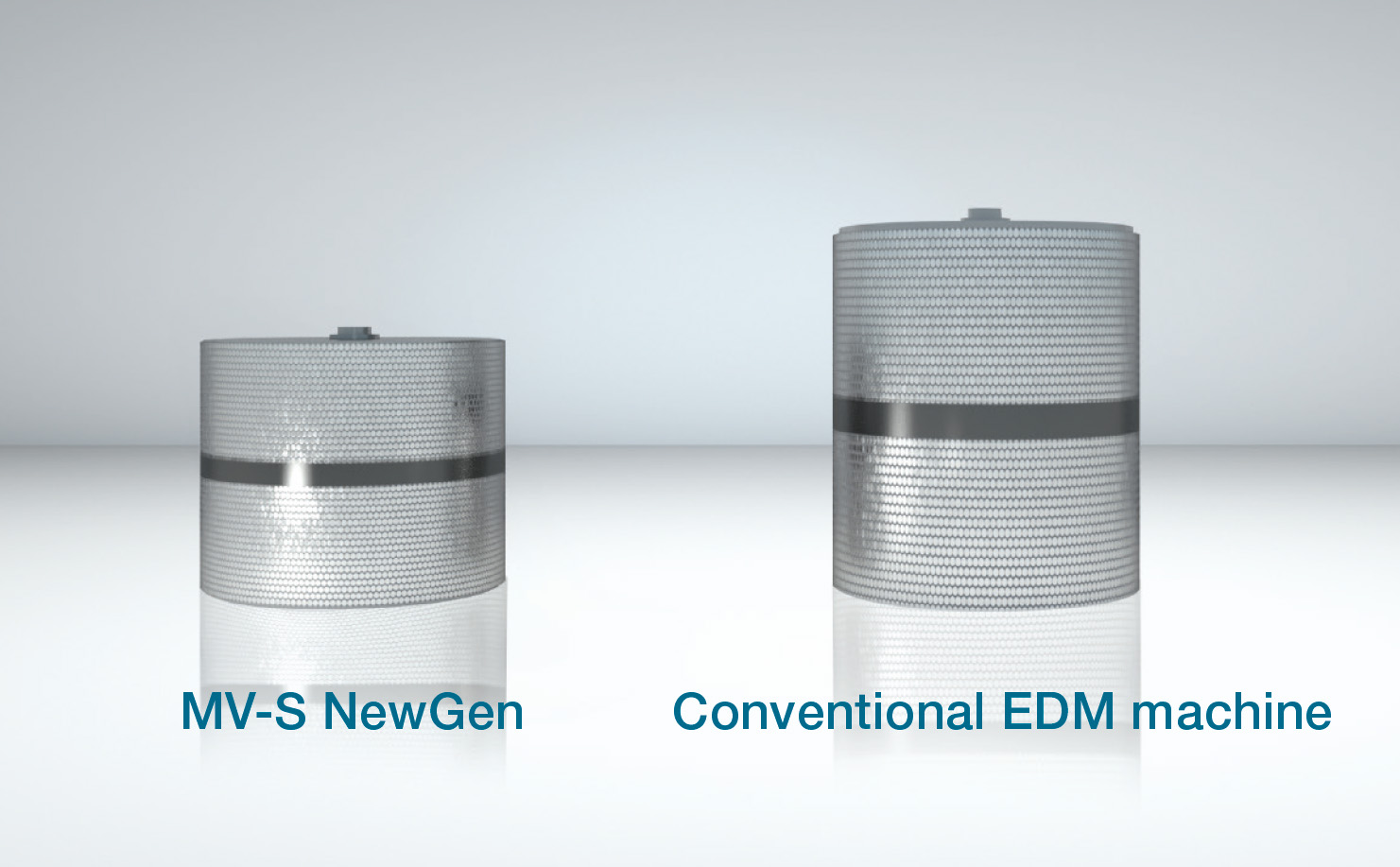

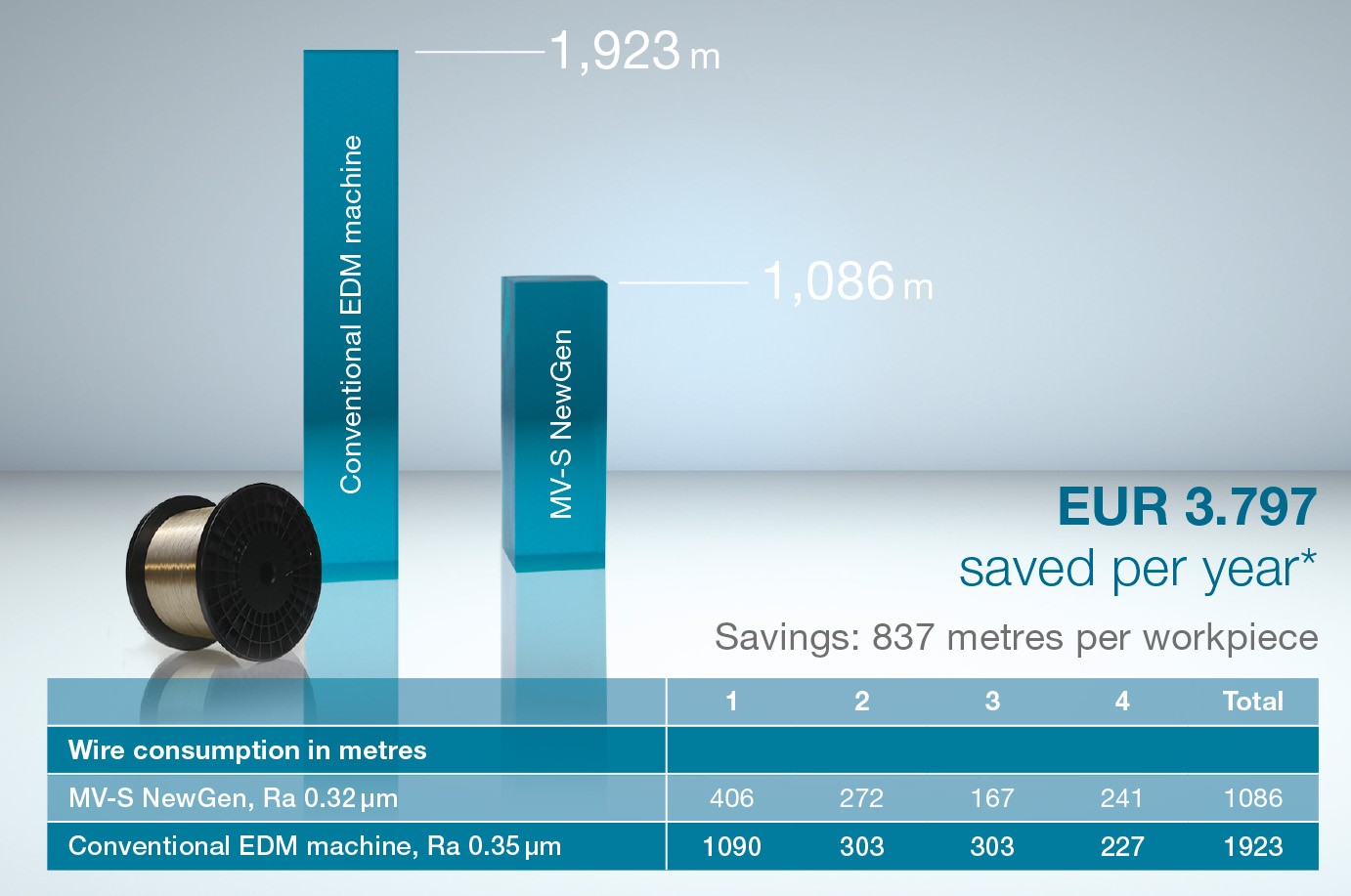

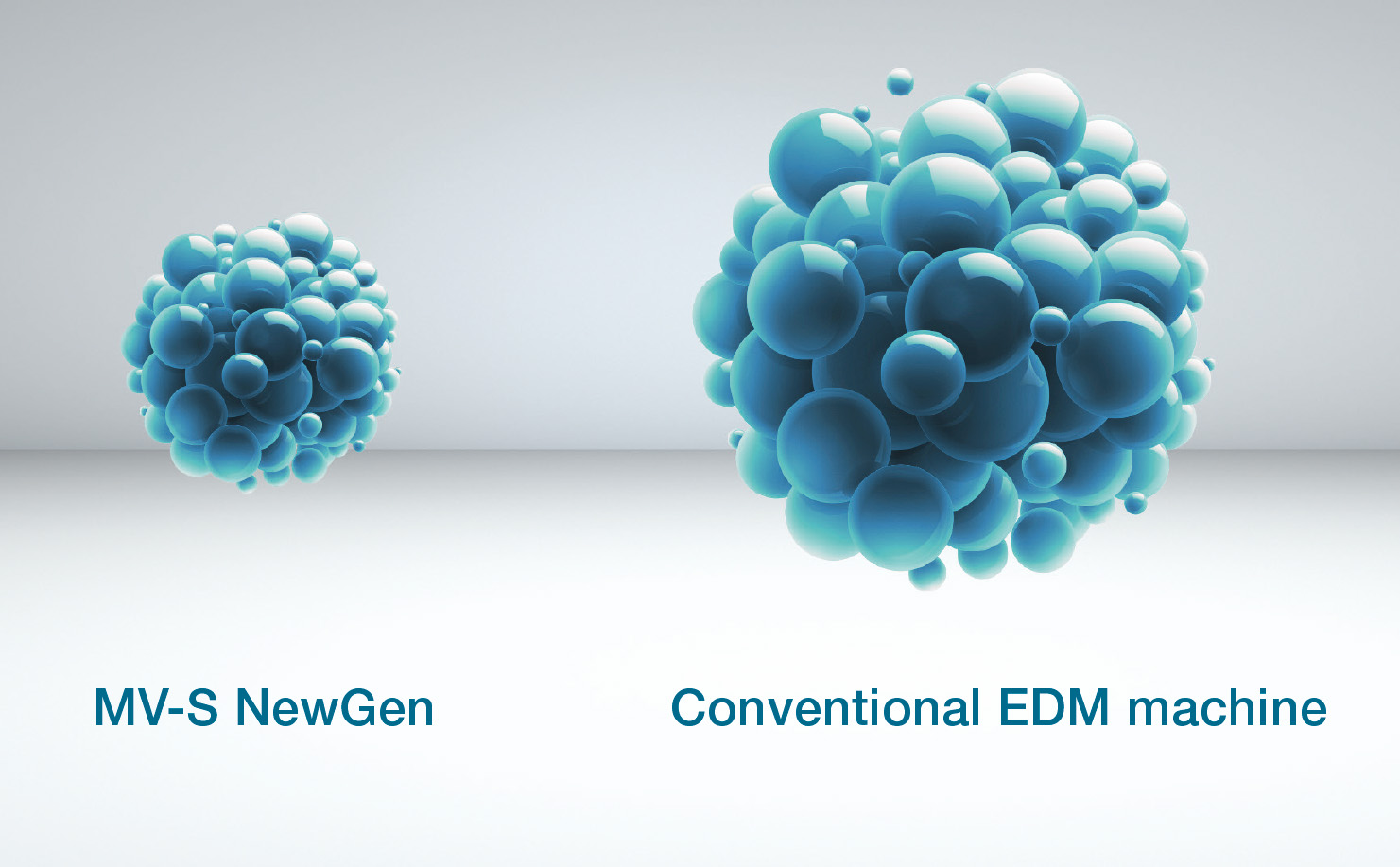

The MV-S series cuts expenditure on electricity, wire and filters considerably – so that you can earn more. The machine is designed for decades and has extra-low maintenance needs thanks to intelligent technologies.

Greater precision faster = lower piece costs.

MV-S NewGen
Conventional EDM machine
Time period (24 h day)
Productive wire cutting 10 h 32 min 14 h 06 min
Stand-by 1 h 9 h 54 min
Sleep Mode without wire cutting 12 h 28 min –
Energy consumption in kWh
Productive energy consumption 51.07 113.36
Energy consumption without wire cutting 32.38 65.34
Deactivating Sleep Mode 2.32 –

Features in this category

An EDM system must help your company to make ­money.
Greater precision faster = lower piece costs.

Technology

Wire break point insertion even on thick and ­interrupted workpieces.

The time-consuming return to the starting point is omitted – and machining continues where it left off, thanks to the highly advanced wire annealing system. Depending on machining conditions, threading can be successfully performed with or without jet stream and even submerged – depending on workpiece thickness.

Extra precision and speed thanks to the generator that not only thinks, but also thinks ahead.

If you want to achieve better surface quality with fewer ­recuts, you need the right blend of mutually adapted technologies. With Precise Finish Circuit, you achieve more ­precise results faster.

Wire break point insertion even on thick and ­interrupted workpieces

The time-consuming return to the starting point is omitted – and machining continues where it left off, thanks to the highly advanced wire annealing system. Depending on machining conditions, threading can be successfully performed with or without jet stream and even submerged – depending on workpiece thickness.

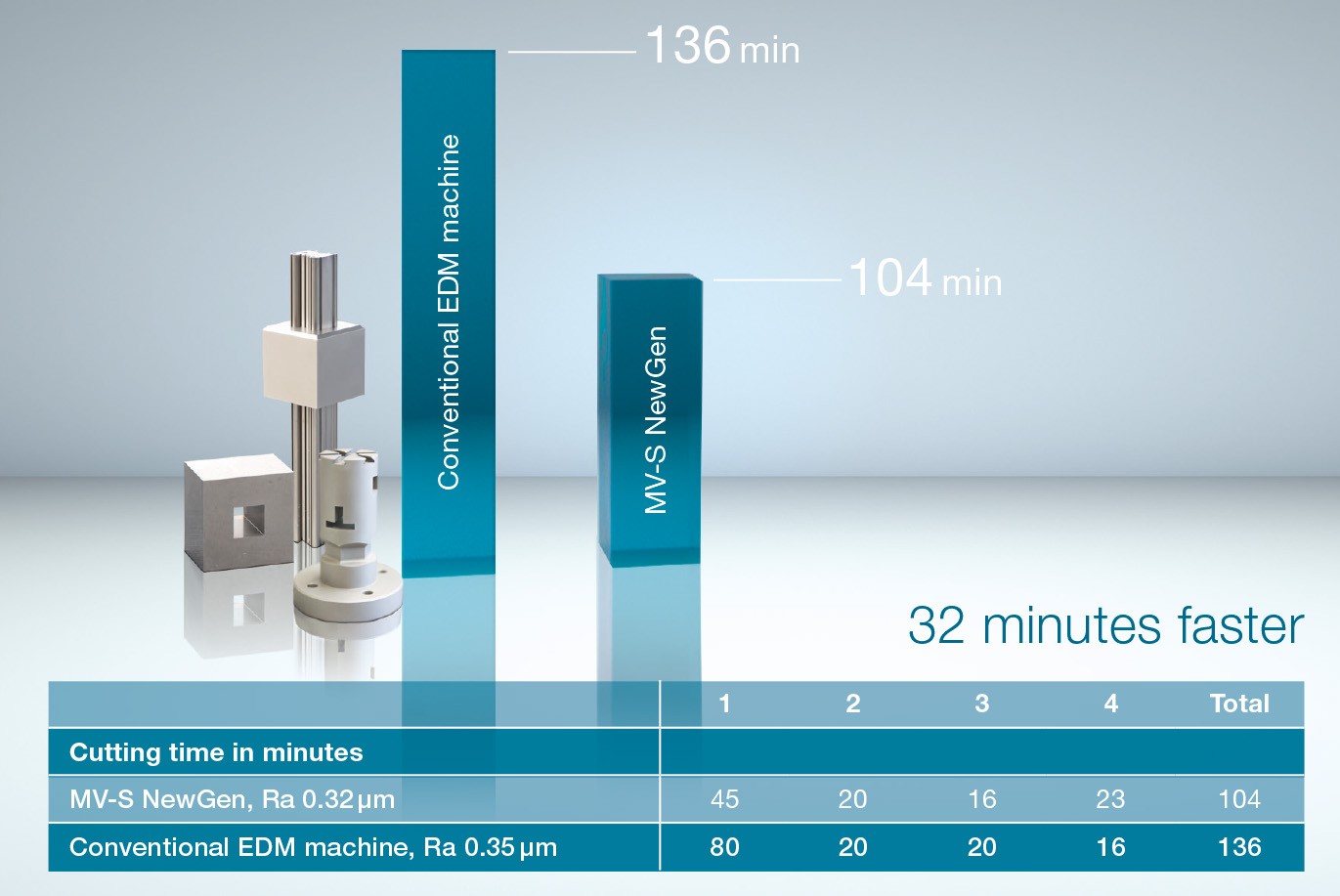

17 % faster multi-pass jobs

4 cuts of Ra 0.30 µm compared to a ­conventional machine.

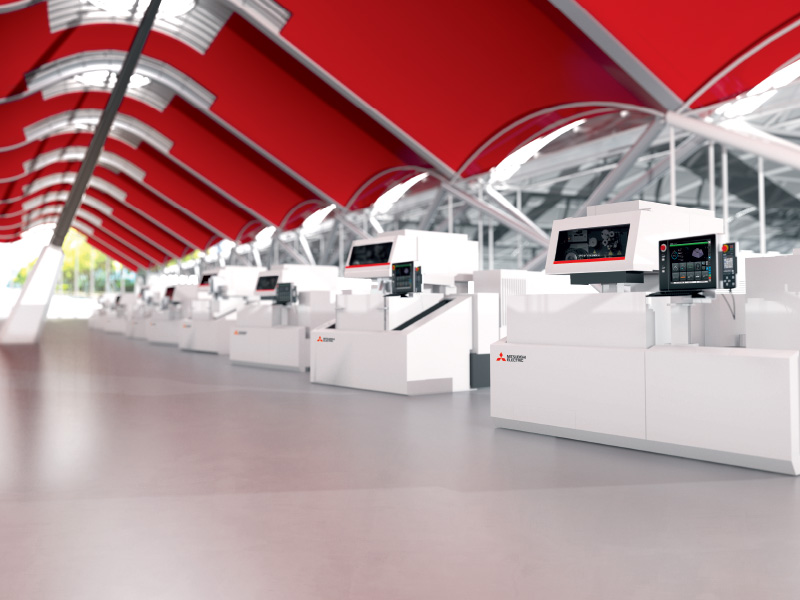

Greater speed and accuracy – and you save more.

Response time is decisive

An EDM machine that reacts with greater speed and precision achieves better surface quality faster. The new V350 generator has a significantly higher effective clock rate. The voltage is built up faster and with greater precision thanks to reduced capacitance loss. Thanks to faster voltage build-up, spark duration and working voltage can be lowered. All that you will probably notice is higher surface quality and lower power costs.

Process Control at its best – Power Master

The Power Master Control gives the most highest level of process stability – whatever the shape being cut. Stepped workpiece shapes, boreholes and other obstacles to a stable cutting process are identified as soon as they appear and the control adopts cutting and flushing parameters for a safe process and superlative accuracy.

Getting a grip on radii and corners

On small inner and outer corners and complicated geometries, Corner Master 3 comes to your aid. You merely define your priorities, and optimisation is performed accordingly.

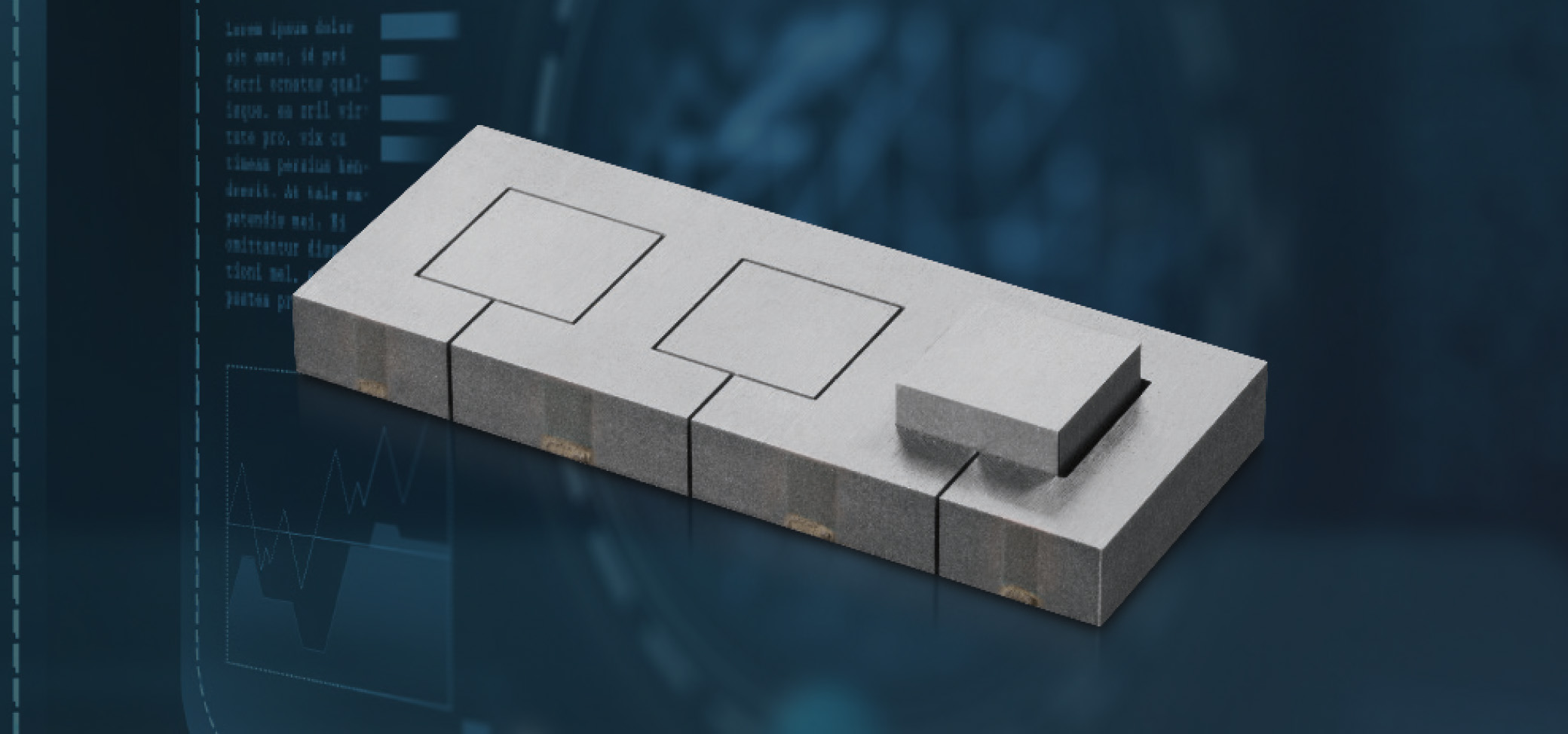

Intercepting the waste – fully automatically

During roughing, a bridge is controllably created to hold the waste material – the waste material cannot fall. In this way many features can be rough-machined and, after removal of the waste material, recut – fully automatically and unmanned, overnight and at weekends. Lower costs, higher profits.

Long-running jobs with multiple cut-outs

Jobs calling for a large number of shapes to be cut out of metal plate used to demand the toolmaker’s presence for several hours. The shapes had to be cut out of the plate, leaving a small rib. The toolmaker then pressed out the rib and removed the metal part from the tank. With the machines from Mitsubishi Electric, such tasks can now be handled as long-running projects overnight or at the weekend without any need for manual intervention.

Reducing machining time

During roughing, the EDM system separates the part from the waste, but after cutting joins them together again with one or more dot welds. After this, the waste pieces can be removed from the workpiece and collected. The machining programme can then be resumed. On long-running jobs with multiple cut-outs, machine running time is therefore considerably reduced.

Features in this category

Wire break point insertion even on thick and ­interrupted workpieces.
Extra precision and speed thanks to the generator that not only thinks, but also thinks ahead.
Wire break point insertion even on thick and ­interrupted workpieces
17 % faster multi-pass jobs
Greater speed and accuracy – and you save more.
Process Control at its best – Power Master
Getting a grip on radii and corners
Intercepting the waste – fully automatically
Long-running jobs with multiple cut-outs
Reducing machining time

Show more features

Control

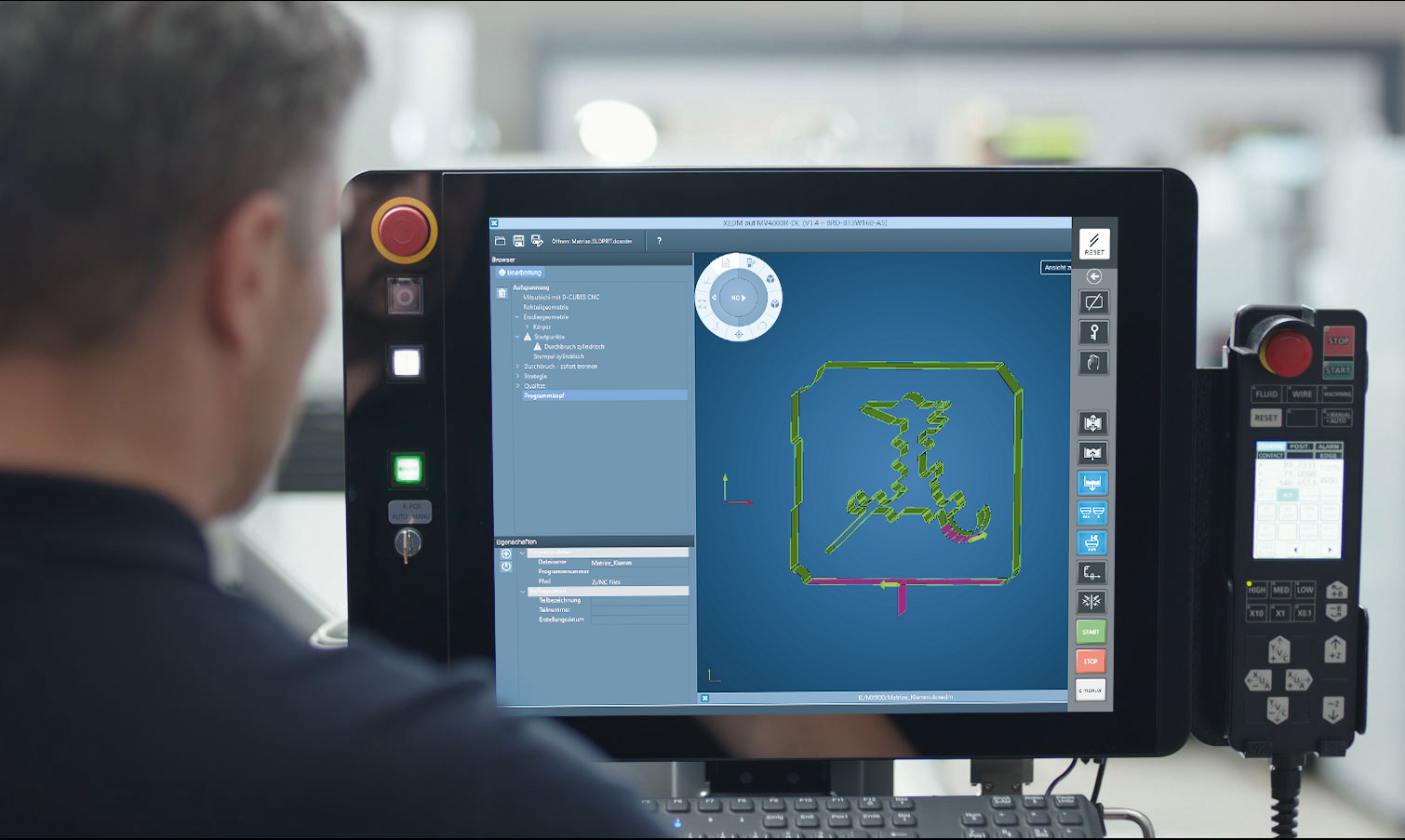

Intuitive operation – for the benefit of the ­machine operator.

The user interface is child’s play to handle – gesture con­trol inclusive. While some choose dialogue-supported user guidance, others opt for professional mode to get off to a speedy start. The control adapts to the user.

Intelligent D-CUBES control

… simply shifts the future into the present. The user has almost half a metre of user interface to work with, assisted in this by the mouse and the usual computer keyboard. The monitoring of the machin­ing process generates neatly displayed information at a glance and detailed analysis where desired.

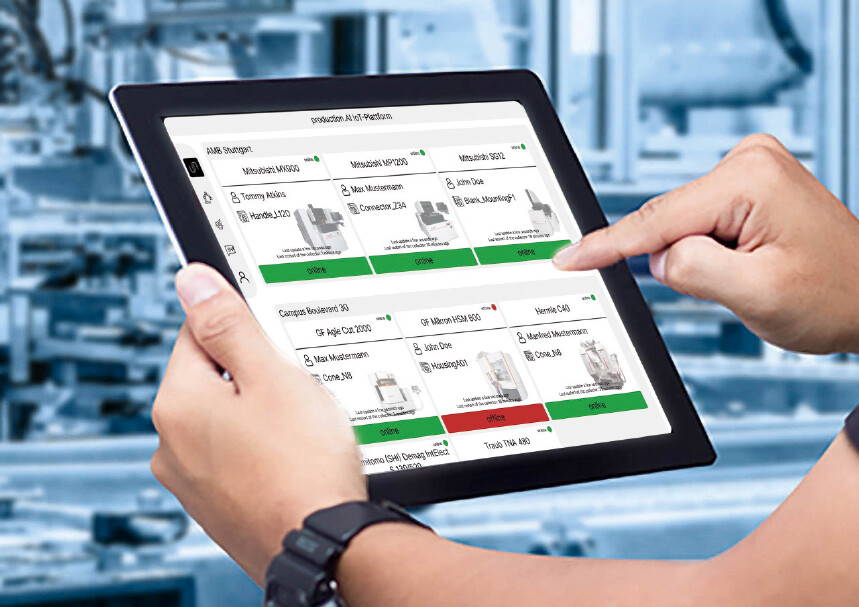

Network for productivity

All the critical data can be conveniently retrieved ­through the ERP system. The controller supplies all relevant operational data for further external use – as a standard function. Important interfaces such as Ethernet TCP/IP are of course part of the package.

Slim ergonomic manual control box

The ergonomically designed, intelligent manual control box unites all the relevant functions for control and set-up in a single unit. The integrated LCD display can be individually configured by the operator. Inclusive of buttons for driving all 8 possible CNC axes.

Multi-touch display with gesture control

Intuitive operation from the large screen with modern gesture control boosts comfort, while the configura­ble user interface supports the user by allowing the main functional elements to be freely arranged dur­ing daily work.

An easy start thanks to dialogue guidance

With step-by-step dialogue guidance, less experi­enced users are piloted through the entire process, from programming through to the start of machin­ing. Checklists make it possible to review all process-­relevant settings and machine states so that machining yields the best-possible results without ­interruption.

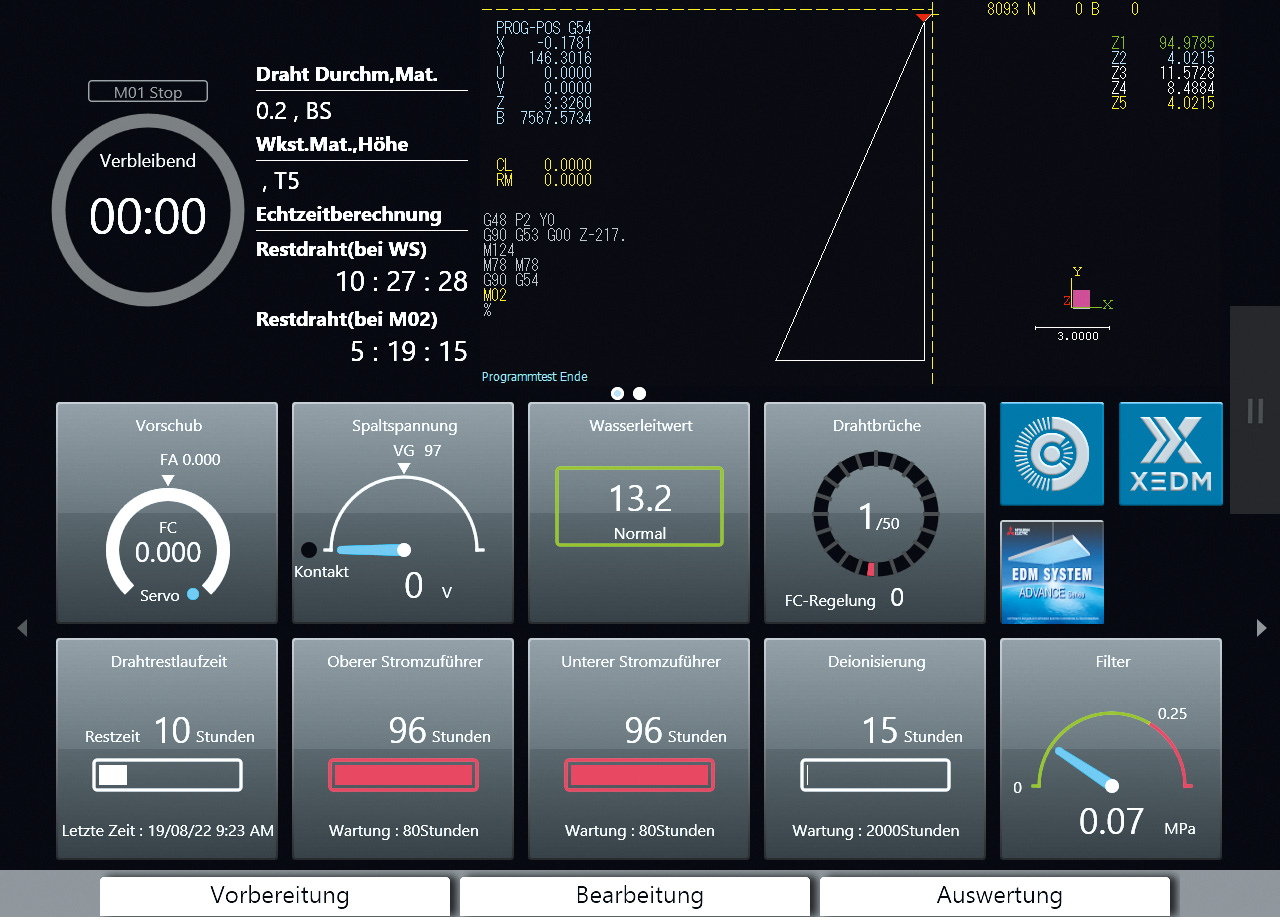

Everything at a glance

The easy-to-grasp display of all the key machining parameters in configurable form keeps everything under control at all times. Clearly visible at a glance are – if desired – machining status, elapsed times, state of maintenance and other data. Configuration couldn’t be simpler.

Work scheduling – at the machine

During the preparation of pending machining tasks, support is provided by overviews of the remaining wire, state of filter cartridges and deionisation ­resin, and other parameters. This way you can prevent ­outages caused by finite consumables or wear parts and optimise machine running times.

Help at a keystroke

The complete machine documents inclusive of maintenance instructions are always available, and the right help is quickly found. Comprehensibility is aided by photos and 3D depiction.

Clamp it and press Start!

If time is of the essence or you want the machines to take some of the work off your shoulders. Set-up often takes too long; from now on, you can save this time.

Highly accurate probing cycles on the sides and ­corners measure the workpiece precisely. With or without jet stream or even submerged, by means of the cutting wire or with the optional 3D touch probe – just as you wish.

Fully automatic alignment cycles

Intelligent user guidance takes you to the finish. The electrical discharge machine takes you quickly to your goal.

Manual control

Comfortable set-up with the manual control box: standard equipment with Mitsubishi Electric. All essential control functions at hand – wherever you need them.

3D position measuring – manual or automatic

Both are possible. As a user, you decide whether you do set-up classically by hand or the machine automatically defines the position of your workpiece. Using the cutting wire or pick-up coil – the machine takes care of it for you. It only takes the press of a button.

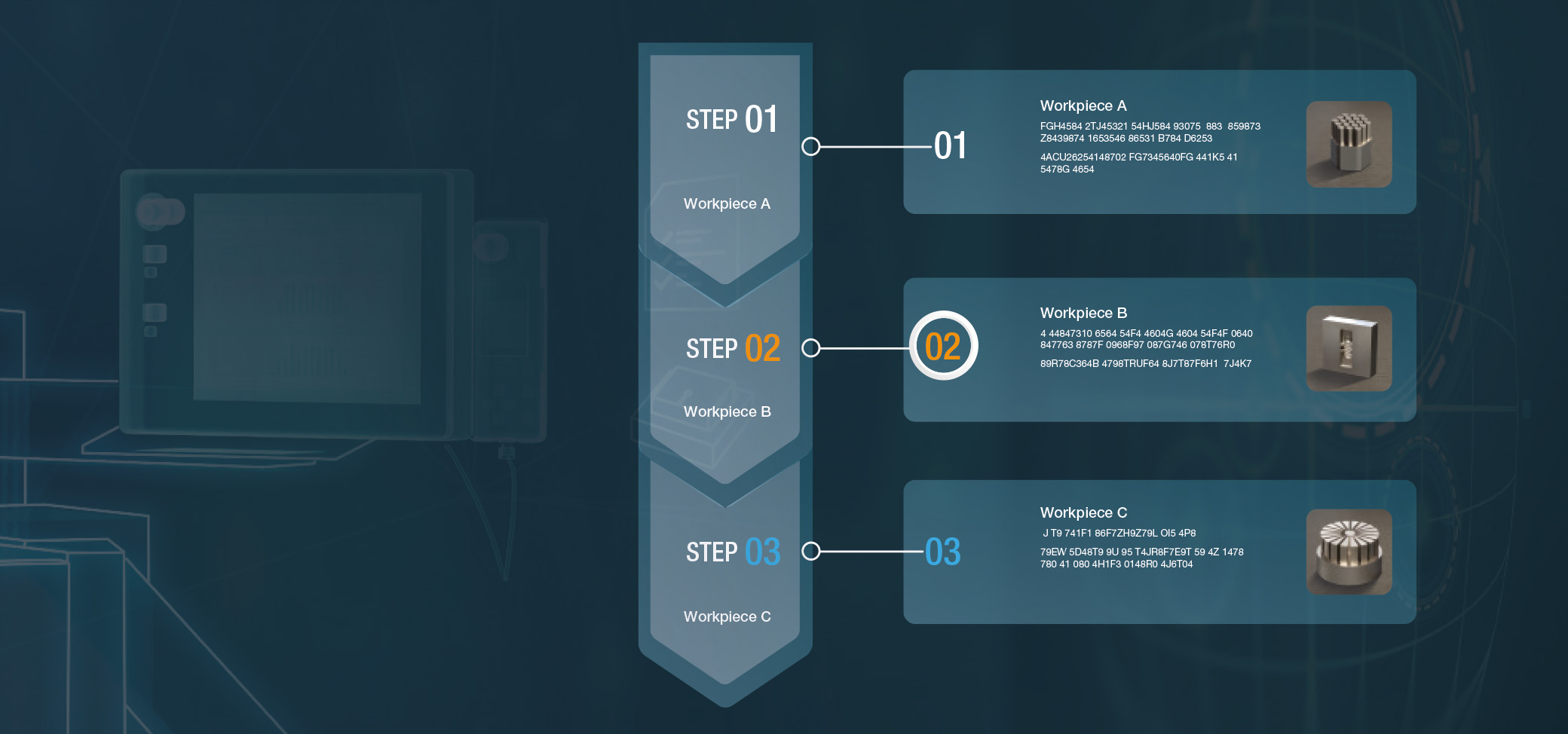

Integrated job scheduling

Greater flexibility thanks to adaptable job scheduling: with the simple assignment of priorities, you can quickly respond to changing requirements and squeeze in an urgently needed part with ease. ­Several machining programs can be deposited in the job scheduler and managed there.

Fast and flexible work planning

This is the easy way to add new jobs during machin­ing or change the order of existing machining op­er­ations. The new job processing system with priority management makes it possible to amend a machin­ing list without interrupting machining.

Pause a job – and resume

A machining process is easy to pause even in mid-flow when urgent jobs have to be processed. The control stores the current state of machining. When the inserted job has been completed, machining can be immediately resumed at the point of interruption. Pushbutton flexibility without programming effort.

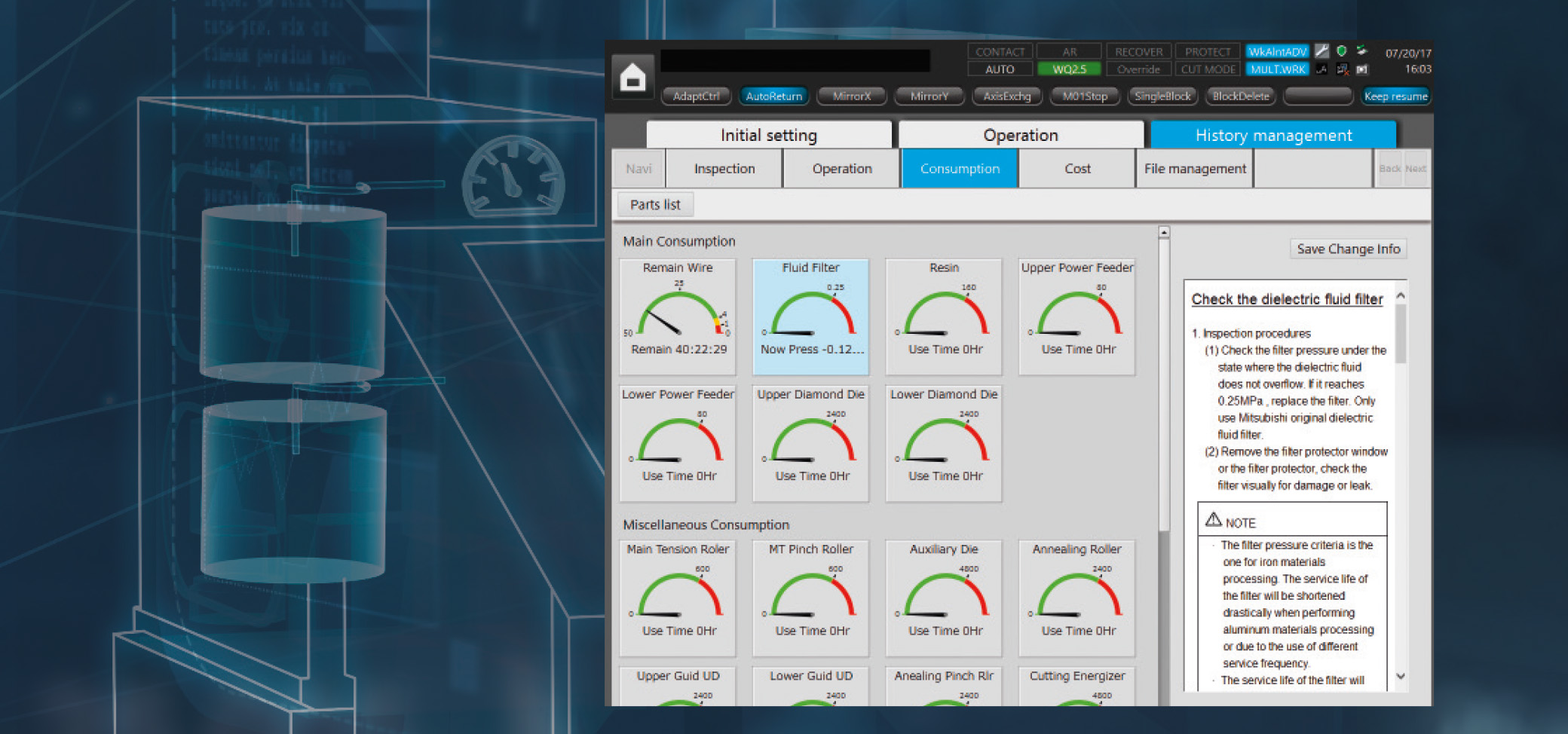

Far-sighted maintenance management

All the key consumables are monitored online and presented with their anticipated remaining life. This includes display of the remaining life of the wire spool installed in the machine as well as indication of filter pressure and, calculated from this, the prob­able period until the next filter change.

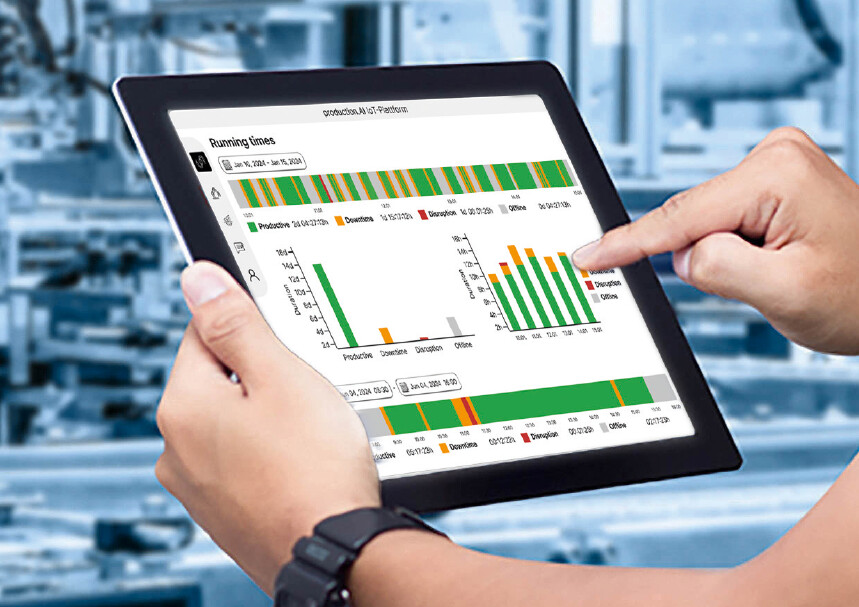

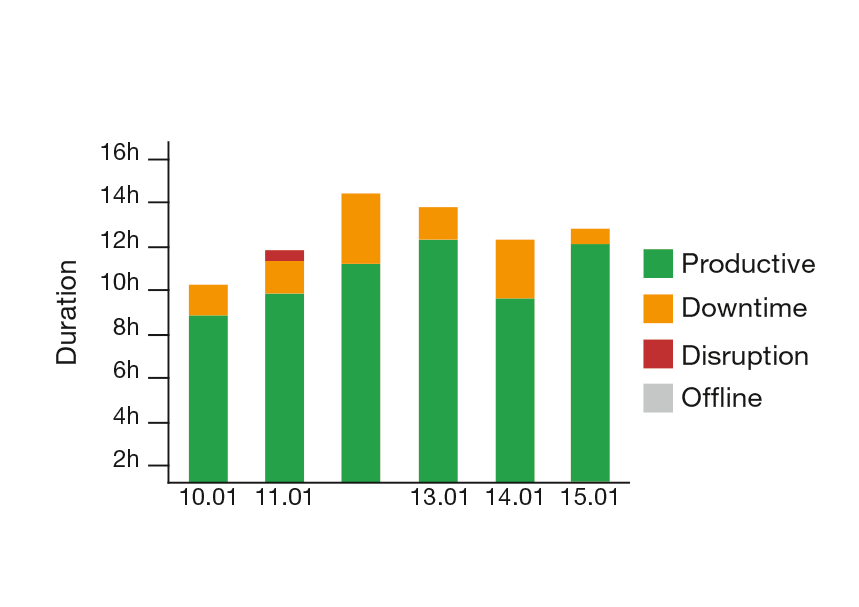

Visual process management

Machine states depicted over time make capacity utilisation easier to grasp and assist forward-looking production planning. This overview is supplemented by a list of completed machining jobs and the associated machine times and unit costs.

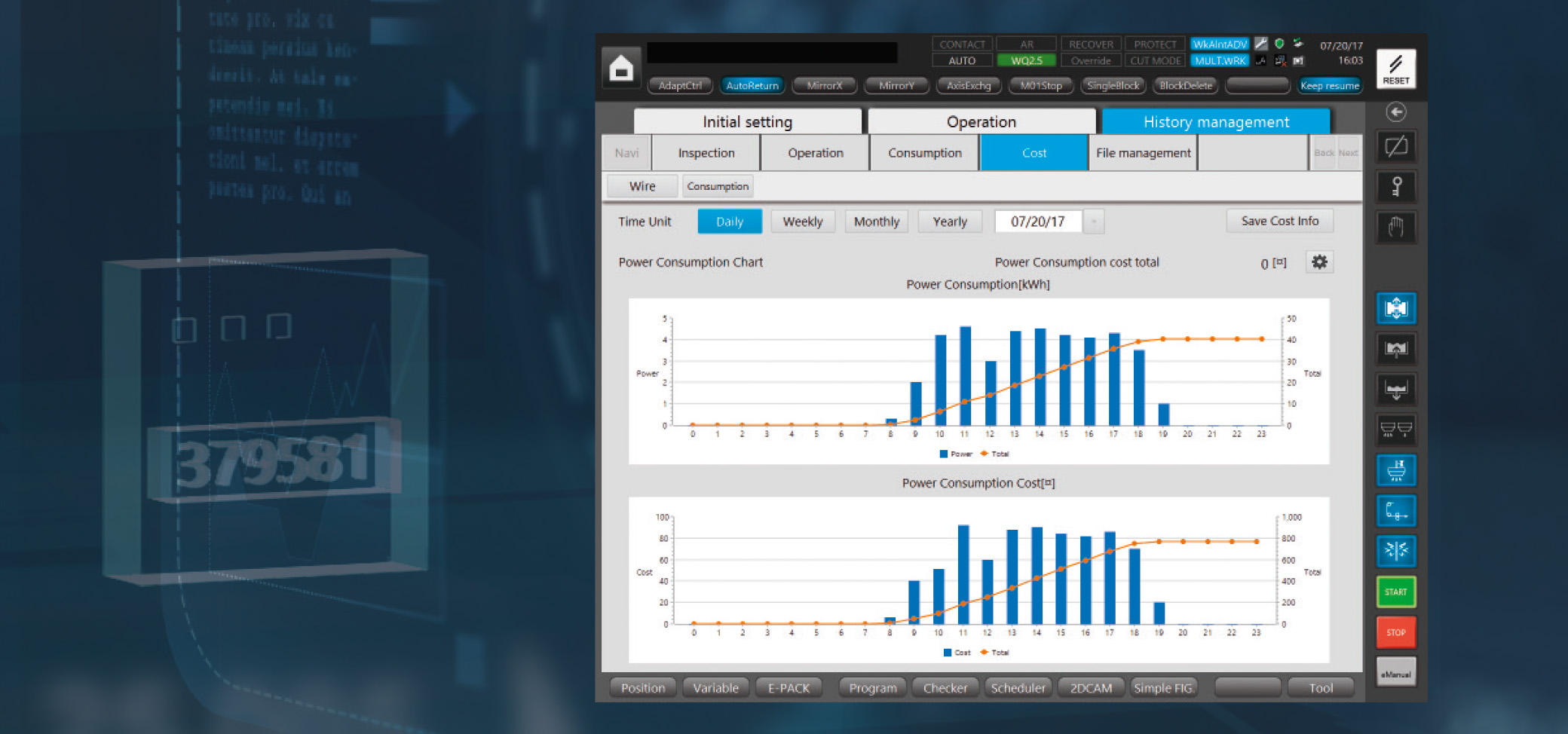

Analysis of operating costs

Given knowledge of unit costs and their inclusion in the machine’s own analysis, records of consumption data such as energy consumption, wire consumption and component wear help with cost analysis and the costing of pending machining jobs.

After-sales service online

Rapid online help to reduce downtime and expenditure on service assignments. Applications support with ­direct access to the machine control can provide the machine operator with optimum and rapid assistance when faced with difficult tasks. All in the aid of improving production operations.

Process data management

Operating and process data can be retrieved at the control. Available as standard is an export function for all process data, operating states, con­sumption data and maintenance states as well as alarms. This way the data from several machines can be viewed and evaluated in consolidated form, through to their integration in higher-order production man­agement systems.

No compromising on security

Anti-virus protection is ensured as standard by one of the world’s leading software systems in security control.

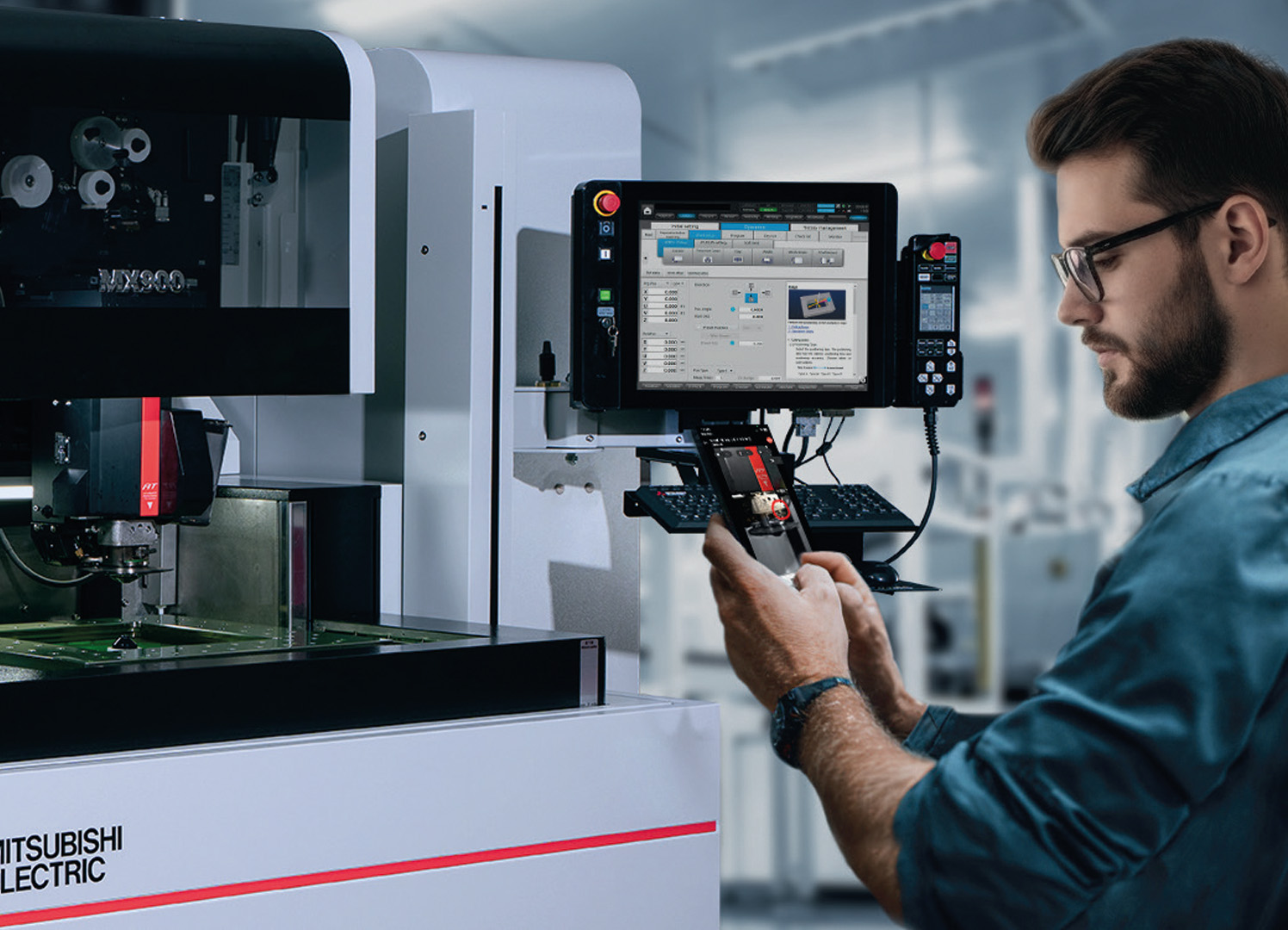

Always up to date – wherever you are.

You can control the machine and keep an eye on processes, wherever you are. ­Intelligent communication takes the pressure out of work. Ideal combined with automation solutions and high process autonomy with the intelligent AT wire threader.

mcAnywhere Service
Rapid help from Mitsubishi Electric experts.

mcAnywhere Control
Comfortable and reliable remote control for your EDM system – powered by TeamViewer.

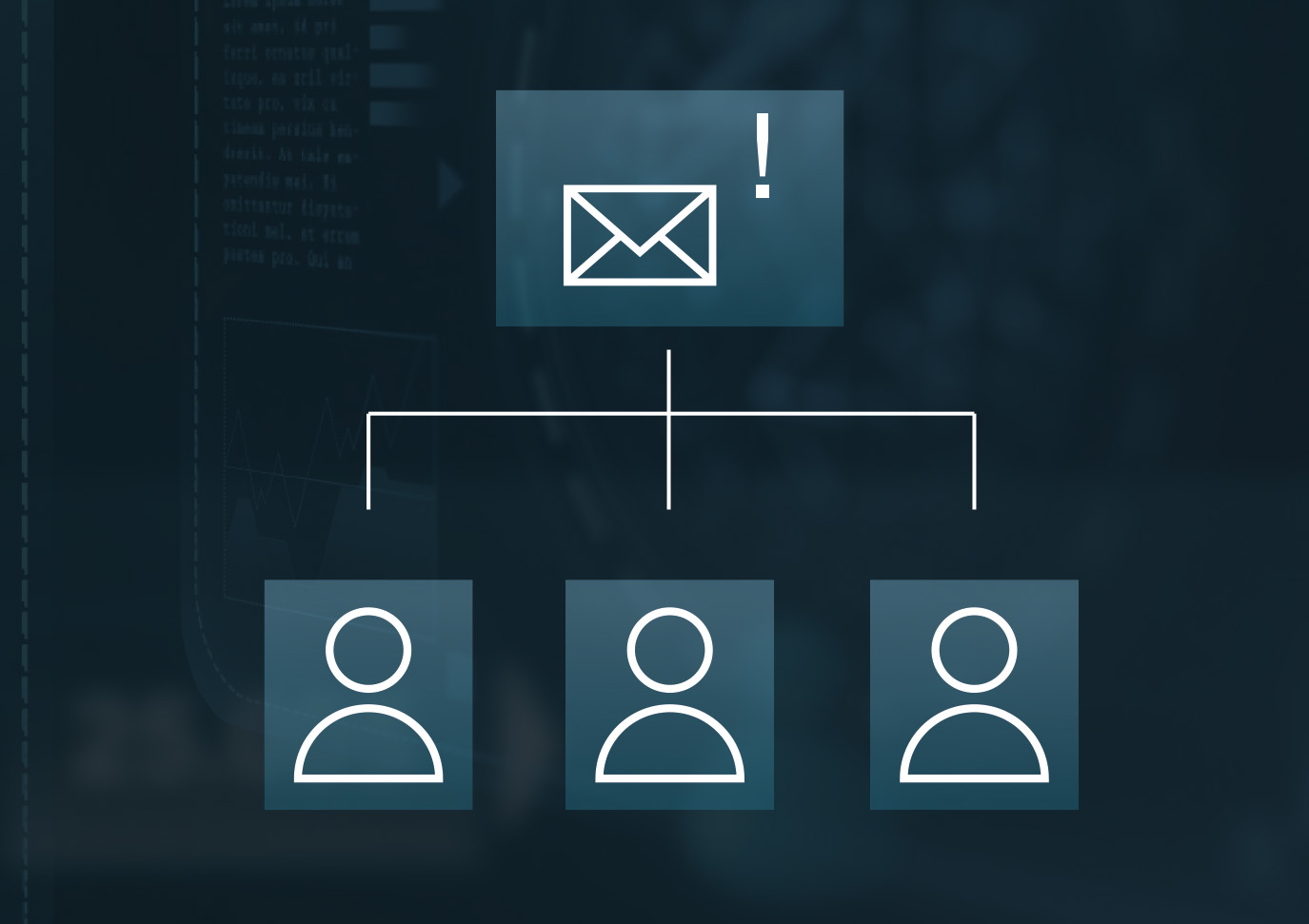

mcAnywhere Contact+
Any time, any place … you’re always up to date with direct status reports by email. Status reports can be optionally sent by text message – a GSM modem with a suitable driver can be added for this.

Features in this category

Intuitive operation – for the benefit of the ­machine operator.
Intelligent D-CUBES control
Network for productivity
Slim ergonomic manual control box
Multi-touch display with gesture control
An easy start thanks to dialogue guidance
Everything at a glance
Work scheduling – at the machine
Help at a keystroke
Clamp it and press Start!
Fully automatic alignment cycles
Manual control
3D position measuring – manual or automatic
Integrated job scheduling
Fast and flexible work planning
Pause a job – and resume
Far-sighted maintenance management
Visual process management
Analysis of operating costs
After-sales service online
Process data management
No compromising on security
Always up to date – wherever you are.

Show more features

Equipment options

Customised extension. The intelligent solution.

Automatic water top-up
Intelligent, continuous monitoring of the process water level and fully automatic top-up as required*

Connection to external cooling system
Precise temperature control thanks to microprocessor-controlled connection to a central cooling system**

Automatic filter switchover
Two pairs of filters can be optionally used together in the process or, when one pair of filters reaches its maximum pressure, the system switches over automatically to the second pair

* Requires a connection to a water supply
** Requires a central cooling system available on customer site

3D probing

Mounted on the machine head, activated on ­command. The intelligent solution.

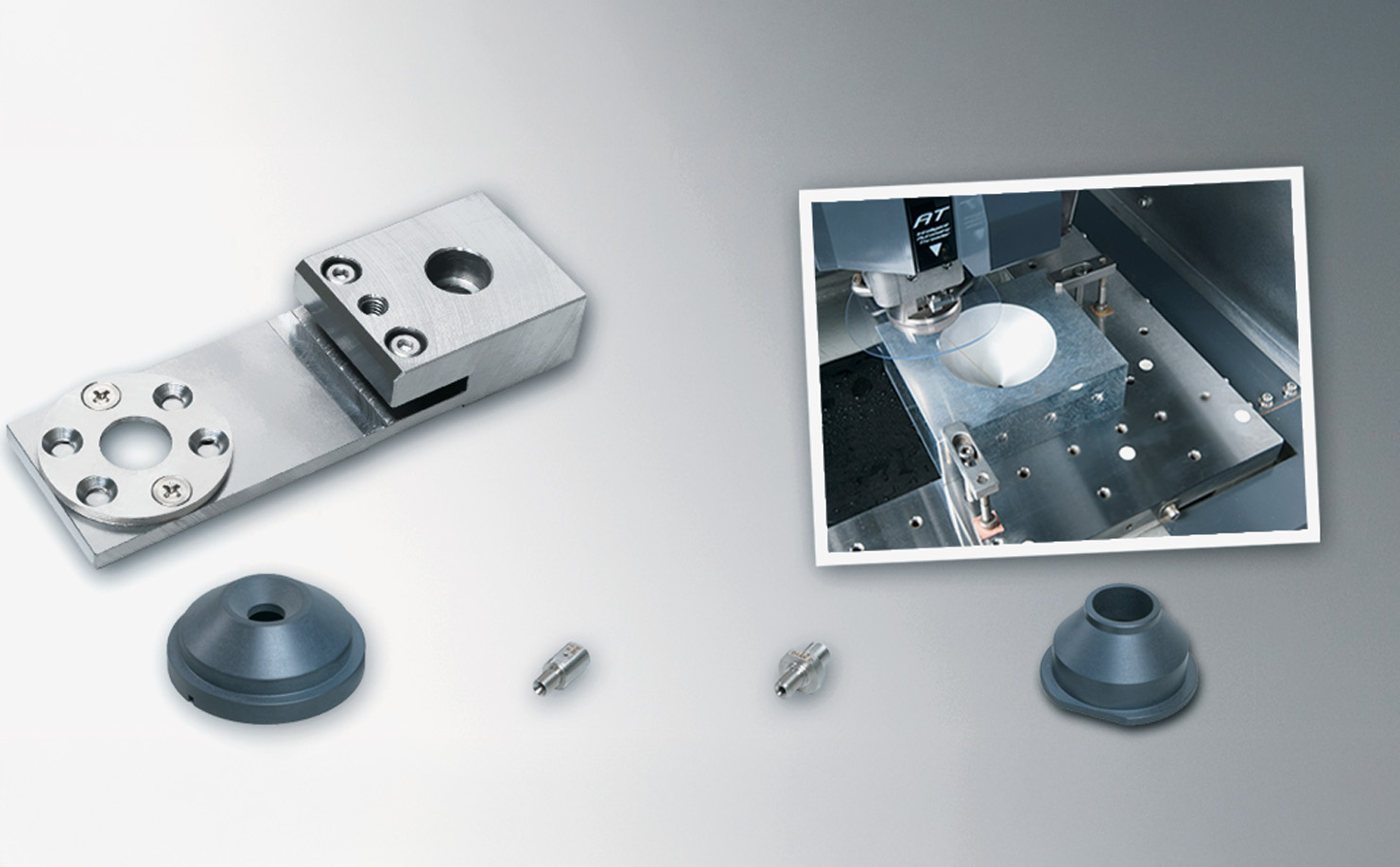

Angle Master Advance II

Special wire guide and sequential calculation of the wire set-up point for precision angles.

ERGO-LUX (machine lights)

Working conditions that are kind to your eyes – for the sake of users and for the benefit of machining results.

Tool package

Complete kit for the machining of rotationally ­symmetrical tools with PCD or CBN cutting edges.

16/20/25 kg wire station

Accommodates large wire spools with ease.
(Standard equipment on the MV4800S)

Warning lamp

Machine status is visible from a distance.

B-axis

A servo-controlled B-axis fully integrated in the machine controls permits wire cutting on a rotating carried workpiece. Separation and multi-sided machining can be per­formed in a single clamping as well as simultaneously.

Rotary swivel axis

Machining cones to the highest standards of precision: the rotational/swivel axis integrated in the machine controls. Multi-axis machining to the centre of the workpiece and multi-sided machin­ing in a single clamping, plus the real­isation of high-precision conical polygons.

Mini-rotational axis

Rotating spindle fully integrated in the machine control with positioning for the most minute high-precision components, e.g. the manufacture of ejector pins with a diameter of ≥ 0.05 mm, the realisation of conical threads in medical technology, ero­sive grinding, turning and simultaneous machining.

Rotational machining

Can be used for reliable indexing and simultaneous machining as well as high-speed rotation (EDM grinding): the servo-controlled rotational ma­chin­ing fully integrated in the machine controls. Discover new production scope!

Features in this category

Customised extension. The intelligent solution.
3D probing
Angle Master Advance II
ERGO-LUX (machine lights)
Tool package
16/20/25 kg wire station
Warning lamp
B-axis
Rotary swivel axis
Mini-rotational axis
Rotational machining

Show more features

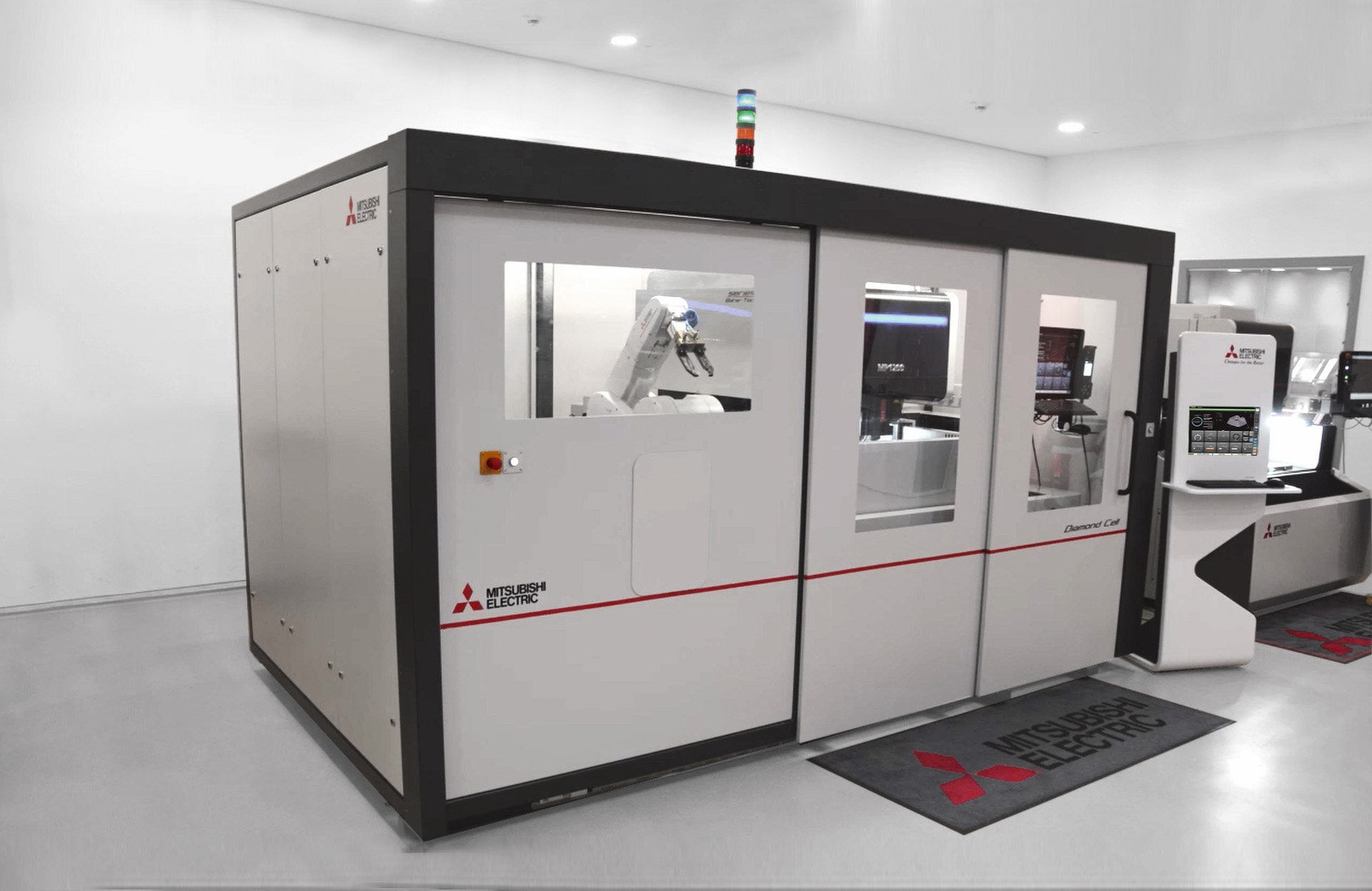

Automation

Automation has to be flexible. Reconciling different brands.

Optimum solutions – customised, configured or standardised

The handling systems and robots from different manufacturers can often be seamlessly integrated. Renowned for their dependability and productivity, the EDMs of the MV-S series from Mitsubishi Electric are automation-ready. We’d be happy to show you examples that have proven effective in practice and help you to cut costs and boost your productive capacity.

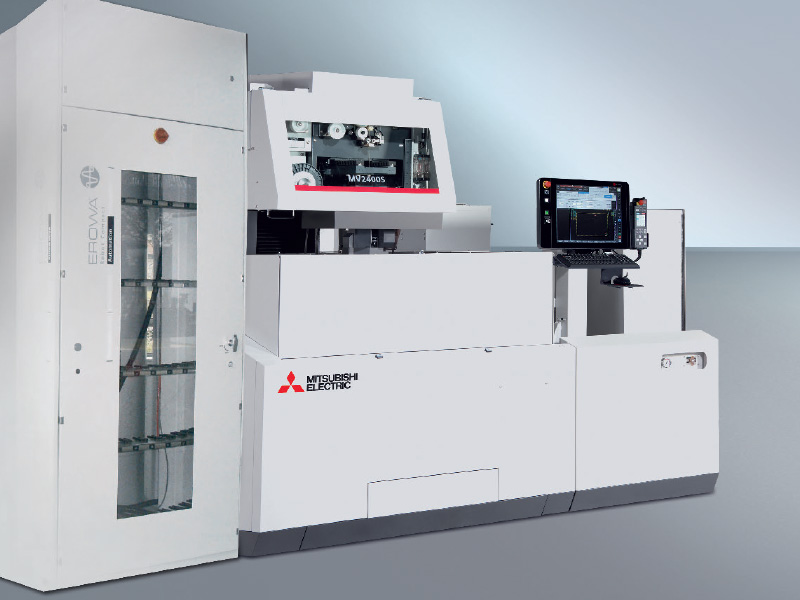

Handling equipment from different manufacturers

Handling equipment from different manufacturers – welcome and easily integrated.

Flexible solutions

Flexible solution: articulated-arm robot up to 15 kg of Mitsubishi Electric quality.

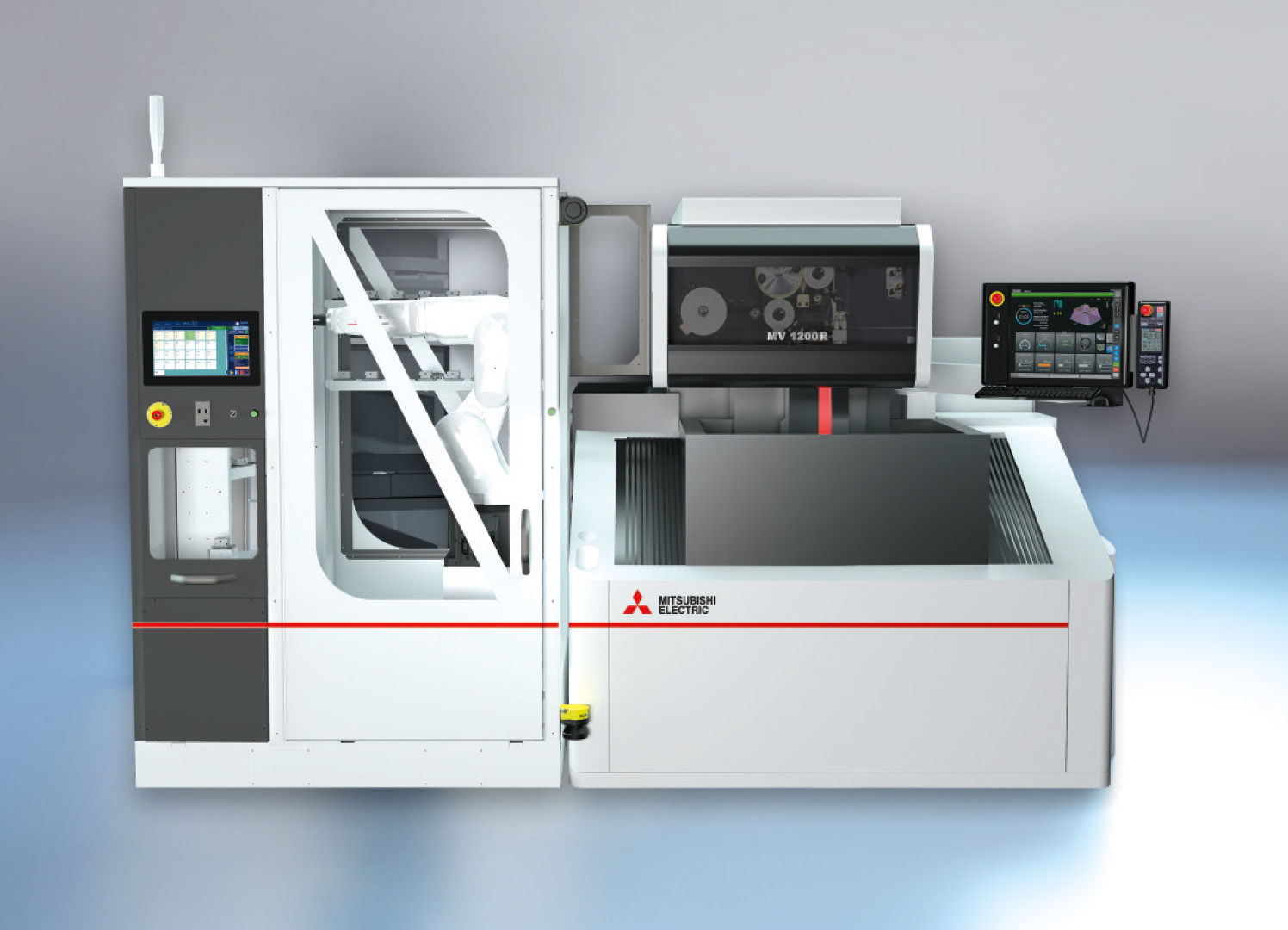

Automated integration

Automated integration – here with ZK Chameleon.

Features in this category

Automation has to be flexible. Reconciling different brands.
Handling equipment from different manufacturers
Flexible solutions
Automated integration

Show more features

Specifications

MachineMV1200SMV2400SMV2400S Z+ MV4800S
Travel (X / Y / Z) in mm 400 / 300 / 220 600 / 400 / 310600 / 400 / 425800 / 600 / 510
Travel (U / V) in mm 120 / 120 (+/- 60)150 / 150 (+/-75) 150 / 150 (+/-75)200 / 200 (+/-100)
Taper angle (workpiece height) in °/mm 15 / 200  30 / 87 15 / 260  30 / 110 15 / 260  30 / 110 15 / 355  30 / 155
Max. workpiece dimensions (W x D x H) in mm 810 x 700 x 215 1050 x 820 x 305 1050 x 820 x 420 1250 x 1020 x 505
Max. workpiece weight in kg 500150015003000
Table dimensions (W x D) in mm 640 x 450840 x 560840 x 640 1080 x 780
Table layout Hardened three-sided tableHardened four-sided frame tableHardened four-sided table
Possible wire diameters in mm 0.1–0.30.15–0.3
Wire spool capacity in kg 1010 / 16 / 20 / 25
Automatic wire threader / wire chopperYes / Yes
Overall dimensions (W x D x H) in mm 2025 x 2760 x 20152687 x 3030 x 21502837 x 3452 x 23803130 x 3475 x 2815
Machine weight in kg 2700 3500 3650 5700
Mains voltage 3-phase 400 V/AC ± 10%, 50/60 Hz, 13 kVA
Filter systemMV1200SMV2400SMV2400S Z+MV4800S
Tank capacity in l5508609801480
Filter particle size in µm / filter elements 3/2
Temperature control Dielectric cooling unit
Weight (dry) in kgIncluded in machine weight350390 450
GeneratorMV1200SMV2400S MV2400S Z+MV4800S
Power supply unit Regenerative transistor pulse type
Cooling method Fully sealed /indirect air cooling
Max. output current in A 50
Dimensions (W x D x H) in mm 600 x 650 x 1765
Weight in kg 240
ControlMV1200SMV2400SMV2400S Z+MV4800S
Input methodKeyboard, USB flash drive, Ethernet, 19” touchscreen
Control systemCNC, closed circuit
Min. command step (X / Y / Z / U / V) in µm0.1
Min. axis resolution in µm 0.05
EquipmentMV1200SMV2400SMV2400S Z+MV4800S
Tubular Shaft Drives with linear scales (X / Y) Yes
Control M800 with 19” full-touch monitor Yes
Hand pilot with configurable LCD monitor Yes
Vertical front door ManualAutomatic
Digital AE II generator Yes
Ethernet/DNC/FTP Yes
Preparation for automation Optional
McAfee AntiVirus embedded Optional
Production data output Optional
2D CamMagic on-board Yes
Corehold technology Optional
Job scheduler Optional
Sleep mode Yes
Optional HardwareMV1200S MV2400S MV2400S Z+ MV4800S

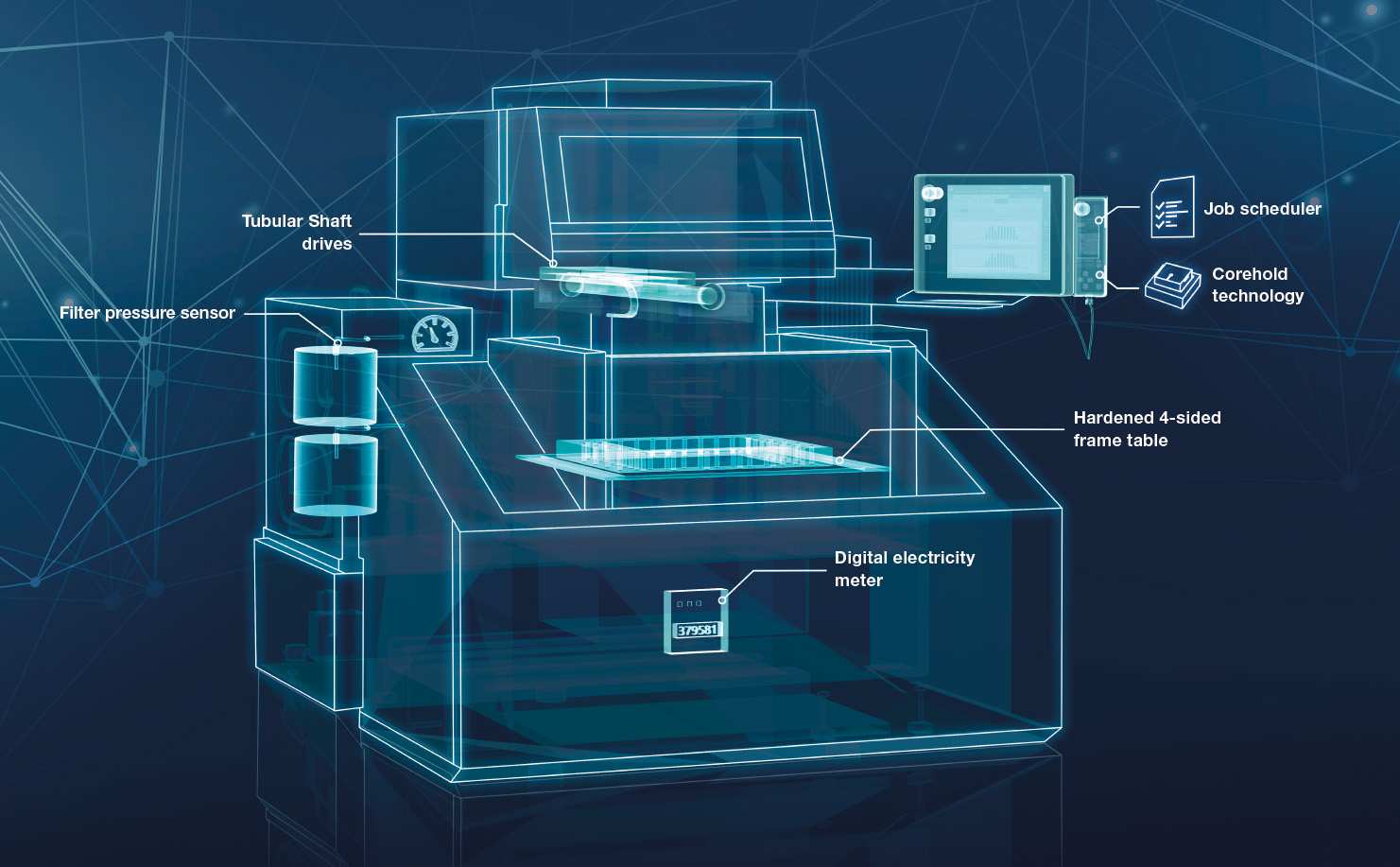

High-Spec packageOptional (not retrofittable)
Wire station for 16 / 20 / 25 kg wire spools OptionalYes
Wire station for 50 kg wire spools Optional
Angle Master Advance II – basic kit including aligning device Optional
Angle Master Advance II – wire threading setOptional
Automatic Renishaw probe on sleeve Optional
ERGO-LUX LED floodlightsOptional
Tricolour status lamp Optional
Automatic dielectric water refilling Optional
Connection to external cooling system Optional
External signal output with relay circuit board Optional
Automatic filter switching systemn/aOptionaln/aOptional
Optional ToolsMV1200SMV2400S MV2400S Z+MV4800S
Connect KitOptional

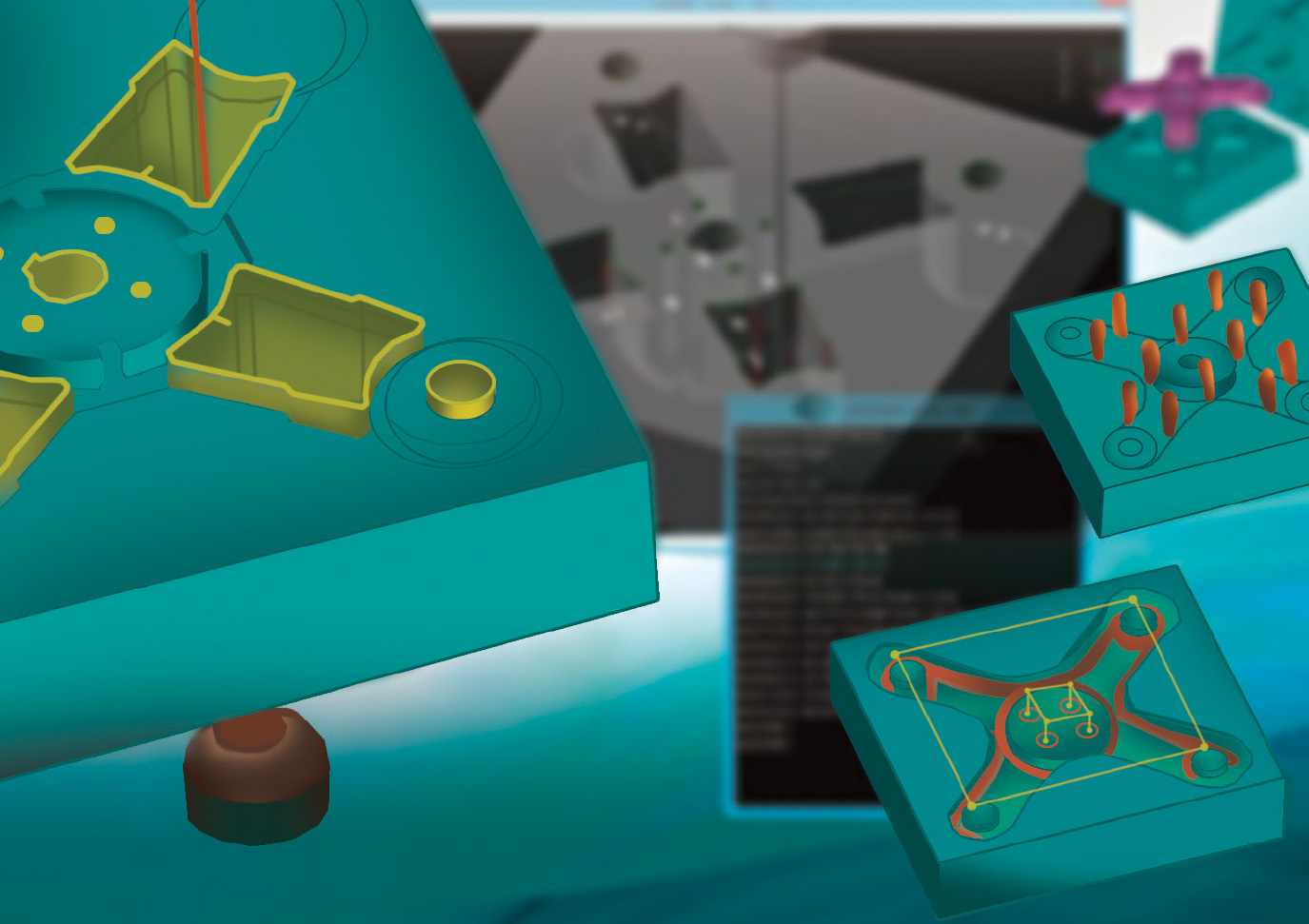

3D CamMagic on-boardOptional
mcAnywhere ServiceOptional
mcAnywhere Control/ mcAnywhere Control liteOptional
mcAnywhere Contact/ mcAnywhere Contact liteOptional
Tool package / automation solutions Optional

Power connection: 3-phase 400 V/AC, PE, ± 10%, 50/60 Hz, primary fuse 32 A slow

Pneumatic connection: 5–7 kgf/cm³, 500–700 kpa, minimum air flow rate 75 l/min, 3/8″ hose connection

The EDM system should be set up on a suitable hard industrial floor and preferably on a consolidated concrete floor. Any shielding that may be necessary in conformity with the EMC Directive is not included in the equipment supplied by Mitsubishi Electric.

The cooling unit contains fluorinated greenhouse gas R410A. For further information, please refer to the associated operating instructions.

MV-S Brochures

  • MV-S Brochure TR (7 MB)

  • MV-S Brochure HU (9 MB)

  • MV-S Brochure CZ (8 MB)

  • MV-S Brochure RU (7 MB)

  • MV-S Brochure PL (9 MB)

  • MV-S Brochure ES (8 MB)

  • MV-S Brochure IT (8 MB)

  • MV-S Brochure FR (8 MB)

  • MV-S Brochure EN (8 MB)

  • MV-S Brochure DE (8 MB)

MV-S Layout

  • MV4800S Layout (176 KB)

  • MV2400S Column Up Layout (85 KB)

  • MV2400S Layout (103 KB)

  • MV1200S Layout (90 KB)

MV-S Transport Drawing

  • MV4800S Transport Drawing (179 KB)

  • MV2400S Column Up Transport Drawing (183 KB)

  • MV2400S Transport Drawing (183 KB)

  • MV1200S Transport Drawing (260 KB)

Send us a Question

Fields marked with a * are mandatory.

Contact Us

Mitsubishi Electric Europe B.V.
German Branch
Mitsubishi-Electric-Platz 1
D - 40882 Ratingen

Sales
Tel.: +49 (0)2102 / 486 - 6120
edm.sales@meg.mee.com

Service
Tel.: +49 (0)2102 / 486 - 7600
edm.hotline@meg.mee.com

Applications
Tel.: +49 (0)2102 / 486 - 7700
edm.applikation@meg.mee.com

Spareparts
Tel.: +49 (0)2102 / 486 - 7500
edm.parts@meg.mee.com
