MP Series – High Accuracy

Power for Precision

read more

Power for Accuracy

The MP Series is made for very tight tolerances. It is one of the best Wire-EDM machines based on water. By using a complete body out of a strengthened meehanite-cast, we gain an improved stability. Highest grade linear guides from THK are responsible for less rolling resistance. Furthermore the machine head is included in the cooling system, which enables a better control of the temperature. As a result it is possible to reach even better accuracies compared to the MV series.

With a general pitch accuracy of +/- 1 µm, a typical roughness down to Ra 0.05 µm, even an angle precision of +/- 0,01° (36 sec.) and a perfect roundness the MP‘s can be used for the following production areas:

  • High Precision Mold & Die
  • Tools for Micro-Electronics
  • High Accuracy Medical Parts
  • Finest blanking
  • EDM Dress



Quickselect

Welcome to our quick navigation. Here you can directly select a topic that you are particularly interested in. You will then be directed to this topic.

Quick Facts

MP-SeriesXYZ
MP1200 ThumbnailMP1200400300220
MP2400600400310

Mechanical Engineering

Configured for precision

Configured for precision

The MP2400 comes with a fixed table for precision even in the event of high loads. The MP1200 has a split-axis design, with the table movable on the X axis, and the column on the Y axis – proven for max­imum precision with medium loads.

Perfect drive

Perfect drive

What was it about conventional drive systems that bothered developers at Mitsubishi Electric? The need for lubrication, the friction and frictional heat, power consumption, backlash, the cogging moment and above all the possible wear. Only a non-­contact drive overcomes these drawbacks from the outset and is thus an assurance of better results and enhanced dependability over decades.

Durable hardened stainless steel table

Durable hardened stainless steel table

The four-sided table is insensitive to dielectric and sludge for decades. High-grade stainless steel ­components and the stainless steel work tank ensure dependability and maintenance-freedom.

The Tubular Shaft Motor

The Tubular Shaft Motor

The Tubular Shaft Motor converts energy directly into motion, without contact, without maintenance and above all without loss of precision – long-term. Combined with the 400 % faster fibre-optic-­based control, this superior technology can truly show what it is capable of.

The 12-year genuine manufacturer warranty on positioning accuracy is a guarantee of top-level durability.

Your company’s technological edge has a name: ­Tubular Shaft Motor – from world market leader ­Mitsubishi Electric.

Find our more about it here:
www.mitsubishi-edm.de/tsm

The speed of light...

The speed of light...

…for communication by fibre optics.

The Tubular Shaft Motor with its highly responsive control fully exploits the benefits of high communication speed. No heat, no maintenance and no contact – just extra precision for good. At Mitsubishi Electric, this is known as “Changes for the Better”.

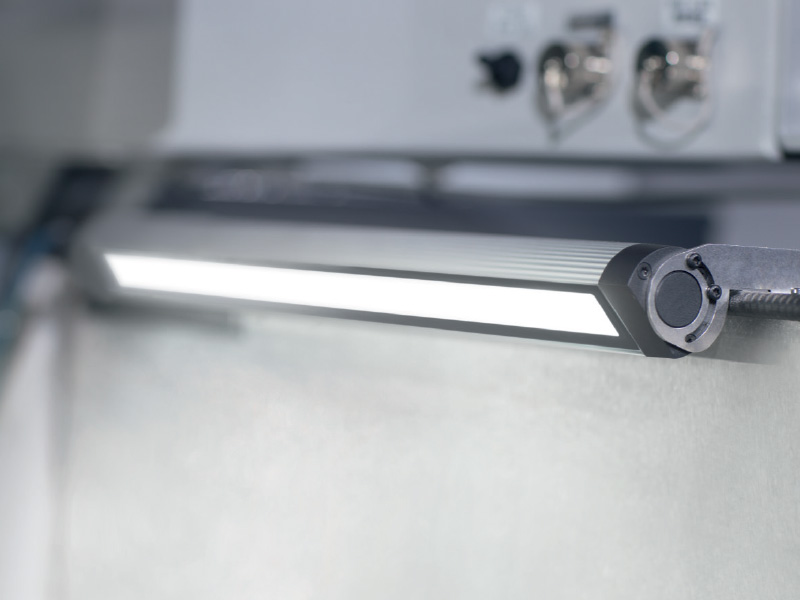

Focus on ergonomics

Focus on ergonomics

Set-up, programming, maintenance etc. – all the key elements are directly accessible at the front of the machine. The entire wire feed, automatic wire thread­­ing and wire guide heads plus the whole workspace are readily accessible – not least thanks to the open design and automatic vertical sliding door.

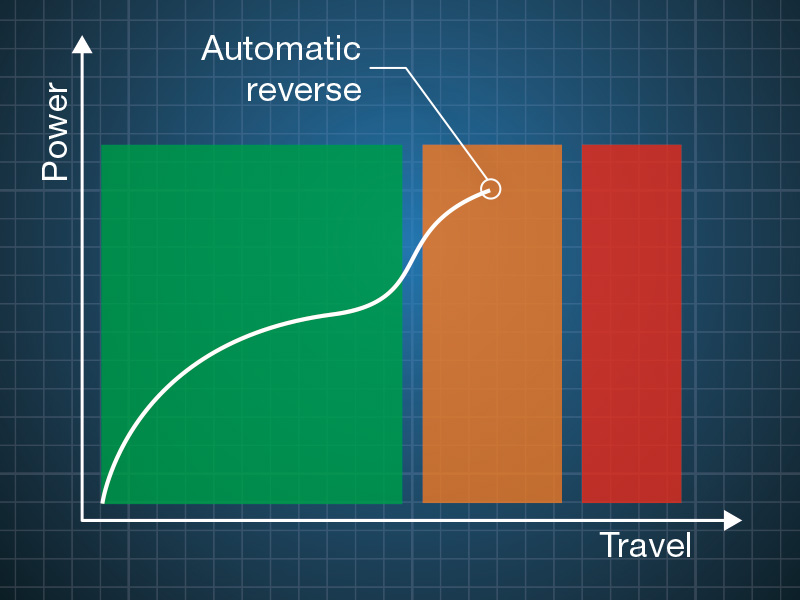

Crash Protection System already installed.

Crash Protection System already installed.

A considered and far-sighted approach is the best safety policy – but what if things have to be done in a rush? An intelligent EDM system that spots and prevents possible collisions contributes to safety at work and saves annoyance and time.

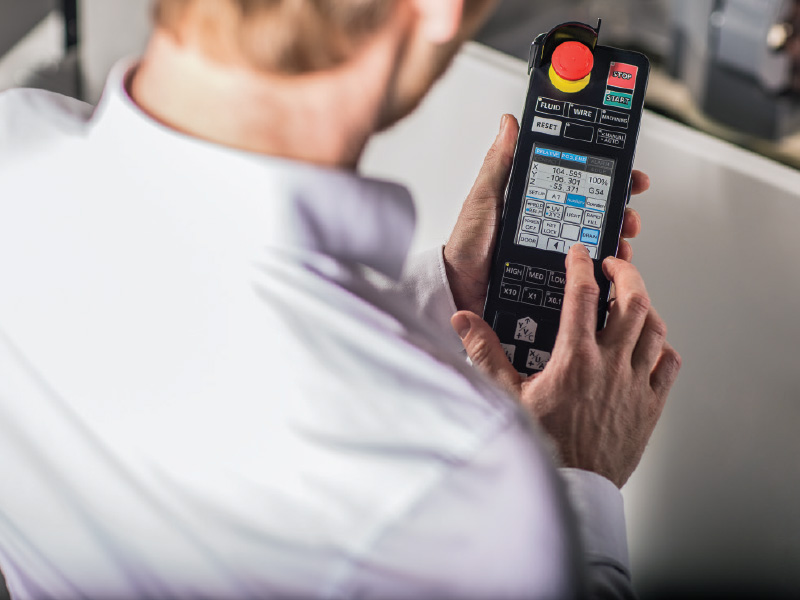

Crash Protection System in action

Crash Protection System in action

See for yourself and watch the dependable Crash Protection System from Mitsubishi Electric in action!

Straight to the film:
www.mitsubishi-edm.de/cps-en

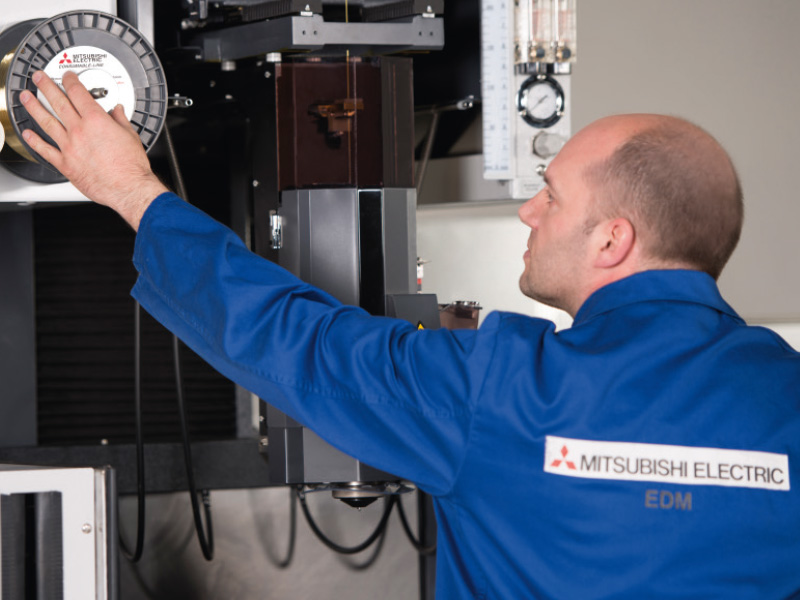

Cutting wire replacement

Cutting wire replacement

Simply replace the spool and feed the cutting wire over the feed rollers. Everything ready for work again in 92 seconds.

Watch film now:
www.mitsubishi-edm.de/spool

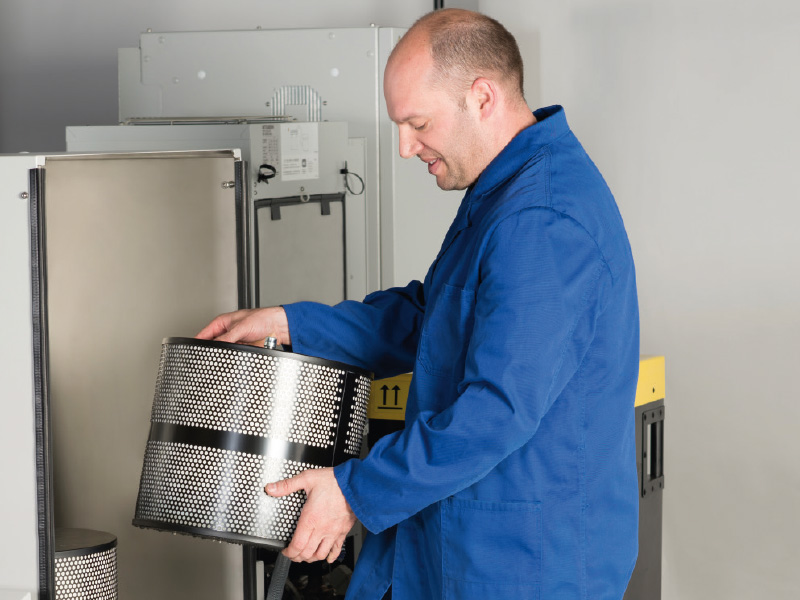

Rapid filter change...

Rapid filter change...

…without tools or wasted time. Two hands, 32 ­seconds – and the filter is replaced.

Straight to the movie:
www.mitsubishi-edm.de/filters

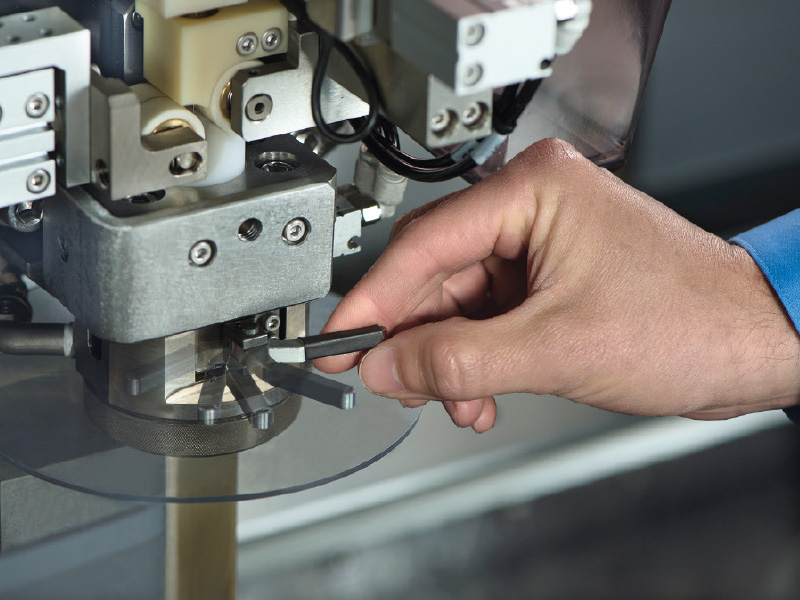

Changing the power feed contact

Changing the power feed contact

Replace the power feed contact with just one hand and a small gauge – at a speed befitting ­Formula One.

See for yourself:
www.mitsubishi-edm.de/power

Round diamond guide

Round diamond guide

Maximum precision and durability ensure the best results in the long run – inclusive of maintenance-­friendliness due to a small number of parts and simple design.

Fully automatic

Fully automatic

The wire-cut EDM systems from Mitsubishi Electric constantly check current axial forces and thus fully ­automatically detect potential accidents before they happen. If there is an obstacle in the travel path, this is electronically detected on the basis of the drive’s load change during the approach and the control ­automatically reverses. Better safe than sorry!

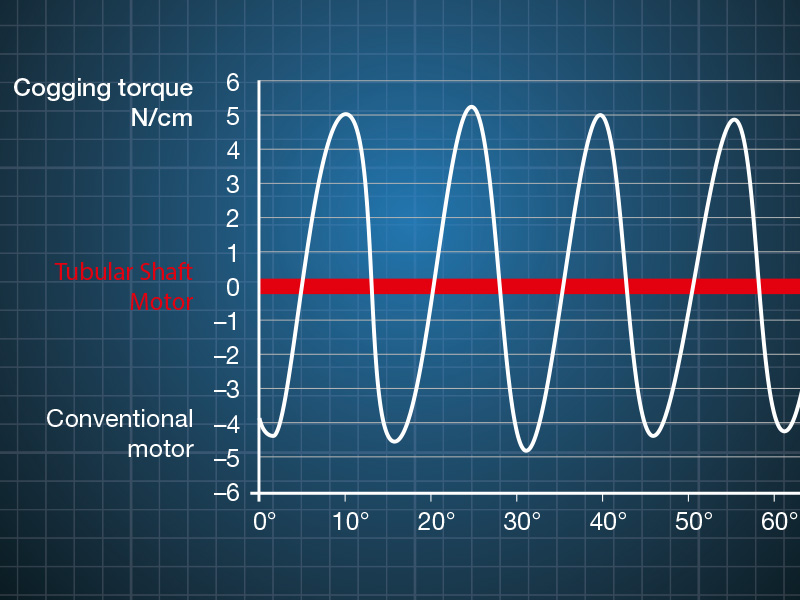

No disruptive cogging torque

No disruptive cogging torque

You’re surely familiar with the cogging torque ma­n­i­fested by a conventional electric motor. It is precisely this cogging torque that is undesirable, as are variations in torque. The Tubular Shaft Motor – the optimal drive for precision applications like electrical discharge machining.

Features in this category

Configured for precision
Perfect drive
Durable hardened stainless steel table
The Tubular Shaft Motor
The speed of light...
Focus on ergonomics
Crash Protection System already installed.
Crash Protection System in action
Cutting wire replacement
Rapid filter change...
Changing the power feed contact
Round diamond guide
Fully automatic
No disruptive cogging torque

Show more features

Economic efficiency

An EDM system must help your company to make ­money.

An EDM system must help your company to make ­money.

The MV-R series cuts expenditure on electricity, wire and filters considerably – so that you can earn more. The machine is designed for decades and has extra-low maintenance needs thanks to intelligent technologies.

Greater precision faster = lower piece costs.

Greater precision faster = lower piece costs.

MP Connect
Conventional
EDM machine
Time period (24 h day)
Productive wire cutting 10 h 32 min 14 h 06 min
Stand-by 1 h 9 h 54 min
Sleep Mode without wire cutting 12 h 28 min –
Energy consumption in kWh
Productive energy consumption 51.07 113.36
Energy consumption without wire cutting 2.69 65.34
Deactivating Sleep Mode 2.32 –

Features in this category

An EDM system must help your company to make ­money.
Greater precision faster = lower piece costs.

Technology

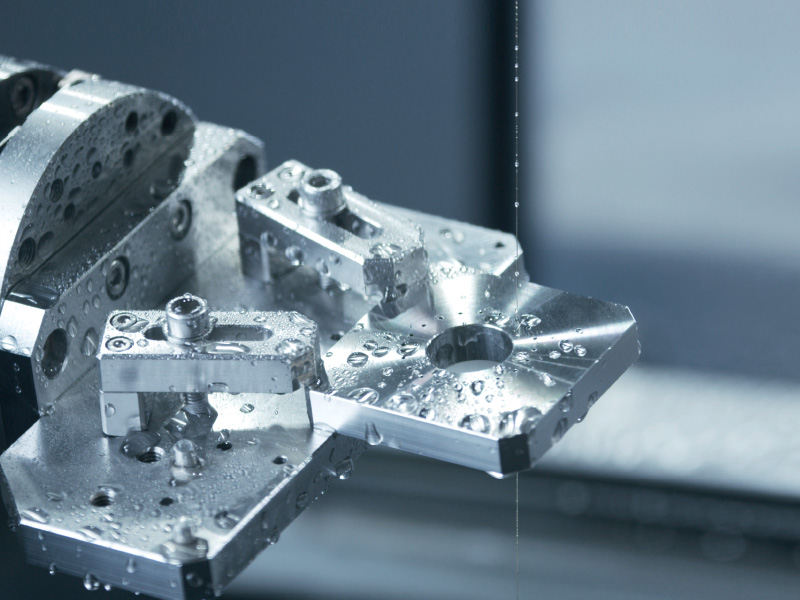

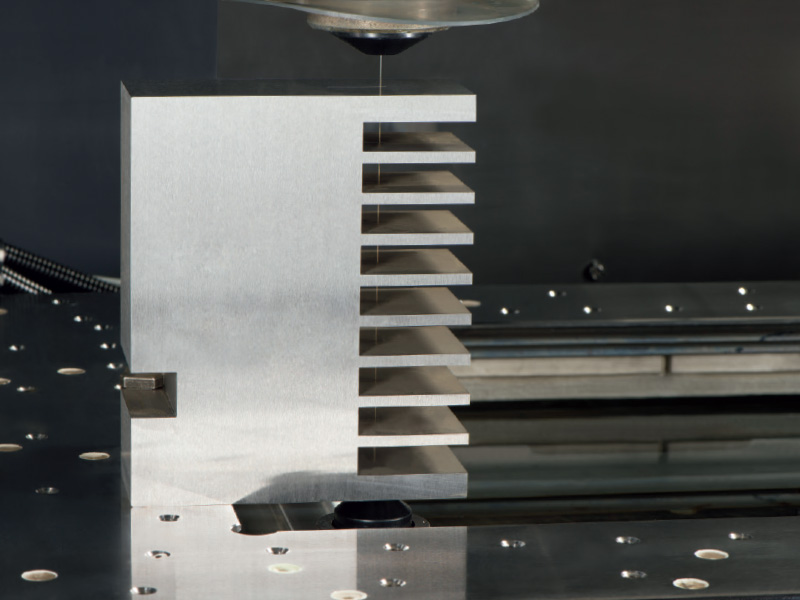

Wire break point insertion even on thick and ­interrupted workpieces.

Wire break point insertion even on thick and ­interrupted workpieces.

The time-consuming return to the starting point is omitted – and machining continues where it left off, thanks to the highly advanced wire annealing system. Depending on machining conditions, threading can be successfully performed with or without jet stream and even submerged – depending on workpiece thickness.

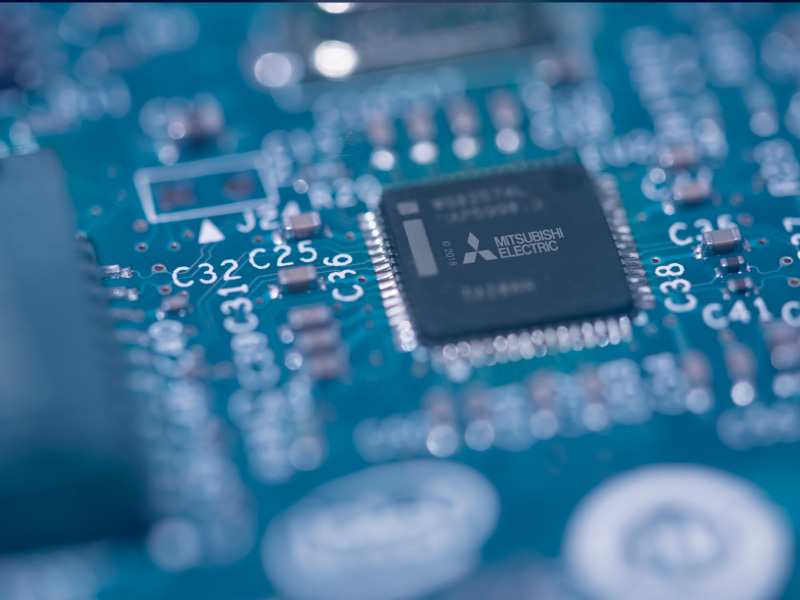

Extra precision and speed thanks to the generator that not only thinks, but also thinks ahead.

Extra precision and speed thanks to the generator that not only thinks, but also thinks ahead.

If you want to achieve better surface quality with fewer ­recuts, you need the right blend of mutually adapted technologies. With Precise Finish Circuit, you achieve more ­precise results faster.

Automatic wire threading – equipped for  any ­situation

Automatic wire threading – equipped for any ­situation

The time-consuming return to the starting point is omitted – and machining continues where it left off, thanks to the highly advanced wire annealing system. Depending on machining conditions, threading can be successfully performed with or without jet stream and even submerged – depending on workpiece thickness.

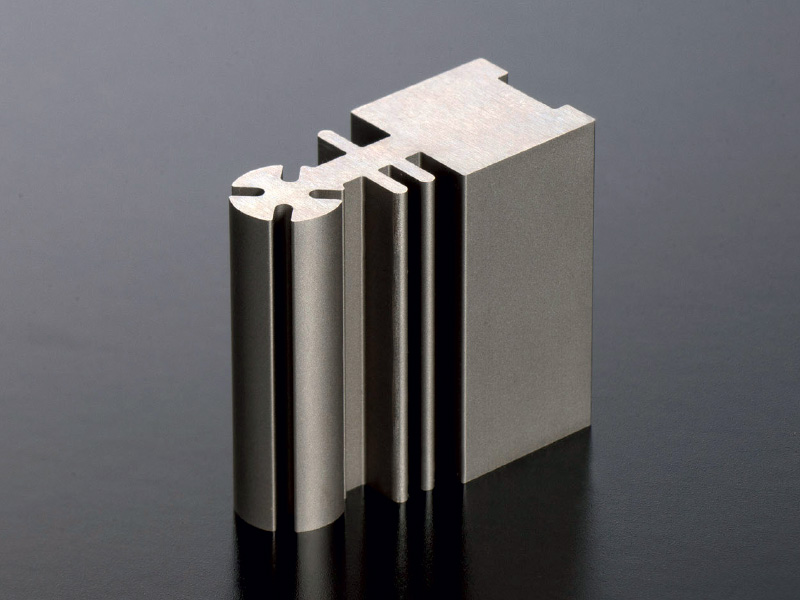

17% faster multi-pass jobs

17% faster multi-pass jobs

4 cuts of Ra 0.28 µm compared to a ­conventional machine.

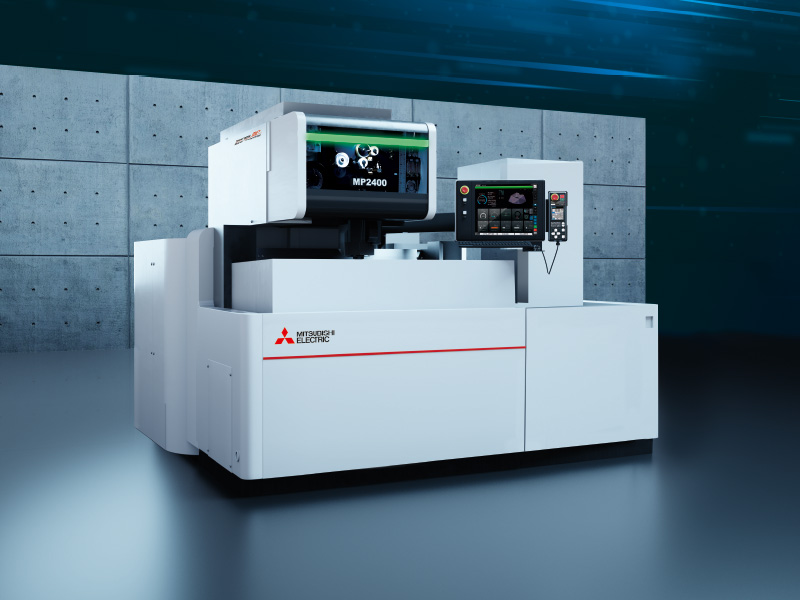

Greater speed and accuracy – for better economy with maximum precision.

Greater speed and accuracy – for better economy with maximum precision.

Response time is decisive

An EDM machine that reacts with greater speed and precision achieves better surface quality faster. The new H-FS generator has a significantly higher effective clock rate. The voltage is built up faster and with greater precision thanks to reduced capacitance loss. Thanks to faster voltage build-up, spark duration and working voltage can be lowered. All that you will probably notice is higher surface quality and lower power costs. The standard SD-FS delivers the best finish – up to Ra 0.05 µm in Tungsten Carbide.

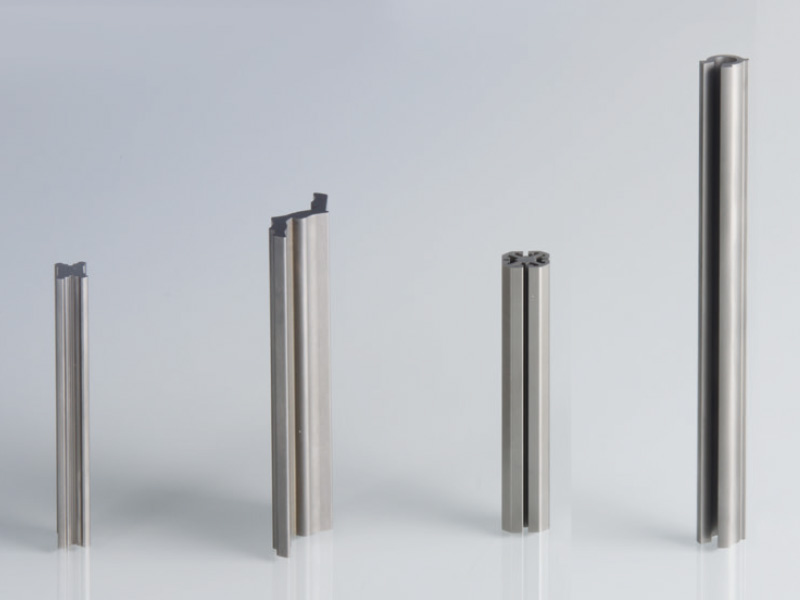

Parallelism in the µm range

Parallelism in the µm range

Parallelism of cutting punches in the < ± 2 µm range for cutting heights of 100 mm – demanded by toolmakers and achieved by the MP Series.

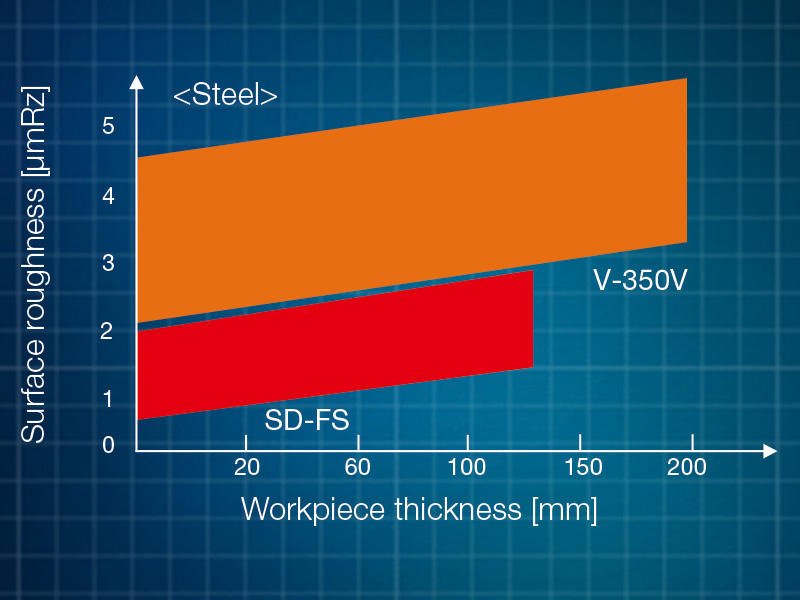

0.05 µm surface roughness

0.05 µm surface roughness

The new SD-FS fine finishing generator is installed as standard in the MP Series. Its action range yields superlative surfaces up to 130 mm cutting height.

New H-FS generator

New H-FS generator

Achieve excellent surface qualities with the new H-FS generator.

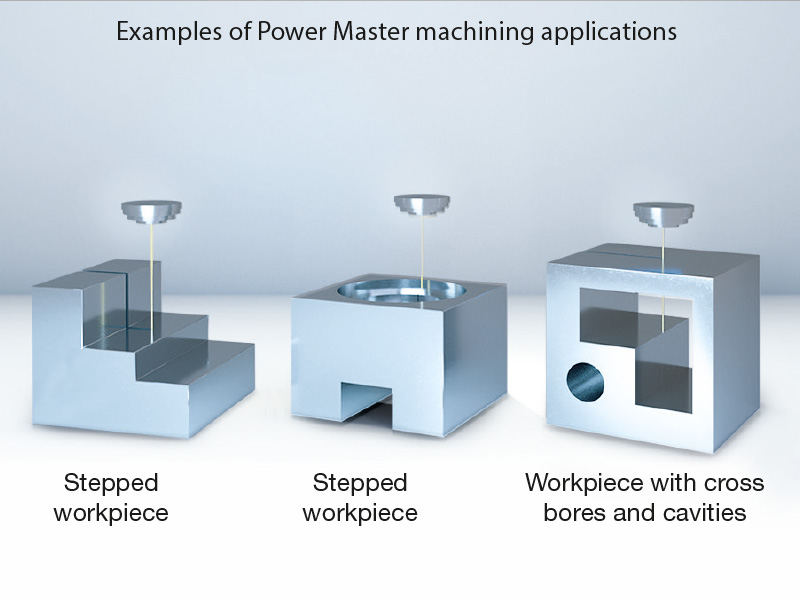

Process Control at its best – Power Master

Process Control at its best – Power Master

The Power Master Control gives the most highest level of process stability – whatever the shape being cut. Stepped workpiece shapes, boreholes and other obstacles to a stable cutting process are identified as soon as they appear and the control adopts cutting and flushing parameters for a safe process and superlative accuracy.

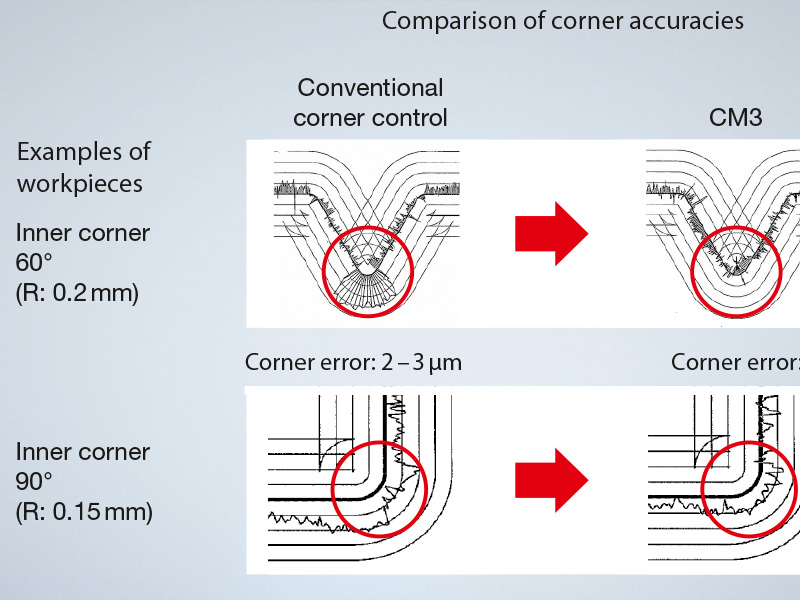

Getting a grip on radii and corners

Getting a grip on radii and corners

On small inner and outer corners and complicated geometries, Corner Master 3 comes to your aid. You merely define your priorities, and optimisation is performed accordingly.

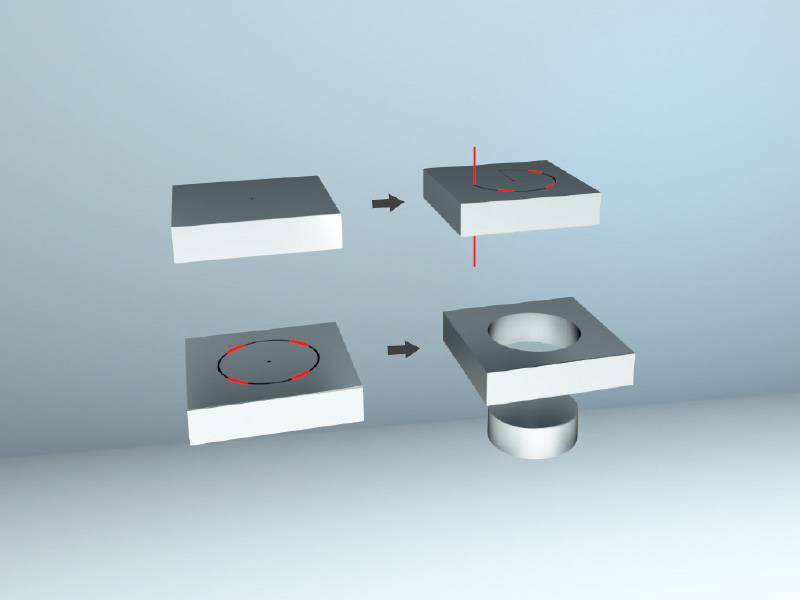

Intercepting the waste – fully automatically

Intercepting the waste – fully automatically

During roughing, a bridge is controllably created to hold the waste material – the waste material cannot fall. In this way many features can be rough-­machined and, after removal of the waste material, recut – fully automatically and unmanned, overnight and at weekends. Lower costs, higher profits.

Long-running jobs with multiple cut-outs

Long-running jobs with multiple cut-outs

The number and length of fixing points are easy to set in different ways: directly via a comfortable dialogue menu within the CNC or on external programming systems supporting this function.

Reducing machining time

Reducing machining time

Standard core connections are replaced by easily removable fixing points, thus reducing the manned time for picking up core parts dramatically. Instead of cutting off the material bridges slowly, the core can be easily removed from the workpiece with slight manual pressure to the core, so the finishing process can start sooner. Remarkable time saving in detail help to reduce overall processing time, contributing to higher process efficiency.

Features in this category

Wire break point insertion even on thick and ­interrupted workpieces.
Extra precision and speed thanks to the generator that not only thinks, but also thinks ahead.
Automatic wire threading – equipped for any ­situation
17% faster multi-pass jobs
Greater speed and accuracy – for better economy with maximum precision.
Parallelism in the µm range
0.05 µm surface roughness
New H-FS generator
Process Control at its best – Power Master
Getting a grip on radii and corners
Intercepting the waste – fully automatically
Long-running jobs with multiple cut-outs
Reducing machining time

Show more features

Control

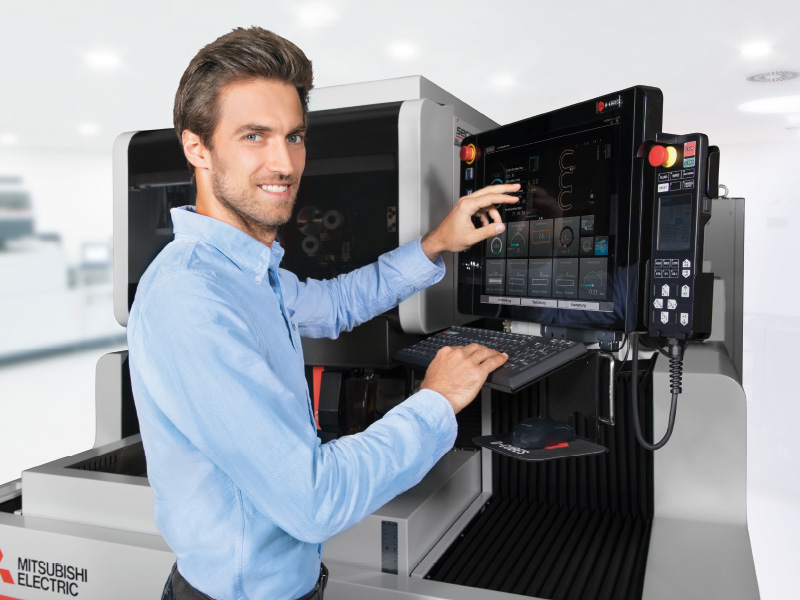

Intuitive operation – for the benefit of the ­machine operator.

Intuitive operation – for the benefit of the ­machine operator.

The user interface is child’s play to handle – gesture con­trol inclusive. While some choose dialogue-supported user guidance, others opt for professional mode to get off to a speedy start. The control adapts to the user.

Intelligent D-CUBES control

Intelligent D-CUBES control

… simply shifts the future into the present. The user has almost half a metre of user interface to work with, assisted in this by the mouse and the usual computer keyboard. The monitoring of the machin­ing process generates neatly displayed information at a glance and detailed analysis where desired.

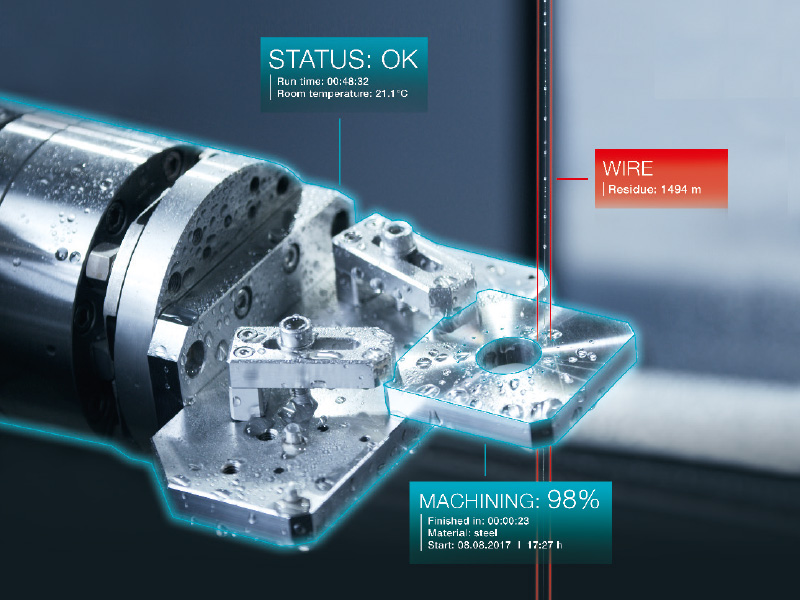

Network for productivity

Network for productivity

All the critical data can be conveniently retrieved ­through the ERP system. The Controller supplies all relevant operational data for further external use – as a standard function. Important interfaces such as Ethernet TCP/IP are of course part of the package.

Touch Control

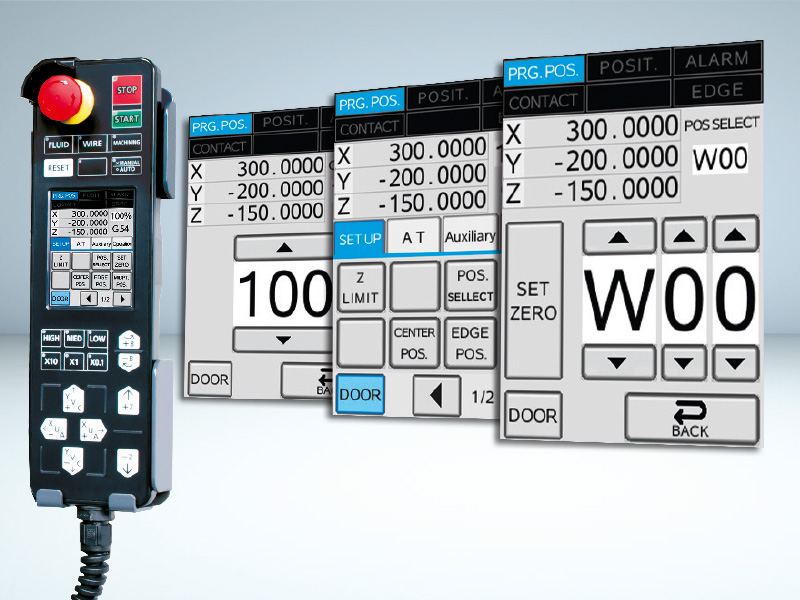

Slim ergonomic manual control box

Slim ergonomic manual control box

The ergonomically designed, intelligent manual control box unites all the relevant functions for control and set-up in a single unit. The integrated LCD display can be individually configured by the operator. Inclusive of buttons for driving all 8 possible CNC axes.

Multi-touch display with gesture control

Multi-touch display with gesture control

Intuitive operation from the large screen with modern gesture control boosts comfort, while the configura­ble user interface supports the user by allowing the main functional elements to be freely arranged dur­ing daily work.

An easy start thanks to dialogue guidance

An easy start thanks to dialogue guidance

With step-by-step dialogue guidance, less experi­enced users are piloted through the entire process, from programming through to the start of machin­ing. Checklists make it possible to review all process-­relevant settings and machine states so that machining yields the best-possible results without ­interruption.

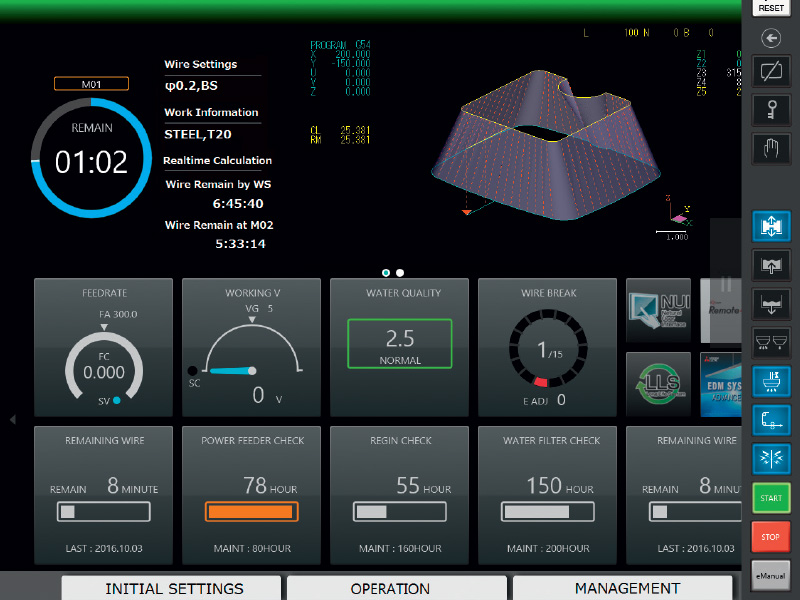

Everything at a glance

Everything at a glance

The easy-to-grasp display of all the key machining parameters in configurable form keeps everything under control at all times. Clearly visible at a glance are – if desired – machining status, elapsed times, state of maintenance and other data. Configuration couldn’t be simpler.

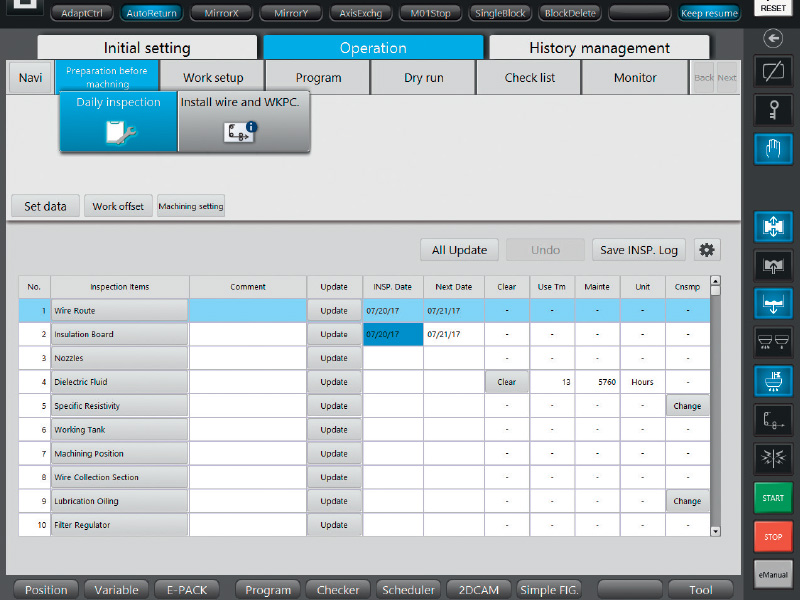

Work scheduling – at the machine

Work scheduling – at the machine

During the preparation of pending machining tasks, support is provided by overviews of the remaining wire, state of filter cartridges and deionisation ­resin, and other parameters. This way you can prevent ­outages caused by finite consumables or wear parts and optimise machine running times.

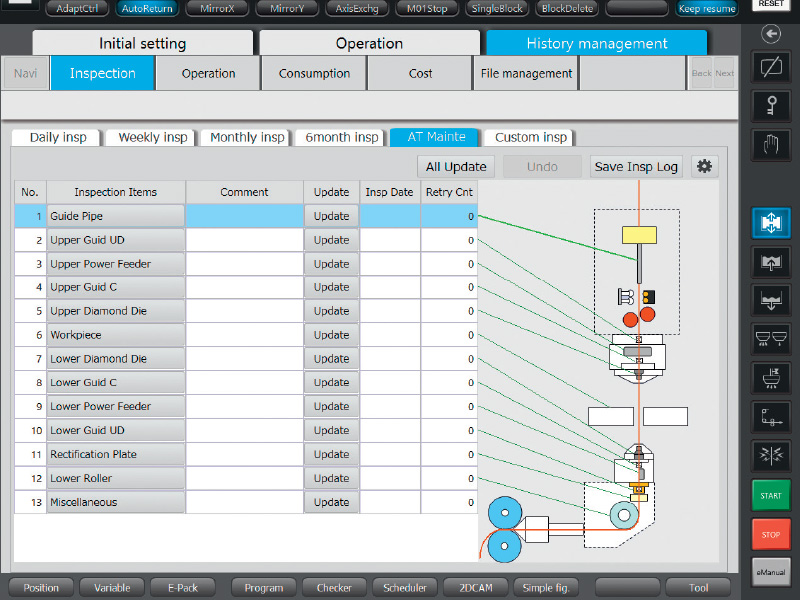

Help at a keystroke

Help at a keystroke

The complete machine documents inclusive of maintenance instructions are always available, and the right help is quickly found. Comprehensibility is aided by photos and 3D depiction.

Clamp it and press Start! Smart user guidance, easy work set-up.

Clamp it and press Start! Smart user guidance, easy work set-up.

If time is of the essence or you want the machines to take some of the work off your shoulders. Set-up often takes too long; from now on, you can save this time.

Highly accurate probing cycles on the sides and ­corners measure the workpiece precisely. With or without jet stream or even submerged, by means of the cutting wire or with the optional 3D touch probe – just as you wish.

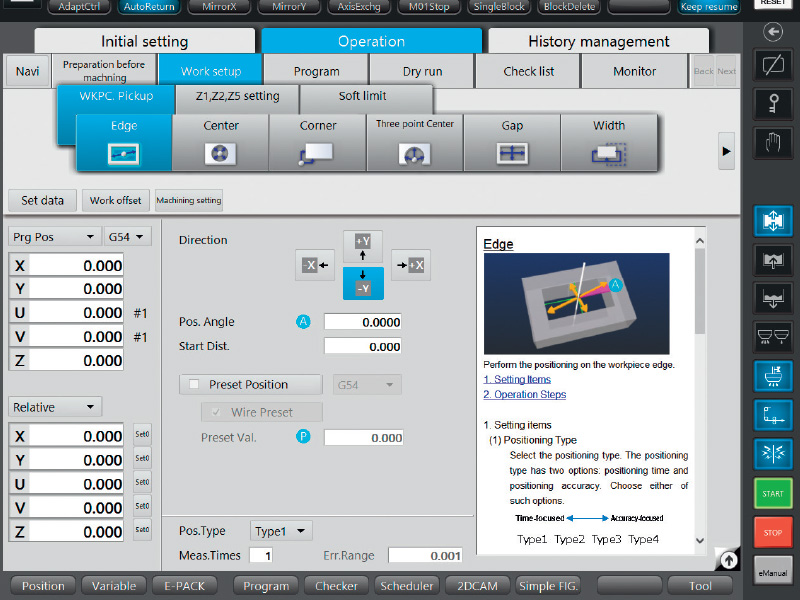

Fully automatic alignment cycles

Fully automatic alignment cycles

Intelligent user guidance takes you to the finish. The electrical discharge machine takes you quickly to your goal.

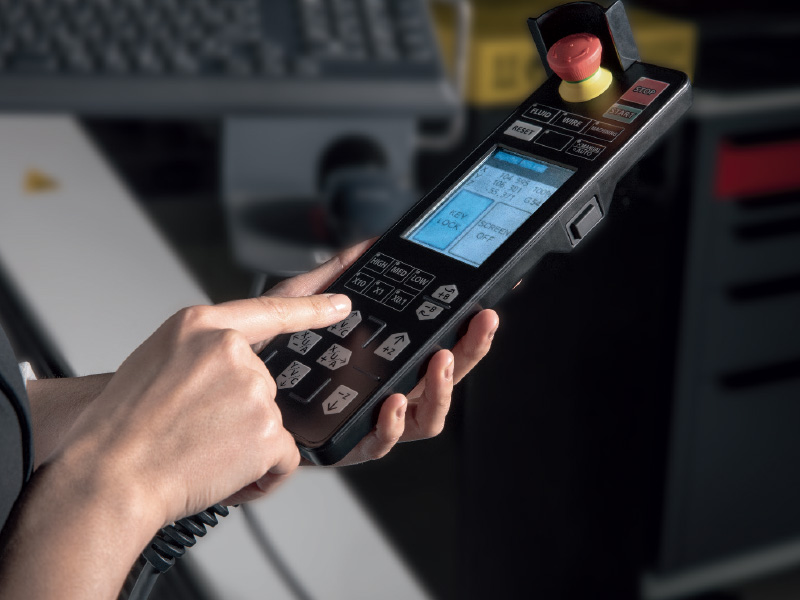

Manual control

Manual control

Comfortable set-up with the manual control box: standard equipment with Mitsubishi Electric. All essential control functions at hand – wherever you need them.

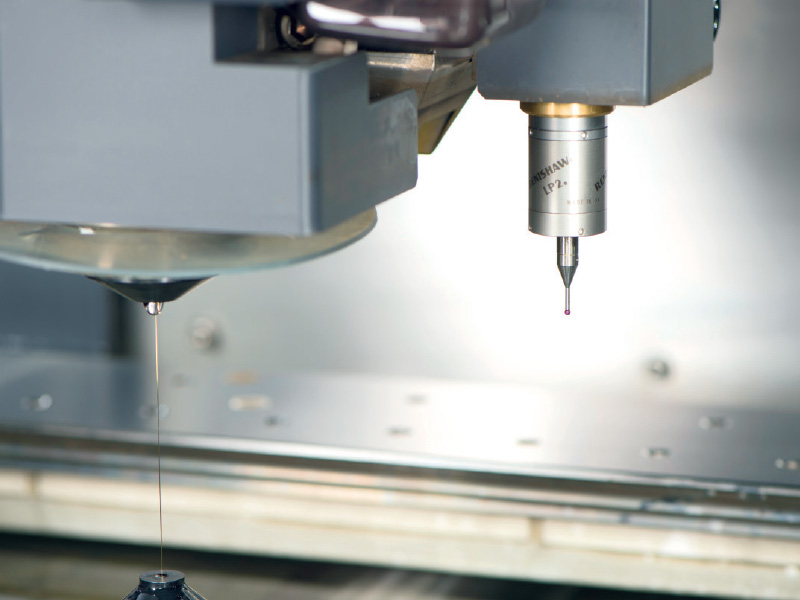

3D position measuring – manual or automatic

3D position measuring – manual or automatic

Both are possible. As a user, you decide whether you do set-up classically by hand or the machine automatically defines the position of your workpiece. Using the cutting wire or pick-up coil – the machine takes care of it for you. It only takes the press of a button.

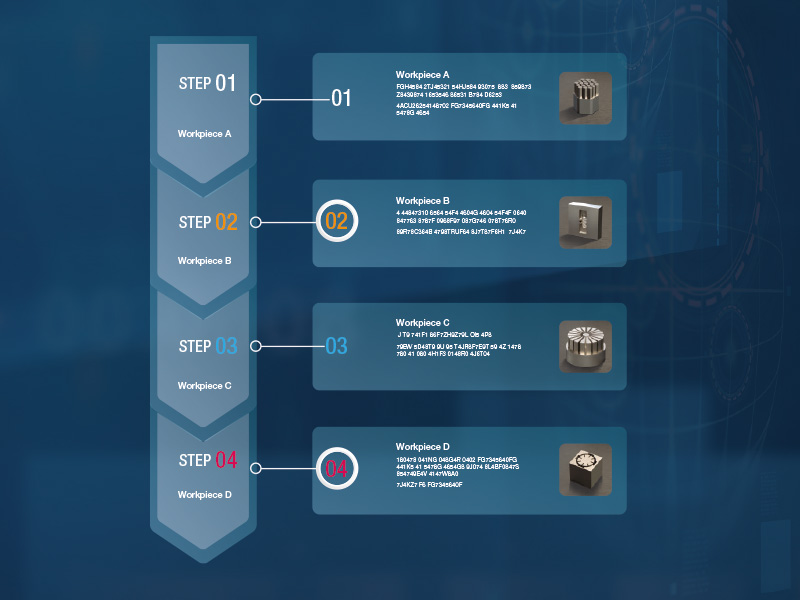

Integrated job scheduling

Integrated job scheduling

Greater flexibility thanks to adaptable job scheduling: with the simple assignment of priorities, you can quickly respond to changing requirements and squeeze in an urgently needed part with ease. ­Several machining programs can be deposited in the job scheduler and managed there.

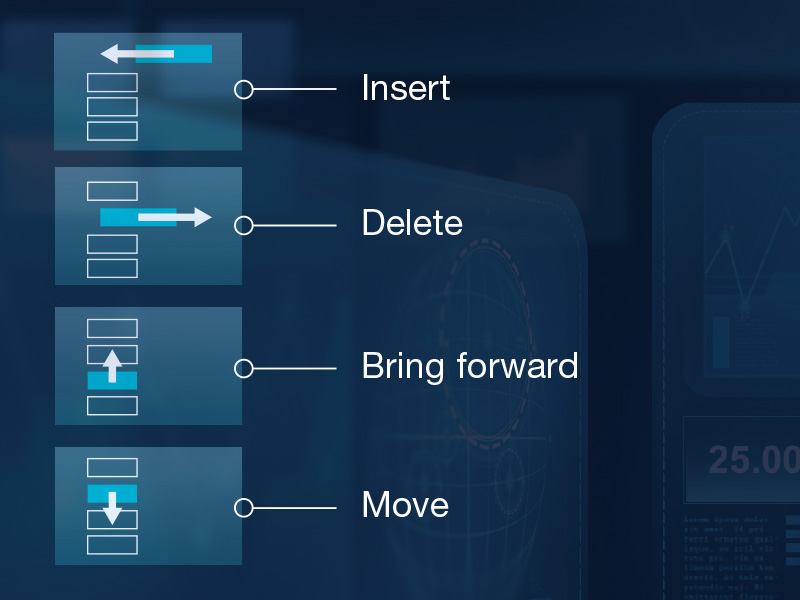

Fast and flexible work planning

Fast and flexible work planning

This is the easy way to add new jobs during machin­ing or change the order of existing machining op­er­ations. The new job processing system with priority management makes it possible to amend a machin­ing list without interrupting machining.

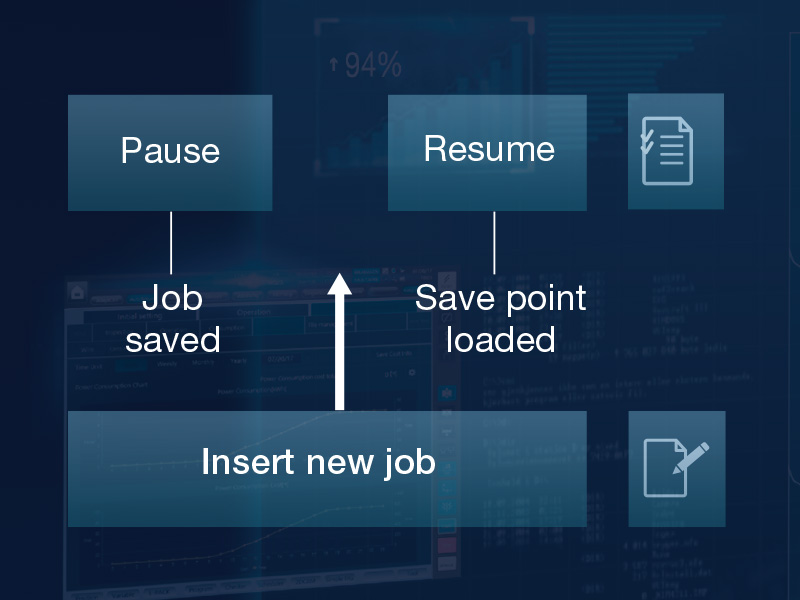

Pause a job – and resume

Pause a job – and resume

A machining process is easy to pause even in mid-flow when urgent jobs have to be processed. The control stores the current state of machining. When the inserted job has been completed, machining can be immediately resumed at the point of interruption. Pushbutton flexibility without programming effort.

Far-sighted maintenance management

Far-sighted maintenance management

All the key consumables are monitored online and presented with their anticipated remaining life. This includes display of the remaining life of the wire spool installed in the machine as well as indication of filter pressure and, calculated from this, the prob­able period until the next filter change.

Visual process management

Visual process management

Machine states depicted over time make capacity utilisation easier to grasp and assist forward-looking production planning. This overview is supplemented by a list of completed machining jobs and the associated machine times and unit costs.

Analysis of operating costs

Analysis of operating costs

Given knowledge of unit costs and their inclusion in the machine’s own analysis, records of consumption data such as energy consumption, wire consumption and component wear help with cost analysis and the costing of pending machining jobs.

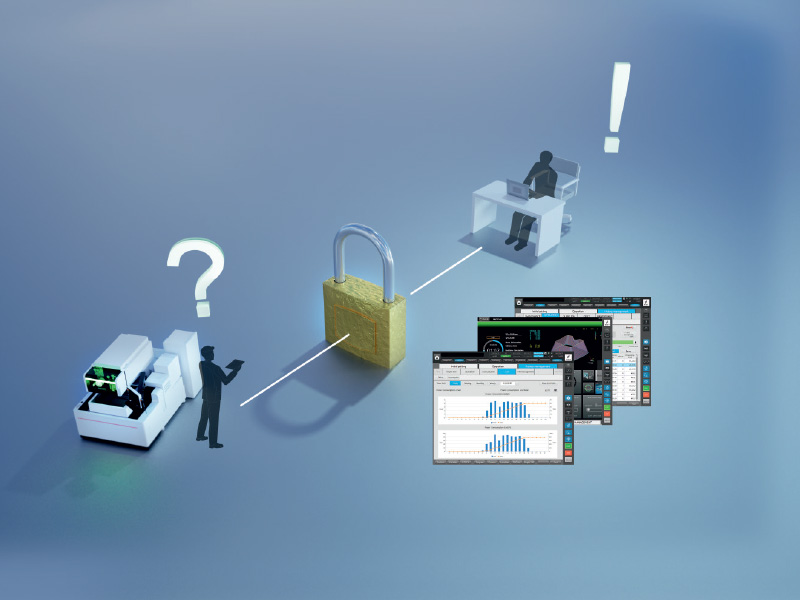

After-sales service online

After-sales service online

Rapid online help to reduce downtime and expenditure on service assignments. Applications support with ­direct access to the machine control can provide the machine operator with optimum and rapid assistance when faced with difficult tasks. All in the aid of improving production operations.

Process data management

Process data management

Operating and process data can be retrieved at the control. Available as standard is an export function for all process data, operating states, con­sumption data and maintenance states as well as alarms. This way the data from several machines can be viewed and evaluated in consolidated form, through to their integration in higher-order production man­agement systems.

No compromising on security

No compromising on security

Anti-virus protection is ensured as standard by one of the world’s leading software systems in security control.

Always up to date – wherever you are.

Always up to date – wherever you are.

You can control the machine and keep an eye on processes, wherever you are. ­Intelligent communication takes the pressure out of work. Ideal combined with automation solutions and high process autonomy with the intelligent AT wire threader.

mcAnywhere Service (standard on the MV-R Connect)
Rapid help from Mitsubishi Electric experts.

mcAnywhere Control
Comfortable and reliable remote control for your EDM system – powered by TeamViewer.

mcAnywhere Contact+
Any time, any place … you’re always up to date with direct status reports by email. Status reports can be optionally sent by text message – a GSM modem with a suitable driver can be added for this.

Features in this category

Intuitive operation – for the benefit of the ­machine operator.
Intelligent D-CUBES control
Network for productivity
Touch Control
Slim ergonomic manual control box
Multi-touch display with gesture control
An easy start thanks to dialogue guidance
Everything at a glance
Work scheduling – at the machine
Help at a keystroke
Clamp it and press Start! Smart user guidance, easy work set-up.
Fully automatic alignment cycles
Manual control
3D position measuring – manual or automatic
Integrated job scheduling
Fast and flexible work planning
Pause a job – and resume
Far-sighted maintenance management
Visual process management
Analysis of operating costs
After-sales service online
Process data management
No compromising on security
Always up to date – wherever you are.

Show more features

Equipment options

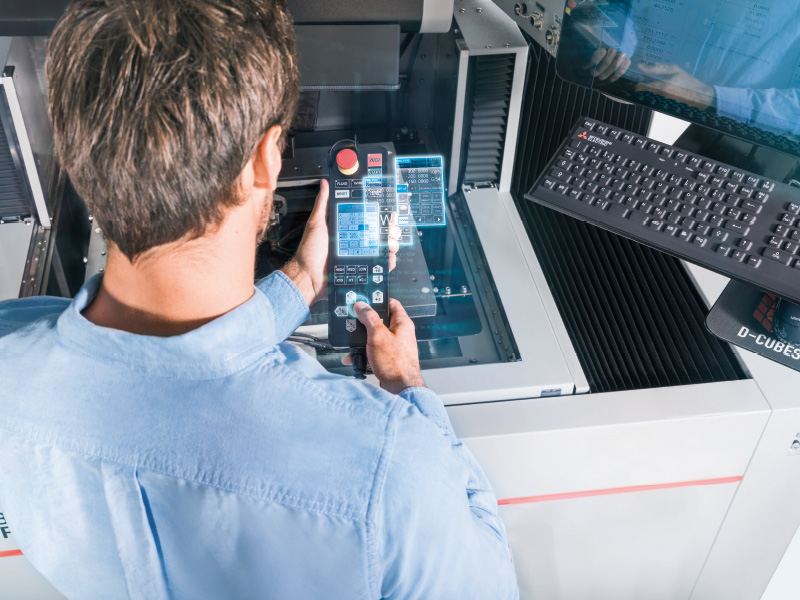

Customised extension. The intelligent solution.

Customised extension. The intelligent solution.

Automatic water top-up
Intelligent, continuous monitoring of the process water level and fully automatic top-up as required*

Connection to external cooling system
Precise temperature control thanks to microprocessor-controlled connection to a central cooling system**

Automatic filter switchover
Two pairs of filters can be optionally used together in the process or, when one pair of filters reaches its maximum pressure, the system switches over automatically to the second pair

3D probing

3D probing

Mounted on the machine head, activated on ­command. The intelligent solution.

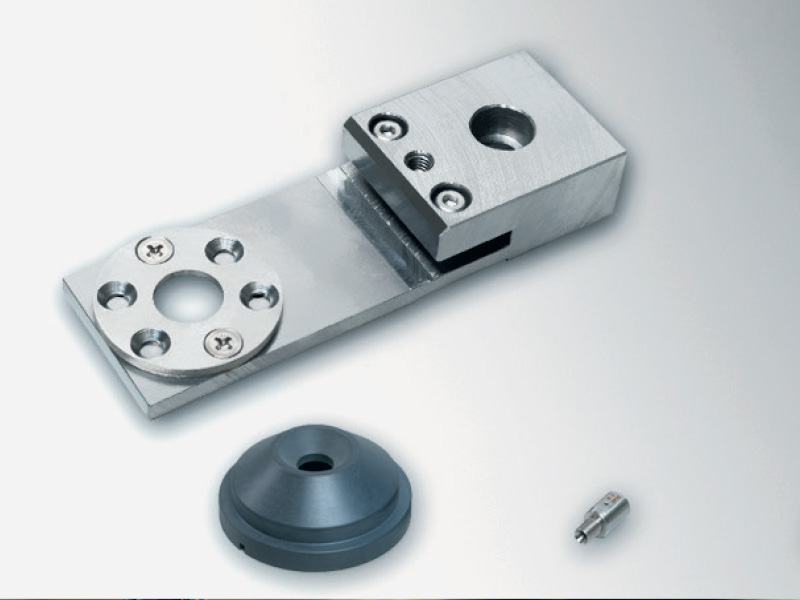

Angle Master Advance II

Angle Master Advance II

Special wire guide and sequential calculation of the wire set-up point for precision angles.

ERGO-LUX (machine lights)

ERGO-LUX (machine lights)

Working conditions that are kind to your eyes – for the sake of users and for the benefit of machining results.

Tool package

Tool package

Complete kit for the machining of rotationally ­symmetrical tools with PCD or CBN cutting edges.

16/20/25 kg wire station

16/20/25 kg wire station

Accommodates large wire spools with ease.

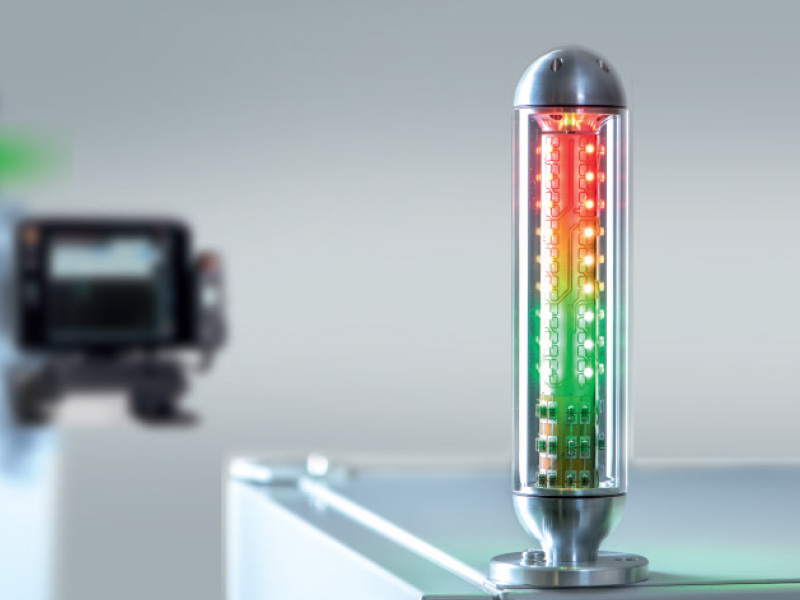

Additional status lamp

Additional status lamp

The current status is visible from a distance thanks to the vertical lamp fitted on top of the generator cabinet, available in addition to the integrated status lamp.

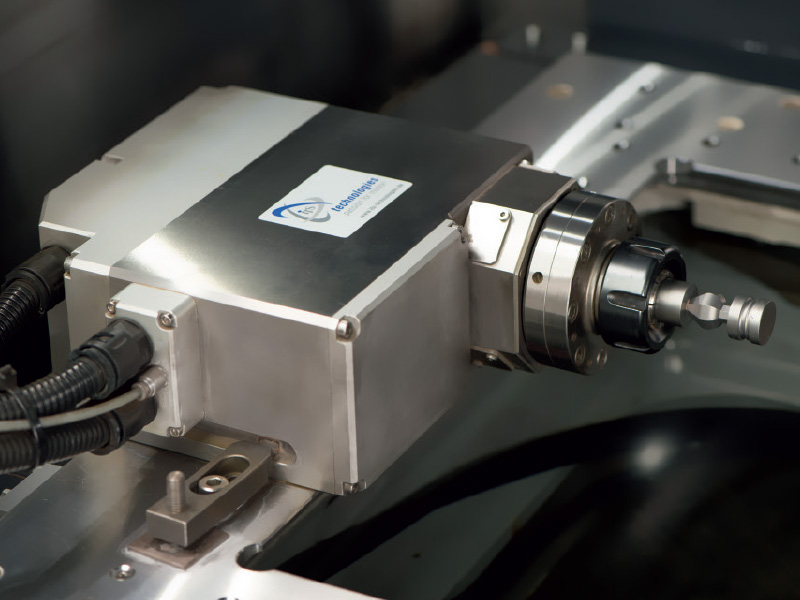

B-axis

B-axis

A servo-controlled B-axis fully integrated in the machine controls permits wire cutting on a rotating carried workpiece. Separation and multi-sided machining can be per­formed in a single clamping as well as simultaneously.

Rotary swivel axis

Rotary swivel axis

Machining cones to the highest standards of precision: the rotational/swivel axis integrated in the machine controls. Multi-axis machining to the centre of the workpiece and multi-sided machin­ing in a single clamping, plus the real­isation of high-precision conical polygons.

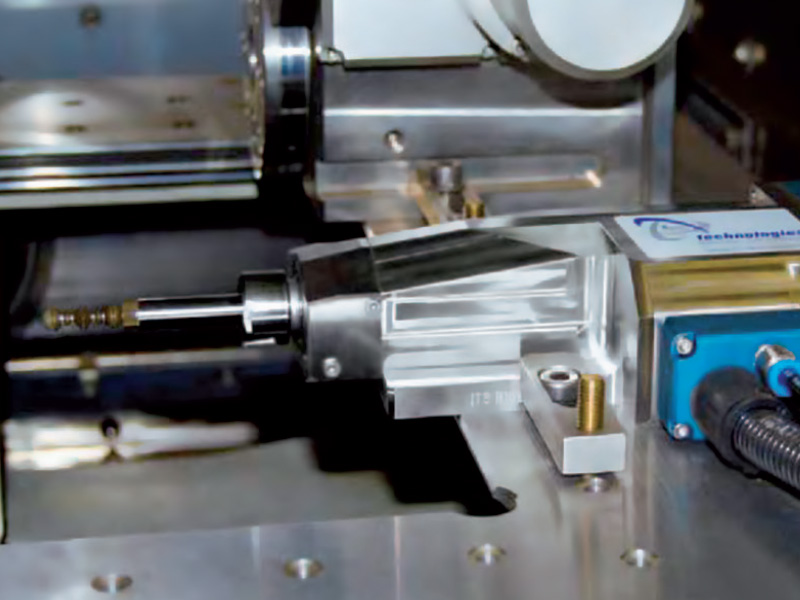

Mini-rotational axis

Mini-rotational axis

Rotating spindle fully integrated in the machine control with positioning for the most minute high-precision components, e.g. the manufacture of ejector pins with a diameter of ≥ 0.05 mm, the realisation of conical threads in medical technology, ero­sive grinding, turning and simultaneous machining.

Features in this category

Customised extension. The intelligent solution.
3D probing
Angle Master Advance II
ERGO-LUX (machine lights)
Tool package
16/20/25 kg wire station
Additional status lamp
B-axis
Rotary swivel axis
Mini-rotational axis

Show more features

Automation

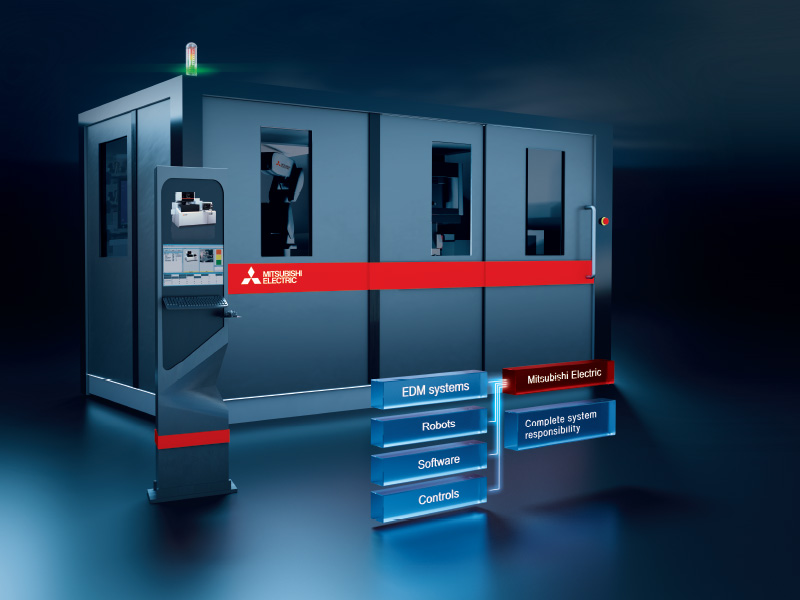

Automation has to be flexible. Reconciling different brands.

Automation has to be flexible. Reconciling different brands.

Optimum solutions – customised, configured or standardised

The handling systems and robots from different manufacturers can often be seamlessly integrated. Renowned for their dependability and productivity, the EDM machines of the MV-R Series from Mitsubishi Electric are automation-ready. We’d be happy to show you examples that have proven effective in practice and help you to cut costs and boost your productive capacity.

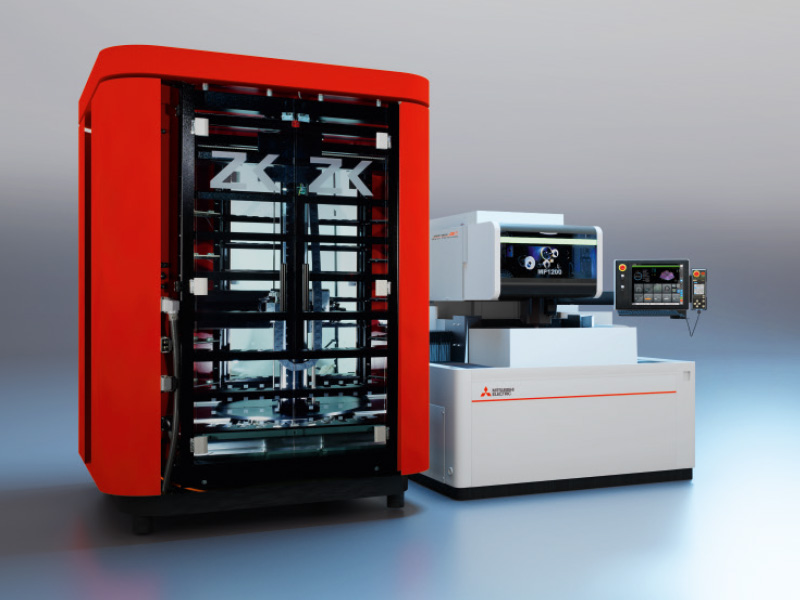

Handling equipment from different manufacturers

Handling equipment from different manufacturers

Handling equipment from different manufacturers – welcome and easily integrated.

Automation in Action

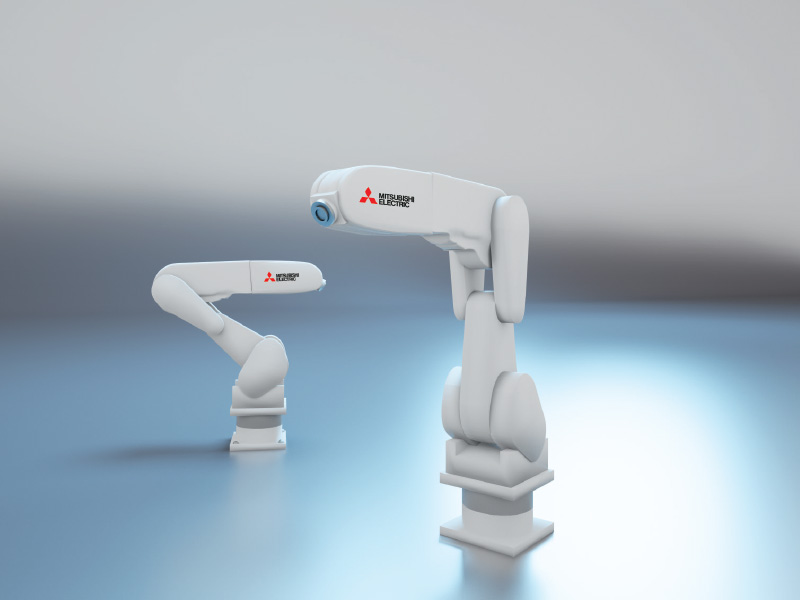

Flexible solutions

Flexible solutions

Flexible solution: Articulated-arm robot up to 15 kg of Mitsubishi Electric quality.

Automated integration

Automated integration

Automated integration – here with ZK Chameleon.

Features in this category

Automation has to be flexible. Reconciling different brands.
Handling equipment from different manufacturers
Automation in Action
Flexible solutions
Automated integration

Show more features

Specifications

MachineMP1200MP2400
Travel (X / Y / Z) in mm400 / 300 / 220600 / 400 / 310
Travel (U / V) in mm120 / 120 (+/- 60)150 / 150 (+/- 75)
Taper angle (workpiece height) in °/mm15 / 200  30 / 8715 / 260  30 / 110
Max. workpiece dimensions (W x D x H) in mm810 x 700 x 2151050 x 820 x 305
Max. workpiece weight in kg5001500
Table dimensions (W x D) in mm640 x 540840 x 640
Table layoutHardened 4-side table
Possible wire diameters in mm0.05–0.30
Wire spool capacity in kg10
Automatic wire threader / wire chopperYes / Yes
Overall dimensions (W x D x H) in mm2025 x 2760 x 20152684 x 3030 x 2150
Machine weight in kg27003800
Mains voltage3-phase 400V/AC ± 10%, 50/60Hz, 20kVA
Filter systemMP1200MP2400
Tank capacity in l550860
Filter particle size in µm / filter elements3/2
Temperature controlDielectric cooling unit
Weight (dry) in kgIncluded in machine weight350
GeneratorMP1200MP2400
Power supply unitRegenerative transistor pulse type
Cooling methodFully sealed / indirect air cooling
Max. output current in A50
Dimensions (W x D x H) in mm600 x 650 x 1765
Weight in kg240
ControlMP1200MP2400
Input methodKeyboard, USB flash drive, Ethernet, 19” touchscreen
Control systemCNC, closed circuit
Min. command step (X / Y / Z / U / V) in µm0.1
Min. axis resolution in µm0.05
EquipmentMP1200MP2400
Tubular Shaft Drives with linear scales (X / Y / U / V)Yes
Control M800 with 19” full-touch monitorYes
Hand pilot with configurable LCD monitorYes
Digital AE II generatorYes
Fine finishing generator H-FSYes
Digital fine finishing generator SD-FSYes
Hardened 4-side tableYes
Digital electricity meter / filter pressure sensorYes
Ethernet/DNC/FTPYes
Preparation for automationYes
McAfee AntiVirus embeddedYes
Operating data outputYes
3D CamMagic on-boardYes
Corehold technologyYes
Job scheduler / Job scheduler+Yes
mcAnywhere Contact+ lightYes
Sleep modeYes
Three-side lifting tankYes
mcAnywhere ServiceYes
Angle Master Advance II – basic kit incl. aligning deviceYes
Optional HardwareMP1200MP2400
Wire station for 16 / 20 / 25 kg wire spoolsOptional
Wire station for 50 kg wire spoolsOptional
Angle Master Advance II – Wire guide kitOptional
Automatic Renishaw probeOptional
ERGO LUX LED floodlightOptional
Additional tricolour signal lampOptional
Automatic dielectric water refillingOptional
Connection to external cooling systemOptional
External signal output with relay boardOptional
Filter switching systemOptional

Power connection: 3-phase 400 V/AC, PE, ± 10%, 50/60 Hz, primary fuse 32 A slow

Pneumatic connection: 5–7 kgf/cm³, 500–700 kpa, minimum air flow rate 75 l/min, 3/8″ hose connection

The EDM system should be set up on a suitable hard industrial floor and preferably on a consolidated concrete floor. Any shielding that may be necessary in conformity with the EMC Directive is not included in the equipment supplied by Mitsubishi Electric. The cooling unit contains fluorinated greenhouse gas R410A. For further information, please refer to the associated operating instructions.

MP Brochures

  • MP Brochure TR (5 MB)

  • MP Brochure HU (6 MB)

  • MP Brochure CZ (5 MB)

  • MP Brochure RU (6 MB)

  • MP Brochure Polish (6 MB)

  • MP Brochure ES (6 MB)

  • MP Brochure IT (6 MB)

  • MP Brochure FR (6 MB)

  • MP Brochure EN (6 MB)

  • MP Brochure DE (6 MB)

MP Layout

  • MP2400 Layout (187 KB)

  • MP1200 Layout (192 KB)

MP Transport Drawing

  • MP2400 Transport Drawing (887 KB)

  • MP1200 Transport Drawing (261 KB)

Send us a Question

Fields marked with a * are mandatory.

Contact Us

Mitsubishi Electric Europe B.V.
German Branch
Mitsubishi-Electric-Platz 1
D - 40882 Ratingen

Sales
Tel.: +49 (0)2102 / 486 - 6120
edm.sales@meg.mee.com

Service
Tel.: +49 (0)2102 / 486 - 7600
edm.hotline@meg.mee.com

Applications
Tel.: +49 (0)2102 / 486 - 7700
edm.applikation@meg.mee.com

Spareparts
Tel.: +49 (0)2102 / 486 - 7500
edm.parts@meg.mee.com
