SG-S – Power for Production

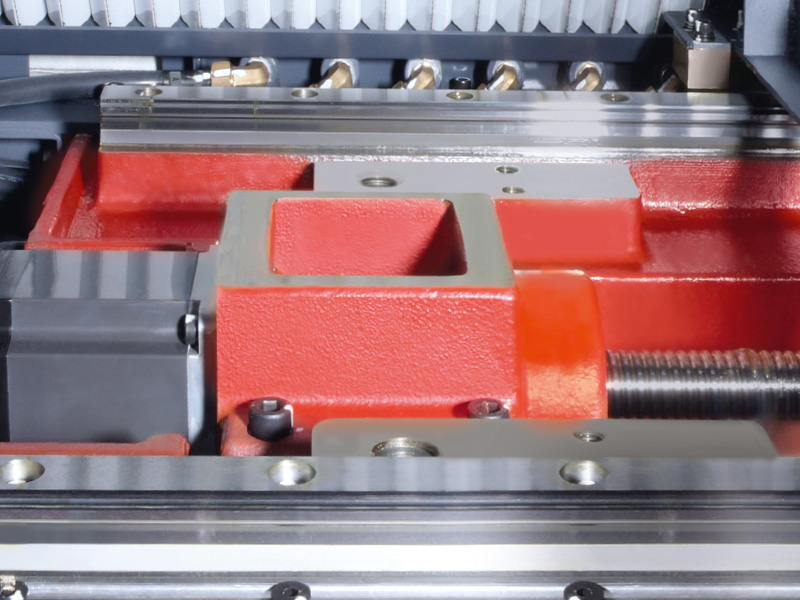

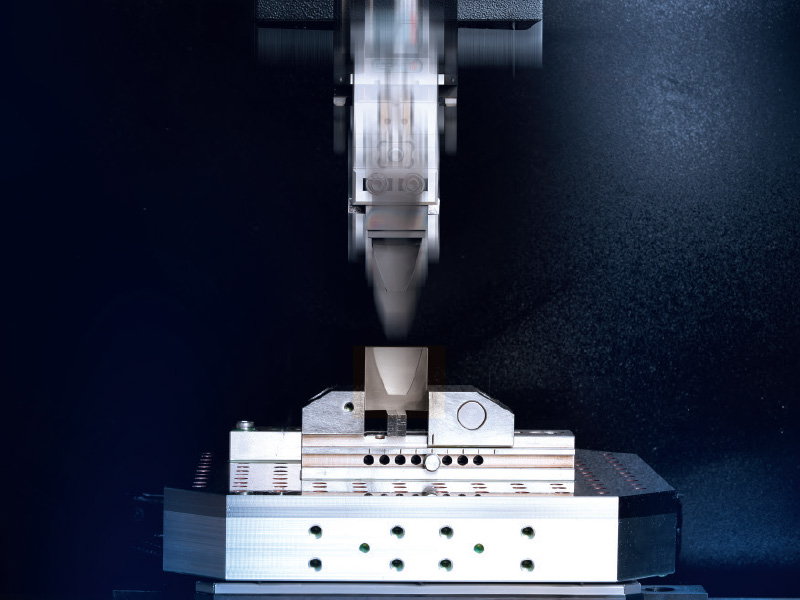

Rock-solid machine construction, executed with the focus on high precision. A compact design is achieved through the concentrated use of materials matching the traverse paths. The high dynamics of the Z-axis are made possible by the robust design of the machine head.

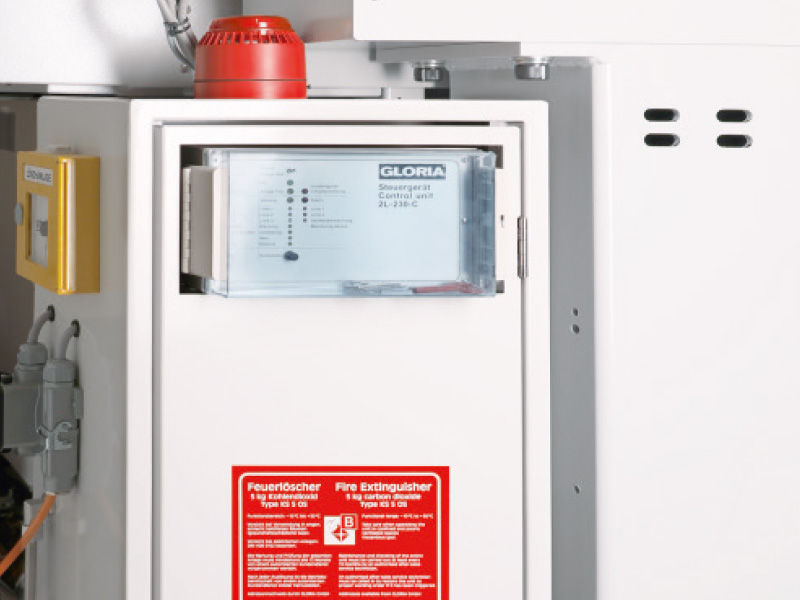

Safety always comes first and must therefore already be included in the basic equipment so that you can erode without supervision. The automatic extinguishing system is always included.

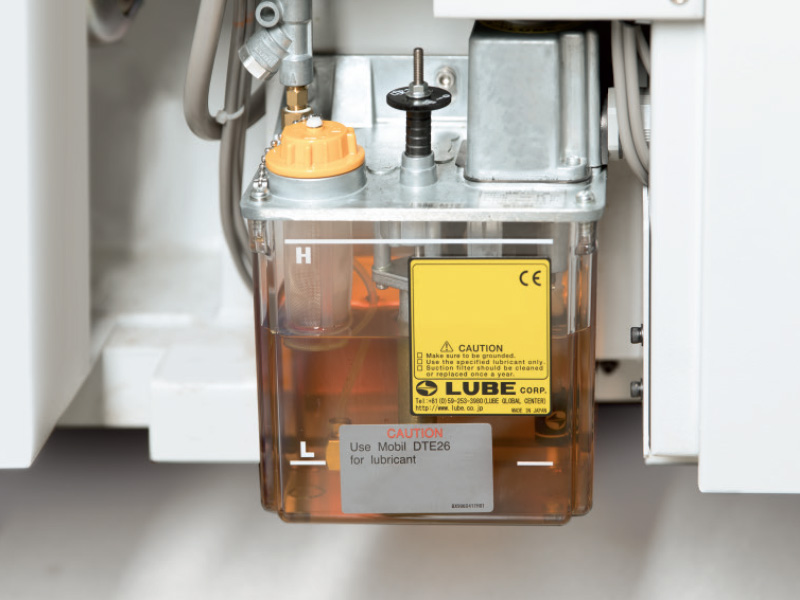

Ensures frictionless processes long-term – without downtime, grease nipples or cumbersome grease guns. You can use this time more productively.

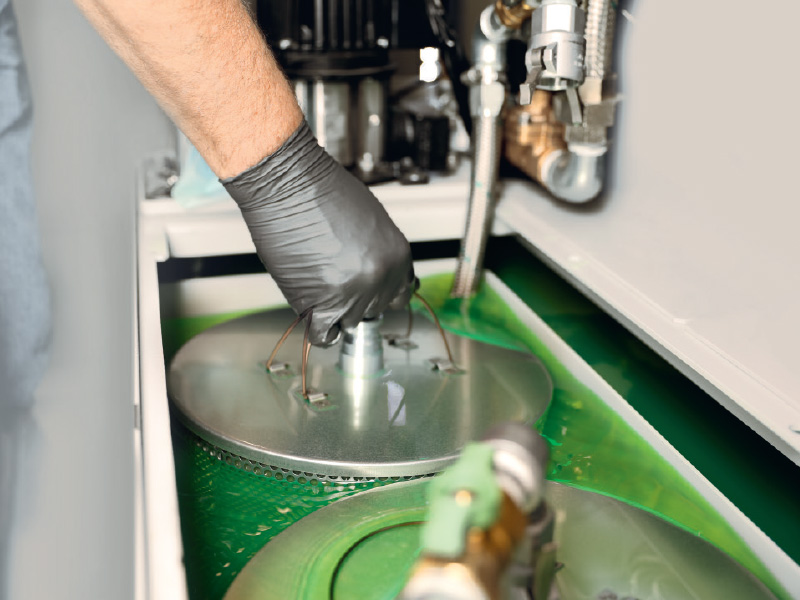

… during the live process – without tools or wasted time. Two hands, 32 seconds – and the filter is replaced.

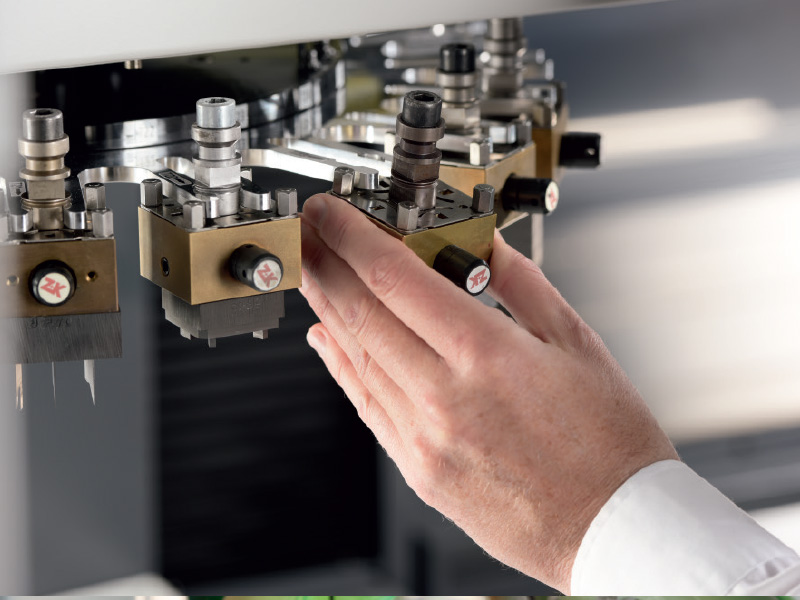

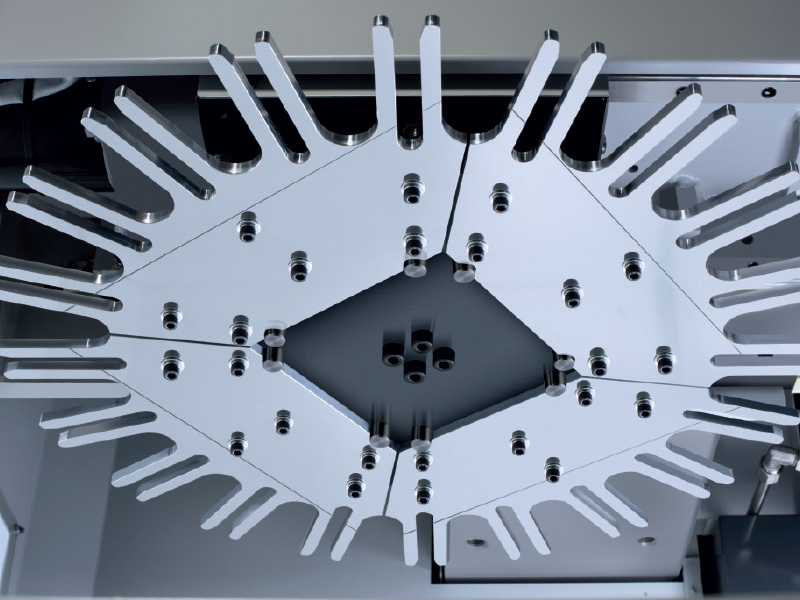

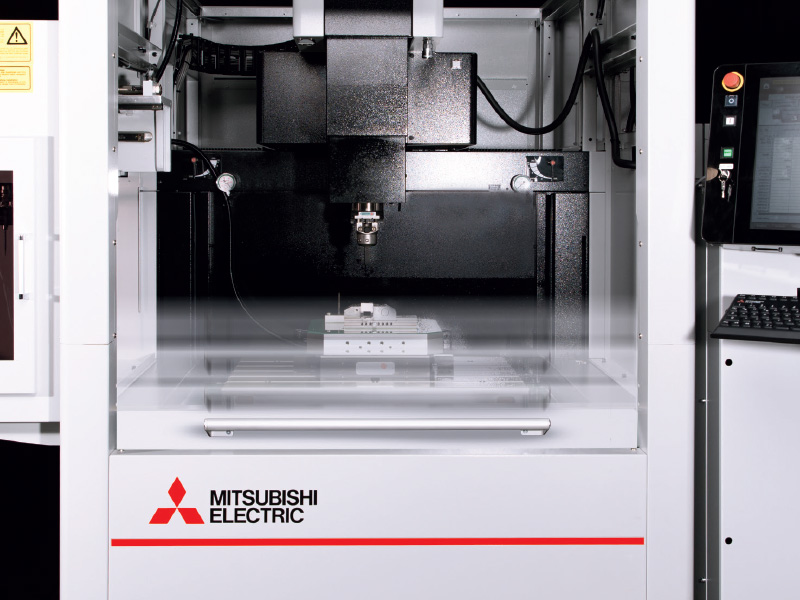

Access to the electrode changer from the front permits ergonomic loading.

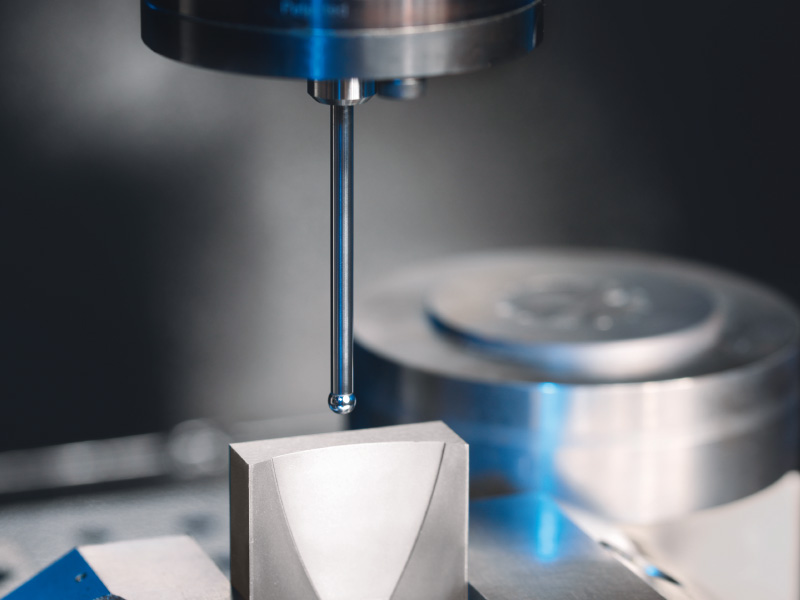

External presetting on a measuring machine is of course also supported by the Mitsubishi Electric SG-S – for automated operation and maximised profitability!

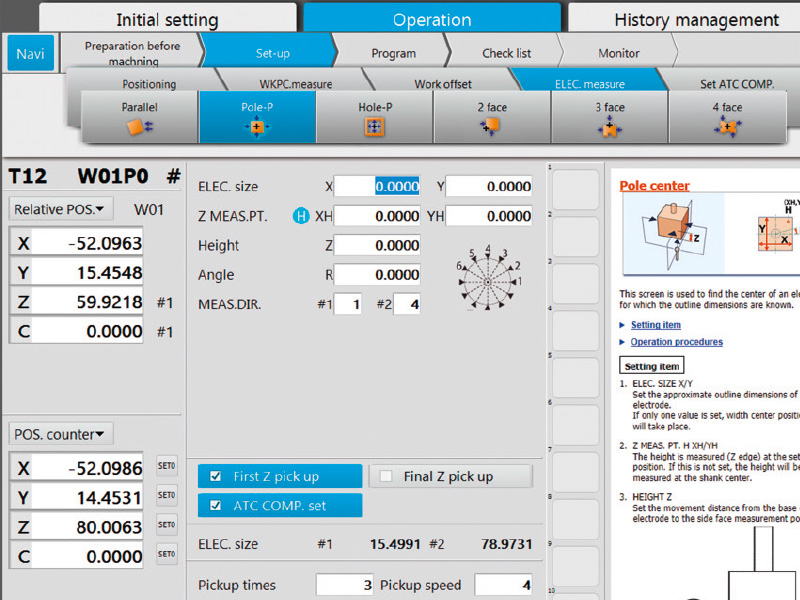

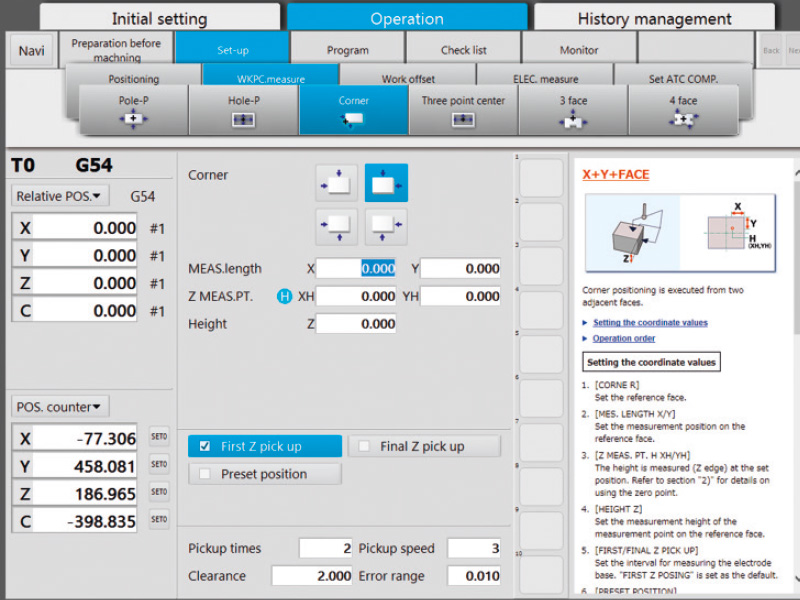

The automatic and simple position detection of the electrodes allows you to work precisely, comfortably and quickly.

You can also detect the position of the workpieces with the same convenience as with the electrodes.

The digital Power Master IDPM guided by Artificial Intelligence is the key to the SG-S’s outstanding performance. Minimal wear of the graphite electrodes combined with high removal rates is visibly supported by this technology. The formation of deep ribs with a uniform surface structure is another feature of the new IDPM with AI. The IDPM’s high performance is available not only for the machining of steel but also of carbide.

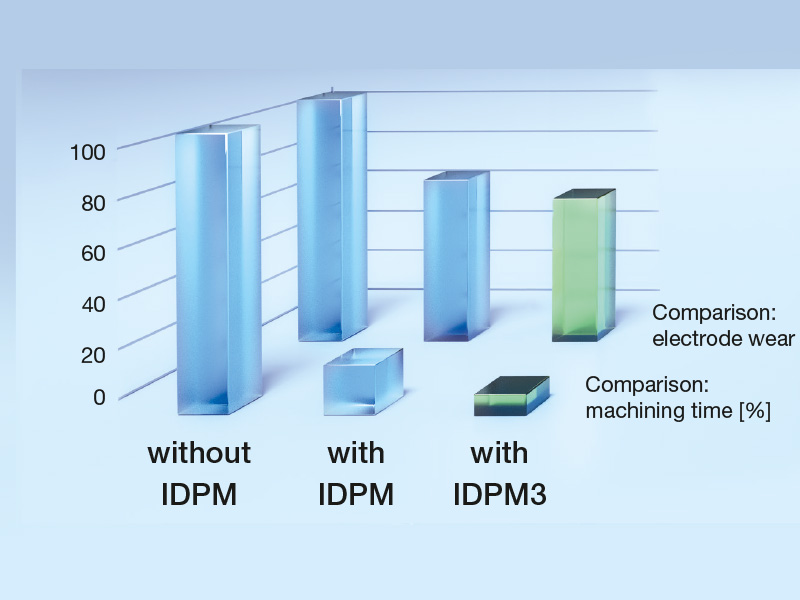

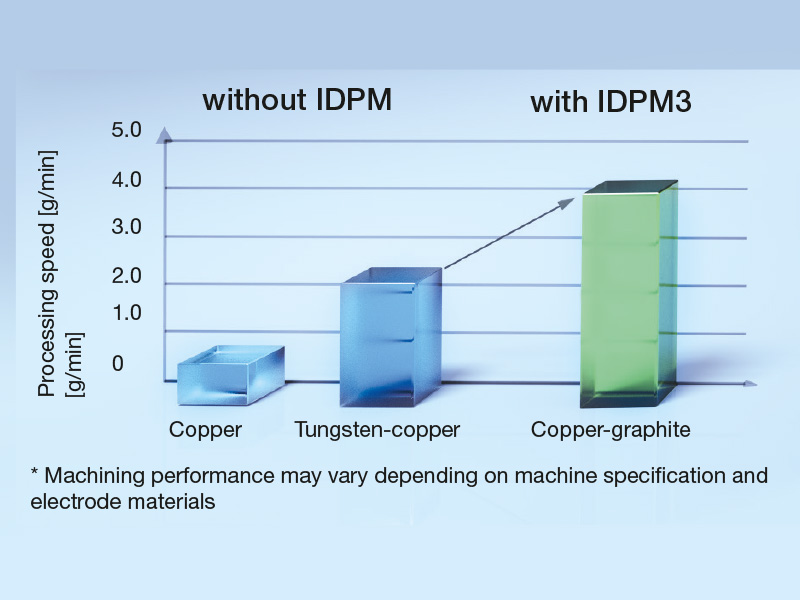

Significant improvement of the removal rate over conventional machines: up to 40 % higher machining speed can be achieved with carbide – thanks to the new IDPM. The use of copper-infiltrated graphite significantly increases the removal rate. The finish with tungsten copper electrodes compensates for slightly higher wear – performance and precision combined. Also in carbide.

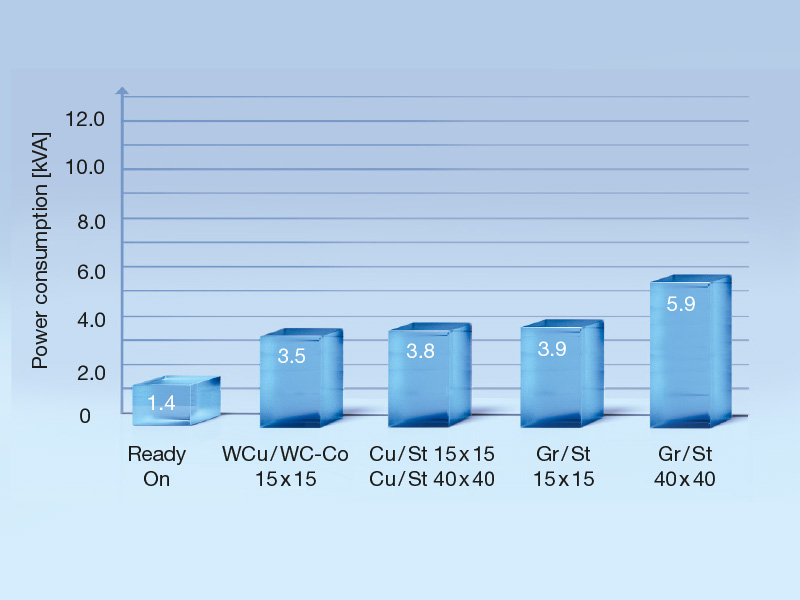

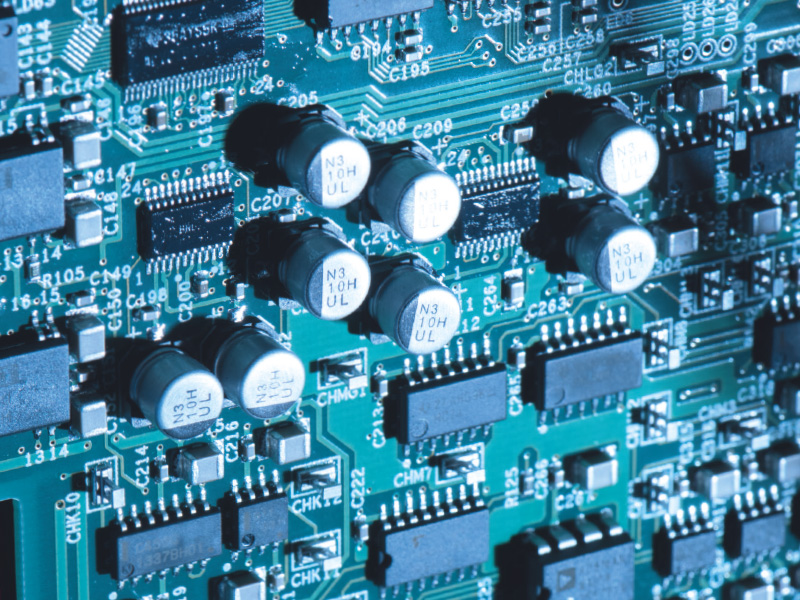

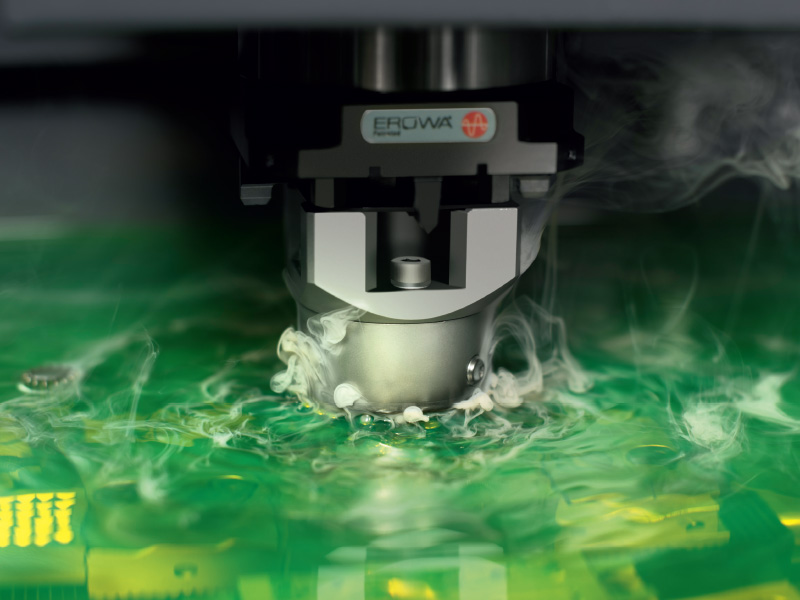

The GV-Generator is geared for minimal power loss and thus energy efficiency. This reduces energy costs while at the same time increasing power output and competitiveness – profit-generating technology from Mitsubishi Electric.

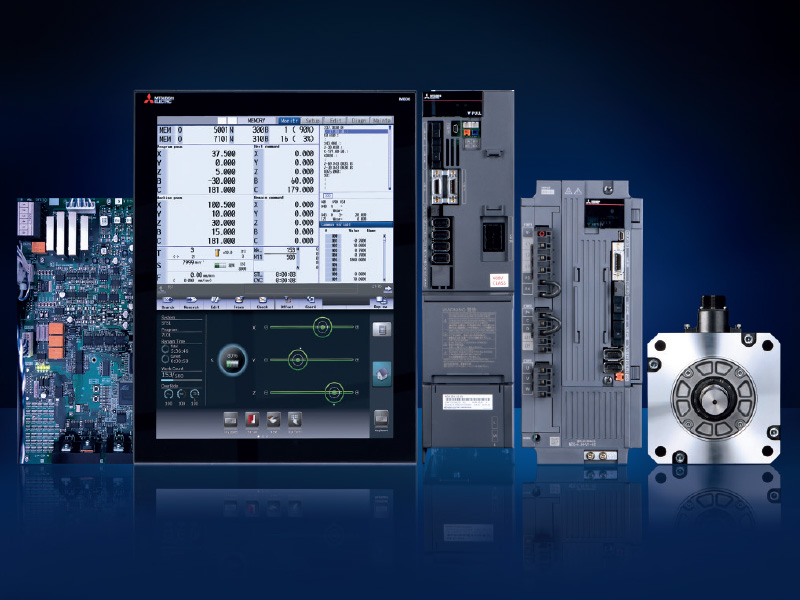

Designed for maximum accuracy and attention to detail, the SG8R has the same high-quality components in its machine engineering as its big sister. No compromises – even when it comes to small loads and short distances. Everything with the focus on precision in detail.

Response time is decisive

Lower energy input ensures better and sharper edges. Microcracks in the material are minimised at the same time. The improved structural integrity results in significantly extended tool life, not only for forming tools.

Despite its high power density, the technology of the SG series is designed for gentle material machining. Even when machining carbide with high currents in roughing operations, there is scarcely any microcracking. The service life of the machined components is thus significantly extended.

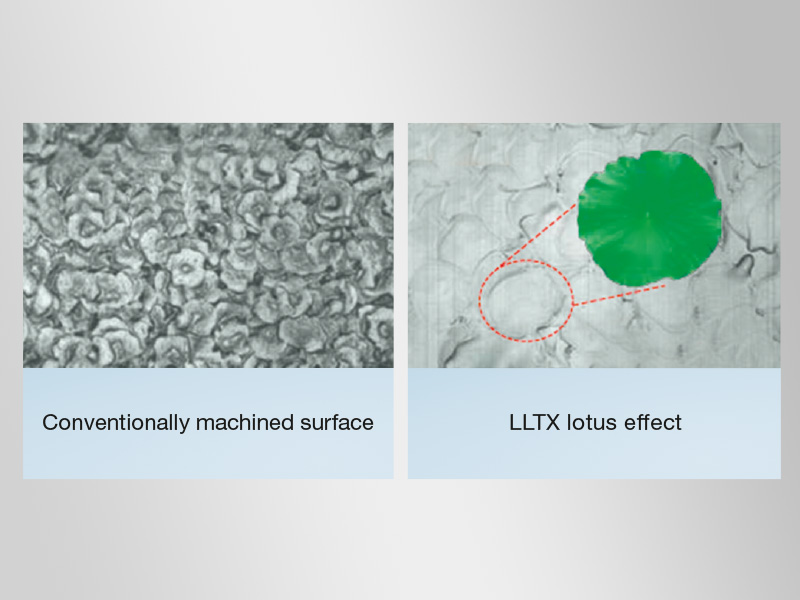

Thanks to a special technology, mould surfaces are provided with a texture similar to that of a lotus leaf, which significantly improves the demoulding of plastic components.

The advanced D-CUBES M800 control supports the operator in every situation. It handles routine tasks and takes the effort out of programming. To ensure this, all SG-S machines are equipped with an Ethernet interface and USB port. Optionally available data services use these interfaces.

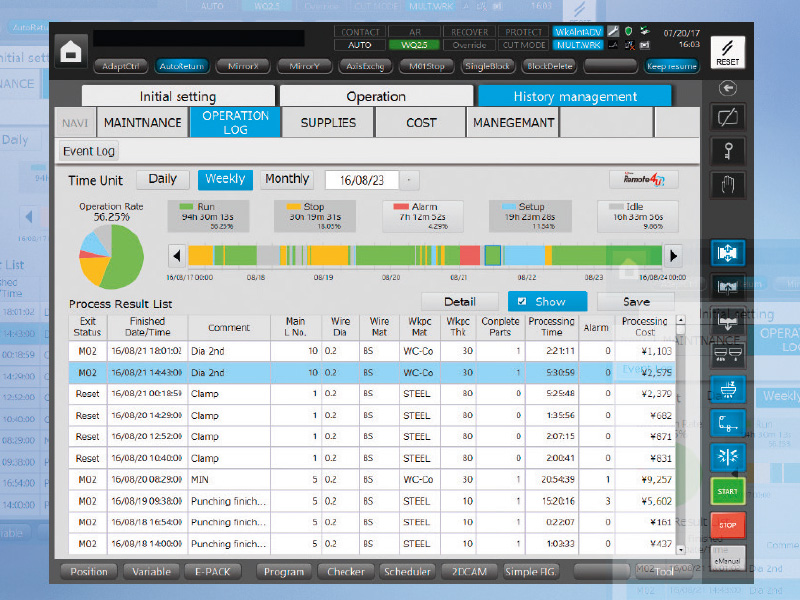

Operating and process data can be retrieved at the control. Available as standard is an export function for all process data, operating states, con­sumption data and maintenance states as well as alarms. This way the data from several machines can be viewed and evaluated in consolidated form, through to their integration in higher-order production man­agement systems.

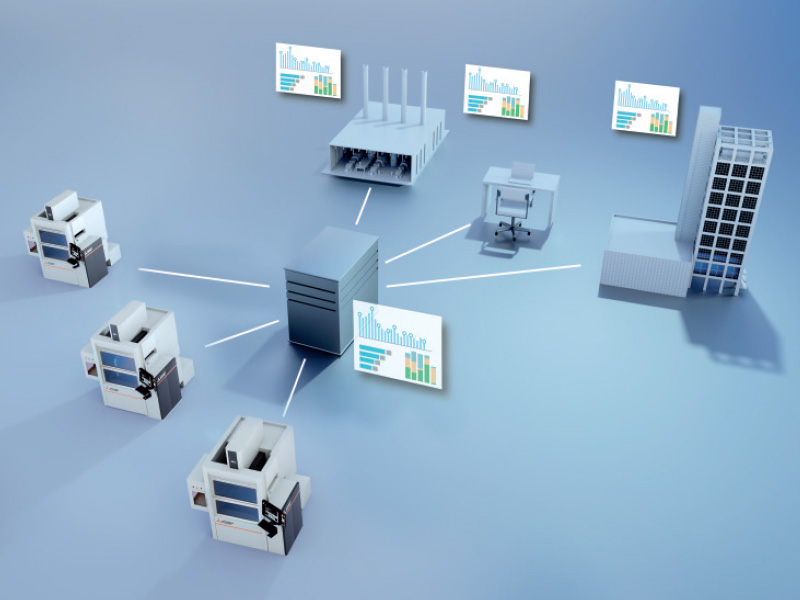

MTConnect is the open and licence-free communication standard of the machine tool industry. This standard is supported by many leading software applications for ERP, production management and production monitoring. Optionally available on the machines of the SG-S series.

Anti-virus protection is ensured as standard by one of the world’s leading software systems in security control.

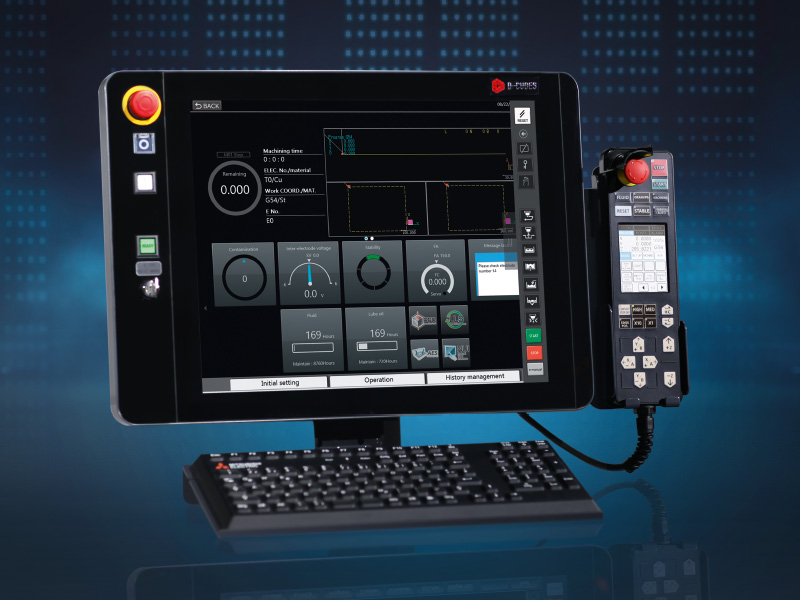

With step-by-step dialogue guidance, less experi­enced users are piloted through the entire process, from programming through to the start of machin­ing. Checklists make it possible to review all process-­relevant settings and machine states so that machining yields the best-possible results without ­interruption.

Greater flexibility thanks to adaptable job planning: with the simple assignment of priorities, you can quickly respond to changing requirements and squeeze in an urgently needed part. Several machining programs can be conveniently managed in the job planner.

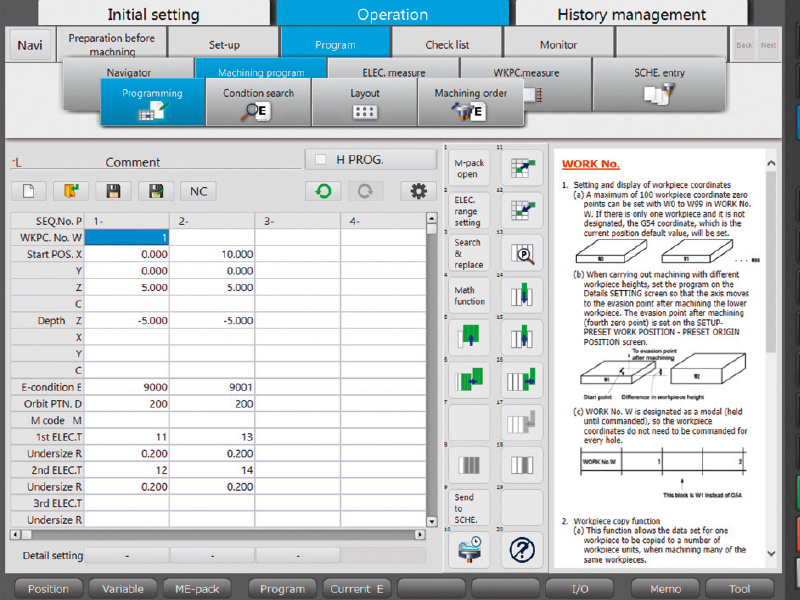

Thanks to new algorithms and the use of Artificial Intelligence, machining times can now be calculated much better in advance. The control system “learns” continuously during various machining operations and thus improves the calculated machining times with increasing precision.

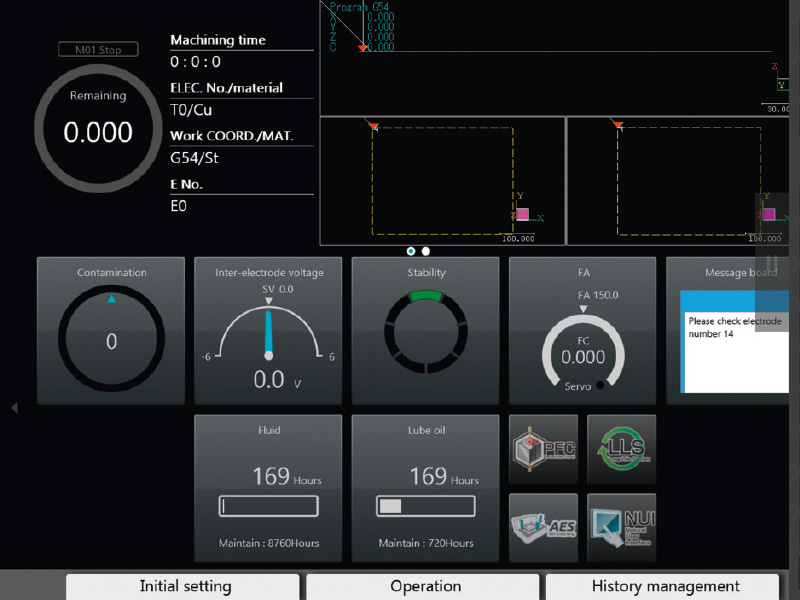

A professional wants to know everything – the display shows him all relevant information and enables him to intervene in the live process. This way he has everything under control – and knows that he will always achieve the best results.

The user-friendly and straightforward ESPERADVANCE PRO lite programming tool can be found on the onboard control and is included in the standard range of equipment, it includes an online manual as a technical guide. The SG-S delivers excellent value for money across the board.

Boost the reliability of programming at the machine by checking the created program with simulations using Parasolid models. Programming has never been so simple – and reliable.

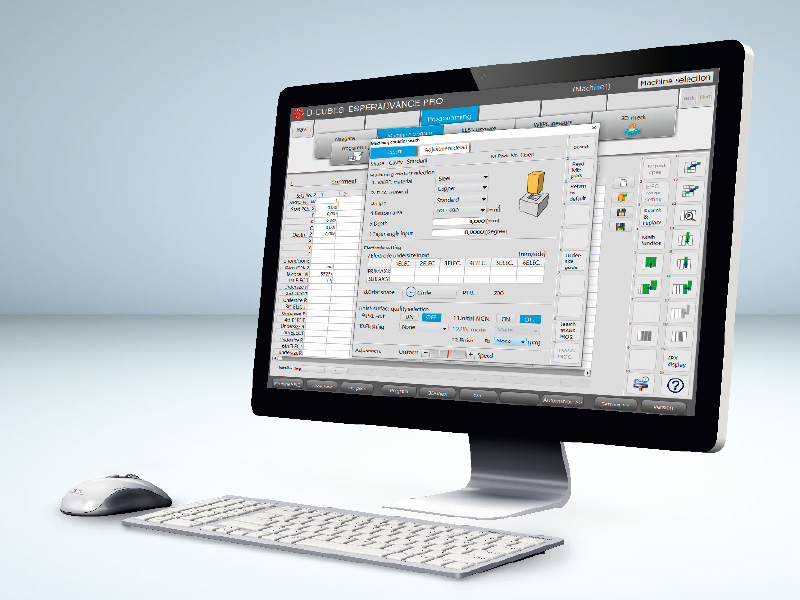

The programming software with the maximum scale of functions. Programming based on 3D Parasolid, ESPERADVANCE PRO technology programming such as at the machine, 3D graphic simulation for maximum reliability – all inclusive. This option is the right choice for each and every automated die sinking system.

Simple operation via touch screen – just like on a smartphone.

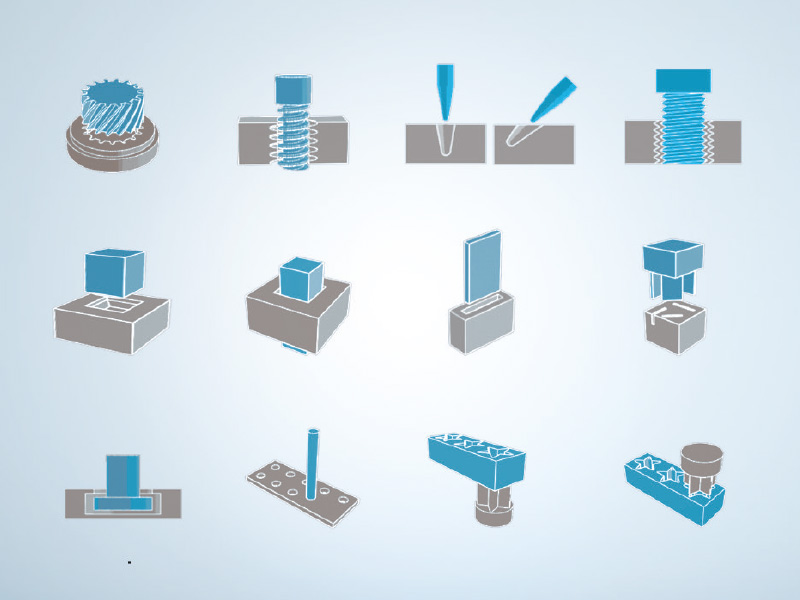

Ready for anything thanks to the extensive library in the control. Only the details of the respective task are still required, and from this the control automatically generates a complete machining program. By selecting the material pair electrode/workpiece, the technology is generated independently. Achieve results faster – for higher output and profits.

Machining programs are created entirely by means of dialogue guidance – at Mitsubishi Electric this is called ESPERADVANCE Navigator. Plain language selection windows guide the operator from set-up and technology selection to program start. Every user, from beginner to professional, will appreciate this.

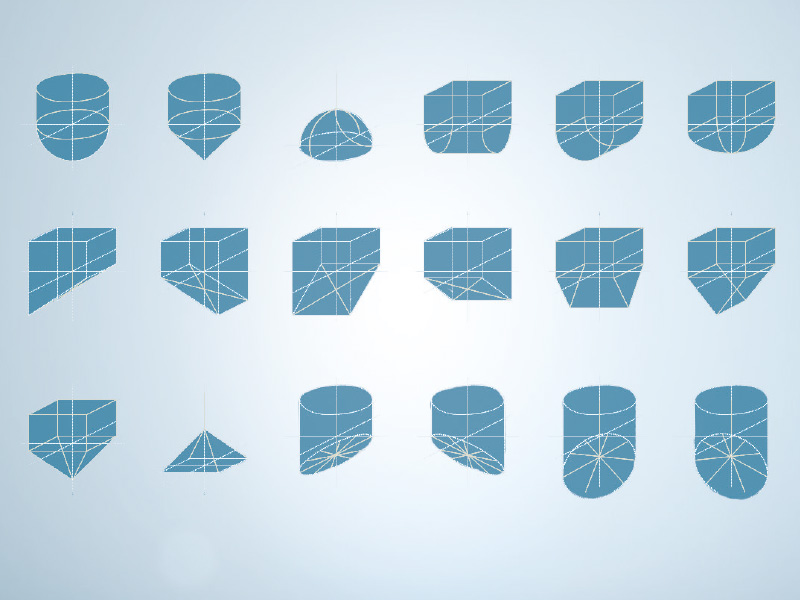

For a variety of applications, optimised deflection cycles are available that can be assigned on request. You need a cycle deviating from the norm? No problem – cycles can be easily put together with an editor. This is how intelligent operator support works.

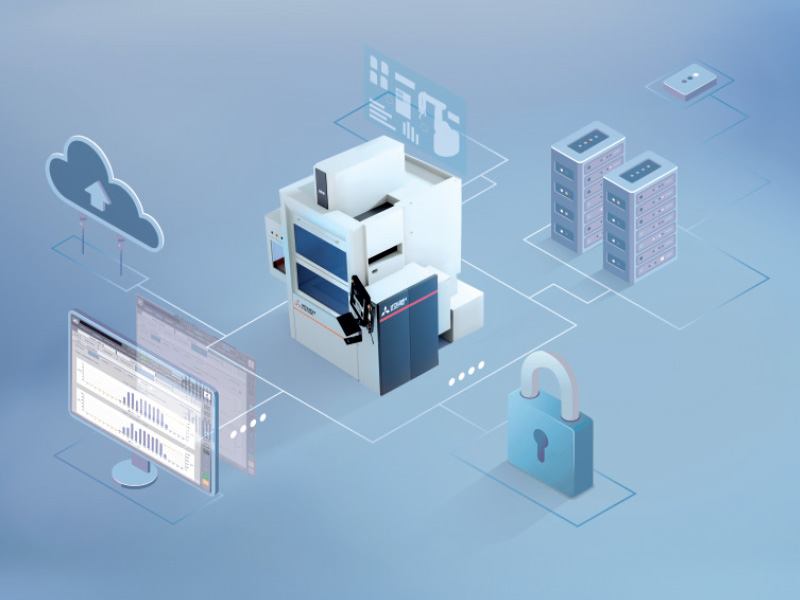

Control machines and keep an eye on processes – wherever you are. Relax while you work thanks to more intelligent communication. Ideal in combination with automation solutions and high process autonomy.

mcAnywhere Service
Rapid assistance from the Mitsubishi Electric experts.

mcAnywhere Control
The convenient and reliable remote control for your EDM system – powered by TeamViewer (TeamViewer license fees payable by the customer)

mcAnywhere Contact+
Any time, any place … you’re always up to date with direct status reports by email
(external service program – capable of handling several machines).

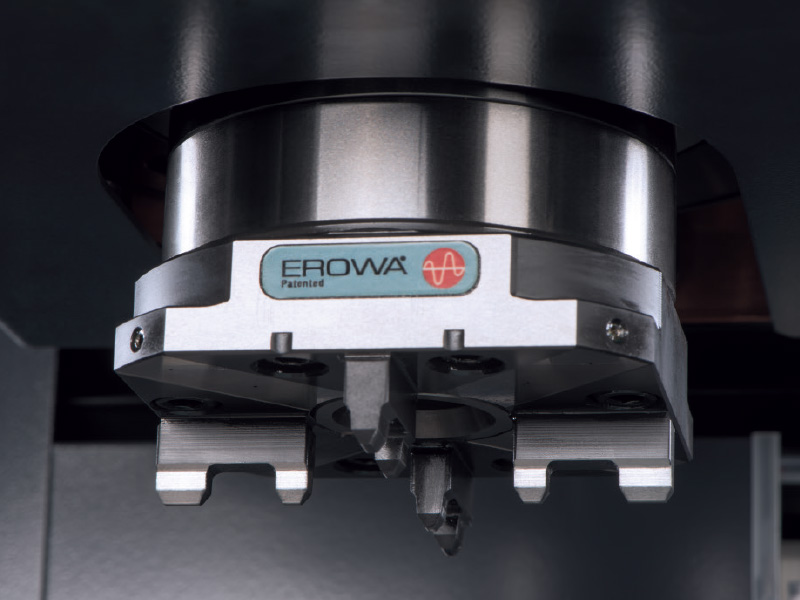

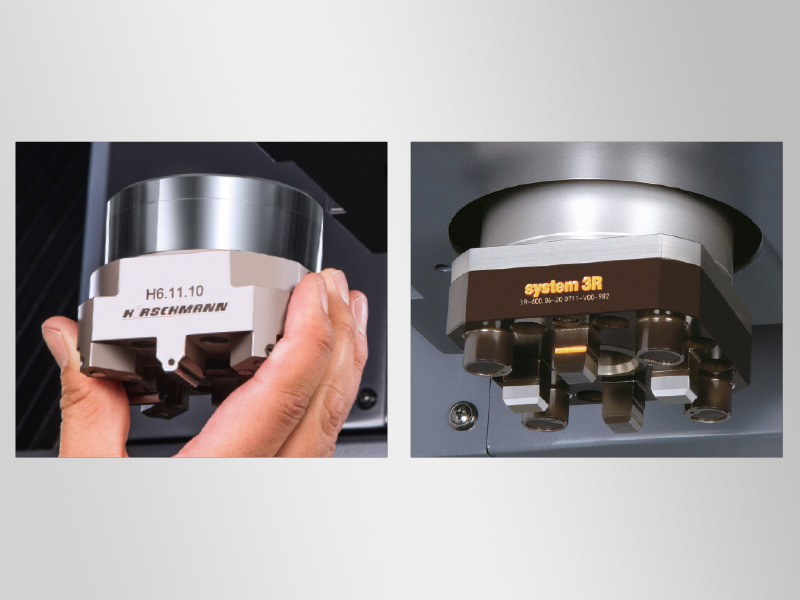

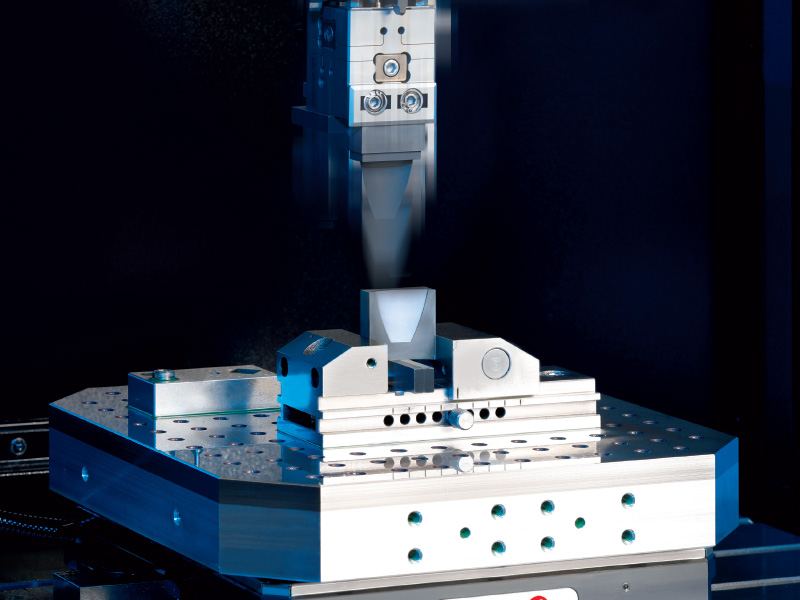

Compatible with EROWA, System 3R and Hirschmann. The standard C axis interface is totally flexible.

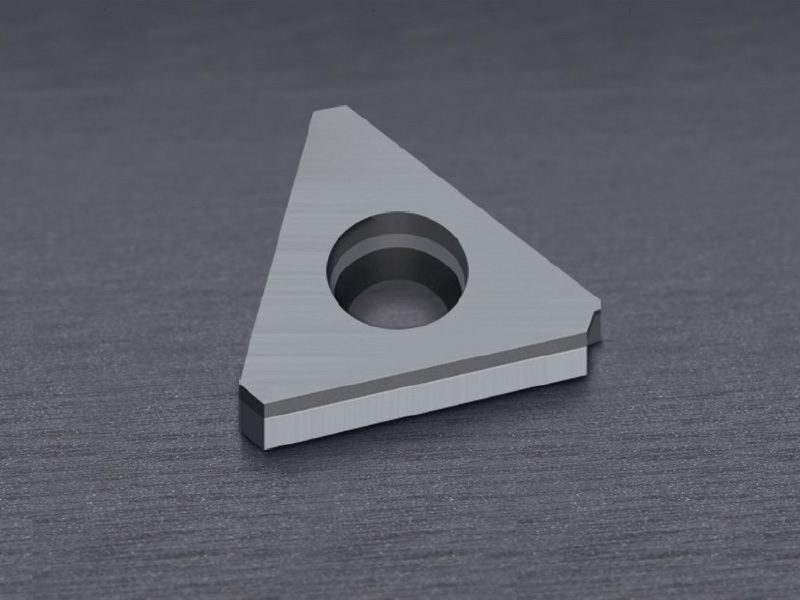

Even the machining of PCD and CBN materials is possible with “PCD Expansion”.

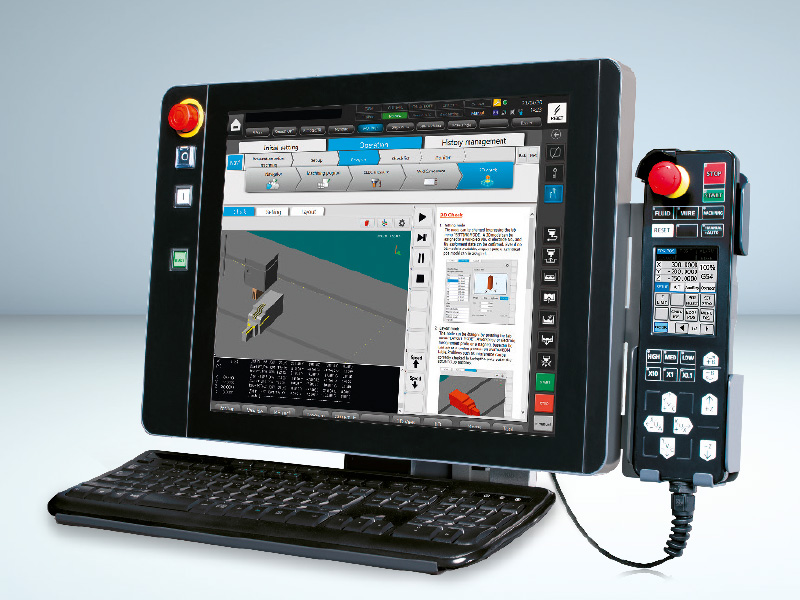

Extension of the programming functionality on the machine control to include checking of the created erosion program using imported 3D data (Parasolid).

In addition to the four standard axes, a further simultaneous axis can be integrated as a B axis.

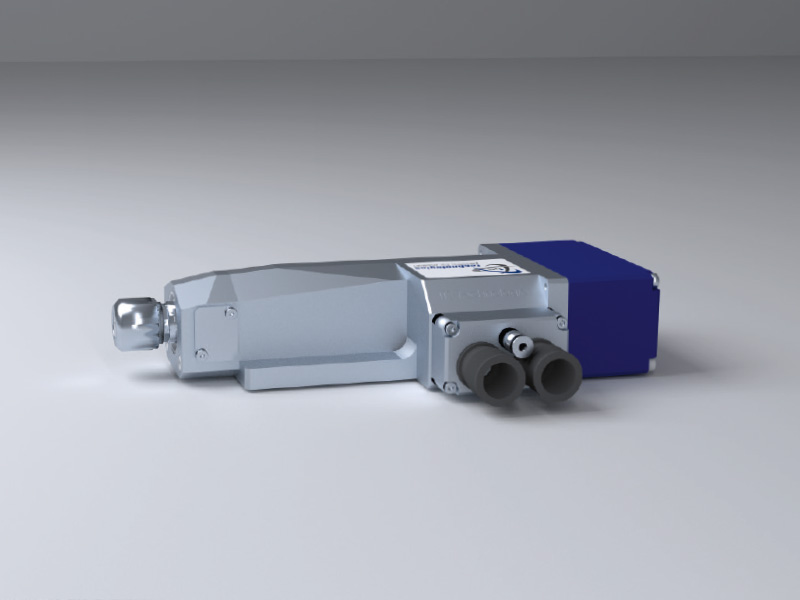

The rotating spindle can be integrated into the machine control system – so it can also act as a positioning axis and operate in simultaneous mode.

The three-stage status lamp in LED technology visibly shows the machine’s state even at distance and looks good, too.

Additional ergonomic workspace lighting – so everything is brightly visible.

The fine hole drilling option enables the production of precise microscopic holes on the sinker EDM machine. We recommend its use in combination with the high-speed spindle and a high-pressure dielectric pump.

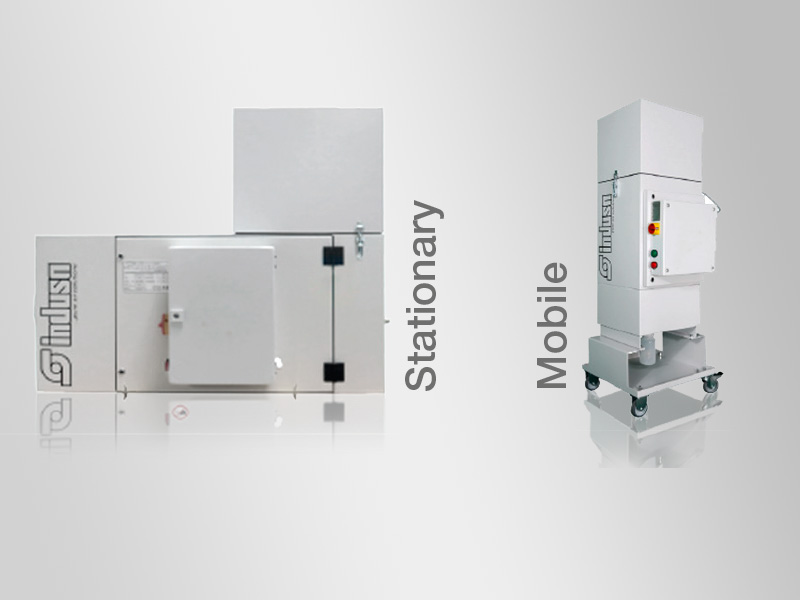

Exhaust air filtration with return to the room. The electrostatic filter with a downstream activated carbon filter removes oil mist and vapours from the extracted exhaust air. Stationary installation or as a mobile unit for flexible use – tailored to individual requirements.

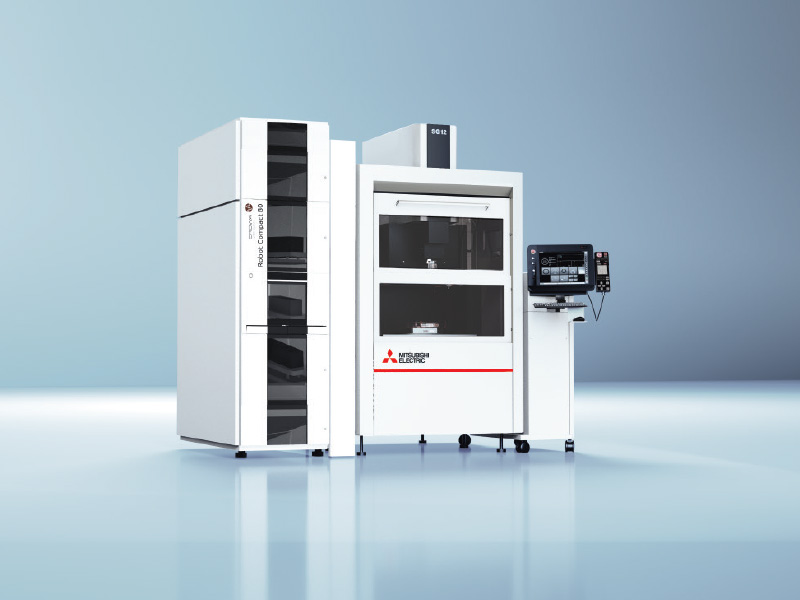

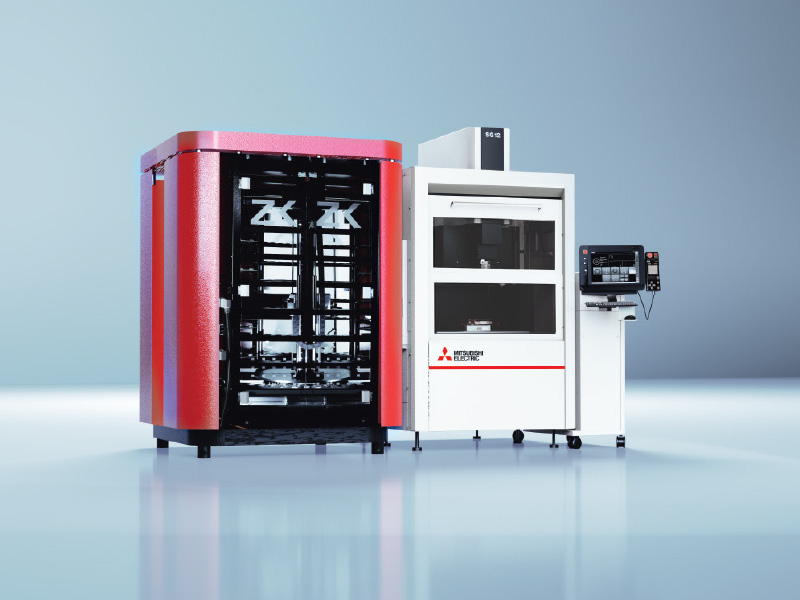

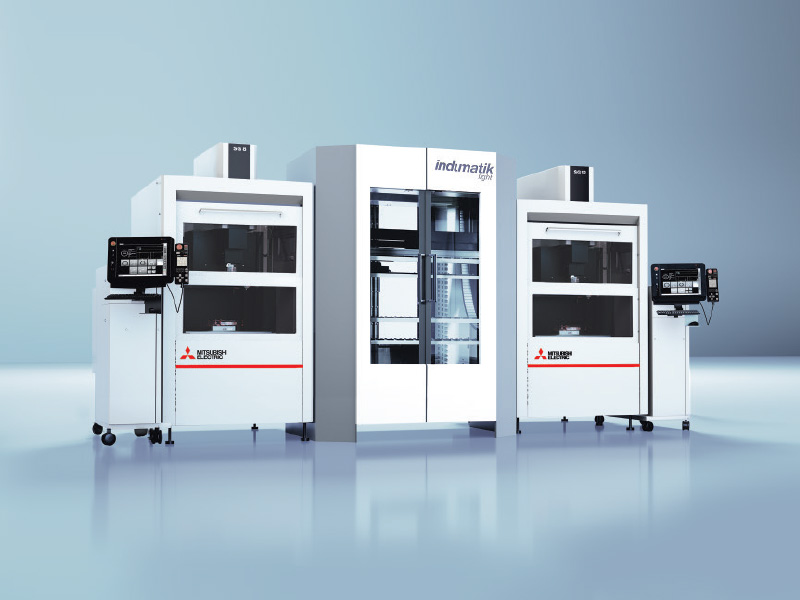

Whether one, two or even several machines – automation with job management and component recognition by chip ID – convenient and scalable.

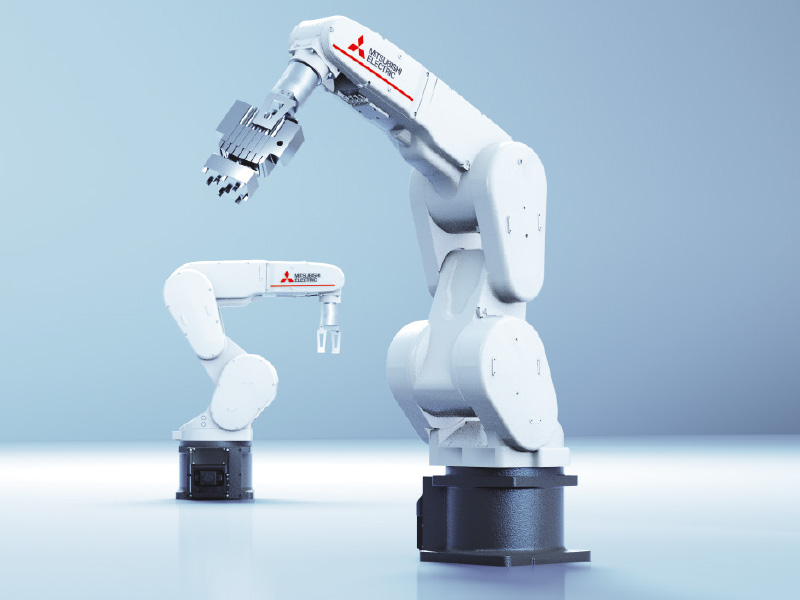

Flexible solution: Articulated-arm robot up to 75 kg of Mitsubishi Electric quality.
