XEDM: Flawless Precision –
Effortless Programming

XEDM: Intuitive, Error-Free Programming for Maximum Efficiency (Click for details)

Programming without training

As a user, I can make changes directly on the machine control CAM directly on the machine control. Simple and intuitive for fast and reliable NC programs. Tailor-made for the application directly in production.

Self-explanatory Simple!

I can change the cutting sequence

• Sequence (e.g. all main cuts first, etc.)
• Time for cutting off the waste pieces (directly after the main cut or separately, after recuts)
• Other settings (e.g. partial processing) etc.

XEDM and EXPRESSCAM - the strong team

Convenient thanks to the same user interface in XpressCAM for the PC and XEDM. Users have it especially easy because they have a common data source,
seamless preparation on the PC, including technology selection. Changes can also be made directly on the machine with XEDM, which saves time.

Simplified Programming

Intuitive and user-friendly interface that reduces work steps, speeding up the process by 30% and reducing errors by 50%.

Centralized Control

Offers centralized control elements with a reflective system, ensuring seamless integration and process continuity.

Flexibility

High flexibility in adapting machining strategies and job sequences, allowing quick response times.

Enhanced Visibility

Provides clear visibility and control during processes, helping operators avoid mistakes.

Seamless Machine Integration

Consistent environment on both the PC and machine, reducing the need for extensive training.

FUNCTION DESCRIPTION (Click for details)

Reading 3D Data

• Data import in STEP & IGES format

Workpiece Setup

• Definition of the coordinate system for program output on the workpiece (e.g., corner points, model edges, drilling center points, etc.)
• Setting of axis orientation in X-Y-Z (by rotating the axis orientation)
• Specification of workpiece material
• Selection of wire diameter & wire material
• Mitsubishi D-CUBES CNC settings:
  • POWER-Master conditions
  • Selection of the workpiece coordinate system (G54.1 P00-99)
• Additional machine settings, etc.

Raw Part Geometry

• Workpiece description via workpiece box or custom-defined workpiece dimensions in X-Y-Z
• Selection of workpiece material
• Specification of the desired cutting height

EDM Geometry

• Automatic recognition of all machinable geometries and generation of corresponding machining contours
• Filtering functions (e.g., outer/inner contours, cylindrical, standard conical, & others, including wire tilt limitation)
• Assignment of contour properties for machining geometries:
  • Setting of the base level & height
  • Definition of contour entry points

Start Points

• Approach distance
• Position on approach element (in %)
• Wire position (left, right)

Cutting Sequence

• Order (e.g., first all primary cuts, etc.)
• Timing for separating scrap parts (immediately, after primary cut, or separately, after secondary cuts)
• Additional settings (e.g., partial machining), etc.

Strategy

• Approach / departure
• Inflow / support
• Process control for separating scrap parts (e.g., one cut or multiple cuts) depending on the quality selection in the next step
• Oscillation

Quality and Interpolation

• Selection of machining quality
• Offset compensation
• Interpolation tolerance

Program Header

• Program data (e.g., file name, program number, path, etc.)
• Job data (e.g., part name, part number, etc.)

NC-Browser

• Generation of NC code
• View including graphical feedback
• Output of notes & warnings

Our Products

•

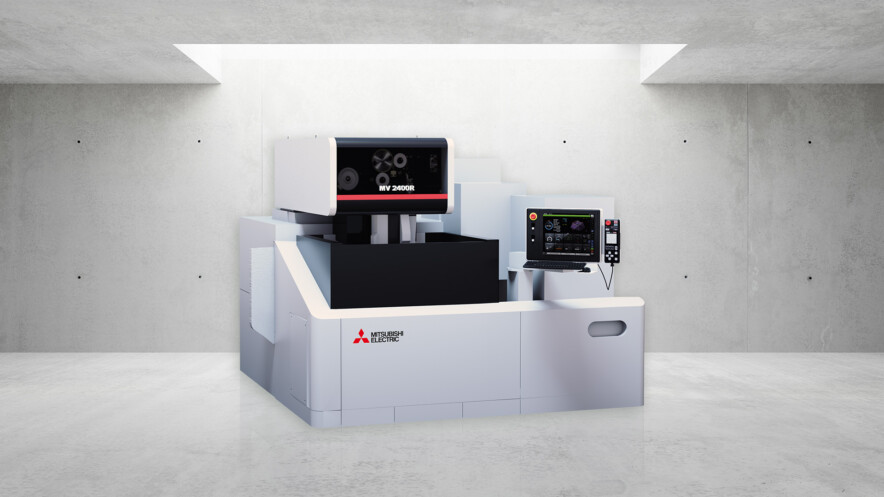

  MV-R Series – Power for Precision

  read more
•

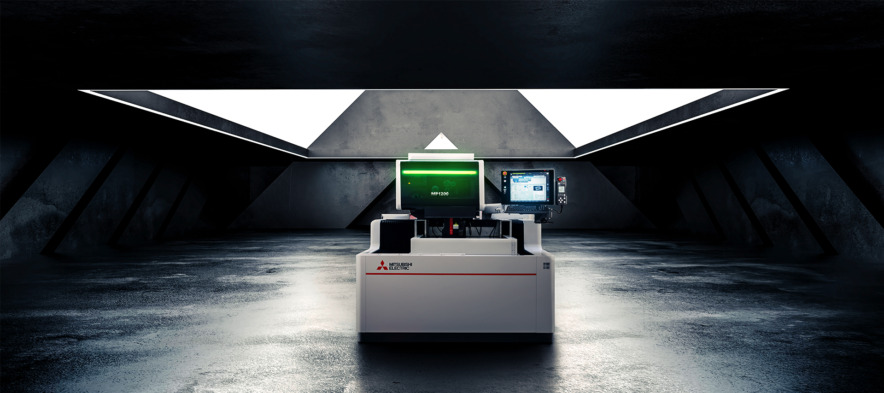

  MP Series – High Accuracy
