After positive experience with an already proven EA8S die-sinker EDM, the roller and ball bearing manufacturer myonic in Leutkirch has invested in an MV1200R Connect wire-cut machine. This will mainly benefit production equipment manufacturing and in-house training.
When Johannes Beckers talks about wire erosion, his eyes light up. As head of Service Mechanic Maintenance / Training at the roller and ball bearing manufacturer myonic in Leutkirch, he is responsible for operating equipment and is also in charge of training. “With wire erosion, we have invested in a sophisticated technology. However, for me it’s absolutely essential if we are to remain competitive in the long term,” he says.

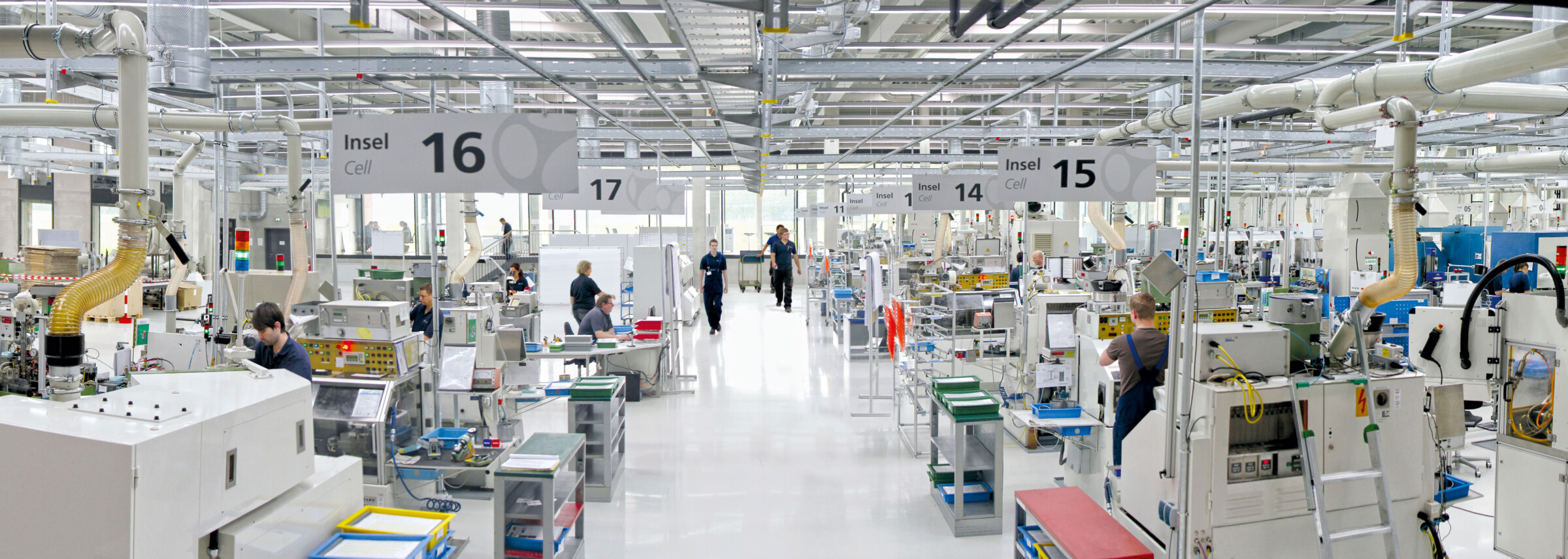

The company in Allgäu produces high-quality miniature roller bearings and complete bearing units for special applications. These include, for example, spindle heads for dental drills in which roller bearings with a diameter of just a few millimeter operate without lubrication at speeds of over 200,000 rpm. For this, a variety of production equipment, such as collets for mounted points, has to be manufactured with high precision. These components, Beckers explains, often have intricate geometries that can only be produced with wire erosion. “In addition to the collets produced in-house, we used to outsource various wire erosion jobs for other workpieces. However, despite the good and reliable cooperation with regional businesses, this repeatedly caused unnecessary delays and longer waiting times. That was one of the main reasons for integrating wire erosion technology into our own production set-up,” Beckers adds.
As their experience to date with the machine manufacturer Mitsubishi Electric had been excellent, those responsible at myonic decided on an MV1200R Connect wire-cut EDM machine on Beckers’ recommendation. Markus Hepp, who works in equipment manufacturing, confirms the MV1200R Connect’s ease of operation and programming. Only a few days of instruction and training at Mitsubishi Electric in Ratingen were quite sufficient for him to be able to work productively with the MV1200R Connect. “Thanks to the innovative human-machine interface with a large-format touchscreen, the control of the machine goes a long way towards meeting the wishes and expectations of young professionals in particular. It can be operated intuitively,” he adds. “Many programming and operating steps are self-explanatory or very easily grasped via graphics and in dialogue. The control also shows details of the function and diagnostics on the touchscreen, which simplifies everyday work with the wire EDM machine significantly.” His positive verdict on Mitsubishi Electric’s ground-breaking programming and user interface is based on a comparison with a rival wire-cut EDM machine that myonic has been using for production for several years.
At a – by international comparison – high-cost location in Germany, myonic’s development and production activities are competitive because it specialises in high-quality roller bearings for difficult ambient conditions.
Its product range includes roller bearings for computer tomographs, for surgical instruments and medical prostheses, for dental drills, and also for robot arms for use on satellites in space, for machine spindles for high-speed cutting (HSC) and for navigation systems in aviation and shipping, e.g. the gyro compass.
These mostly very small or slim radial and axial roller bearings each have to meet specific requirements. These can be operation without lubrication to avoid contamination of the environment, use in a vacuum close to the absolute temperature minimum, or long-lasting, reliable operation at very high speeds of over 300,000 rpm.
The MV1200R wire-cut EDM machine is now indispensable for the manufacture of our operating equipment.
Johannes Beckers, Head of Service Mechanic Maintenance/Training at myonic
myonic is also using the MV1200R Connect temporarily in production. If, for example, miniaturised collets for dental and medical technology have to be machined, wire erosion proves to be particularly useful. “In the cylindrical workpieces, there are deep grooves only a few tenths of a millimetre wide that replace a complex grinding process”, says Hepp. “This can only be achieved with a sophisticated wire erosion process. We now also put the MV1200R Connect to intensive use for this type of machining.”
Thanks to the second wire EDM, the production technicians now have greater capacity and, above all, an alternative should the machine already in use in production for many years break down. The specialists in Leutkirch attach great importance to the wire EDM’s ability to run reliably and also unsupervised. “This allows us to cost-effectively machine workpieces in small series – during night shifts, for example,” says Hepp. The automatic wire threading system of the MV1200R Connect makes a significant contribution to process security, reliably threading thin wires measuring 0.1 to 0.3 mm in diameter.
Young professionals in particular find programming and operation via touchscreen particularly easy and convenient.
Markus Hepp, industrial mechanic
Encouraged by the excellent experience with the MV1200R Connect in the first few weeks, the experts at myonic are now using the wire EDM technology beyond its initial applications. With the aid of the MV1200R Connect, employees in the company can develop and deepen their extensive know-how of wire EDM machining, says Beckers. “This not only makes us a little more independent of external suppliers, but also gives us a competitive edge. We can now develop economic, forward-looking machining processes ourselves,” he adds. Until now, many workpieces have been machined in several steps, such as milling, drilling, grinding and – for difficult geometries – wire eroding.
Of course, this entails considerable internal organisational and logistical effort. In addition, there is prolonged downtime, and throughput thus takes longer. But in Beckers’ opinion, it may prove to be much better and faster to design the components in such a way that all contours and geometries can all be wire-eroded. This may seem like a lengthy process at first glance, Hepp admits.
“But,” says Beckers, “you have to look at the process as a whole. If the multiple clampings on machines for different machining processes are omitted, this significantly accelerates throughput and reduces in-house effort. Furthermore, the single clamping on the wire-cut EDM machine ensures much higher accuracy. We can reliably machine all function-defining contours with an accuracy of less than 0.01 mm. This proves to be particularly beneficial for components for complex devices that we produce for our grinding machines in the production equipment department.” In this way, the apparent drawback of wire-cut EDM can be turned into a quality-defining asset.
Name and place of company:

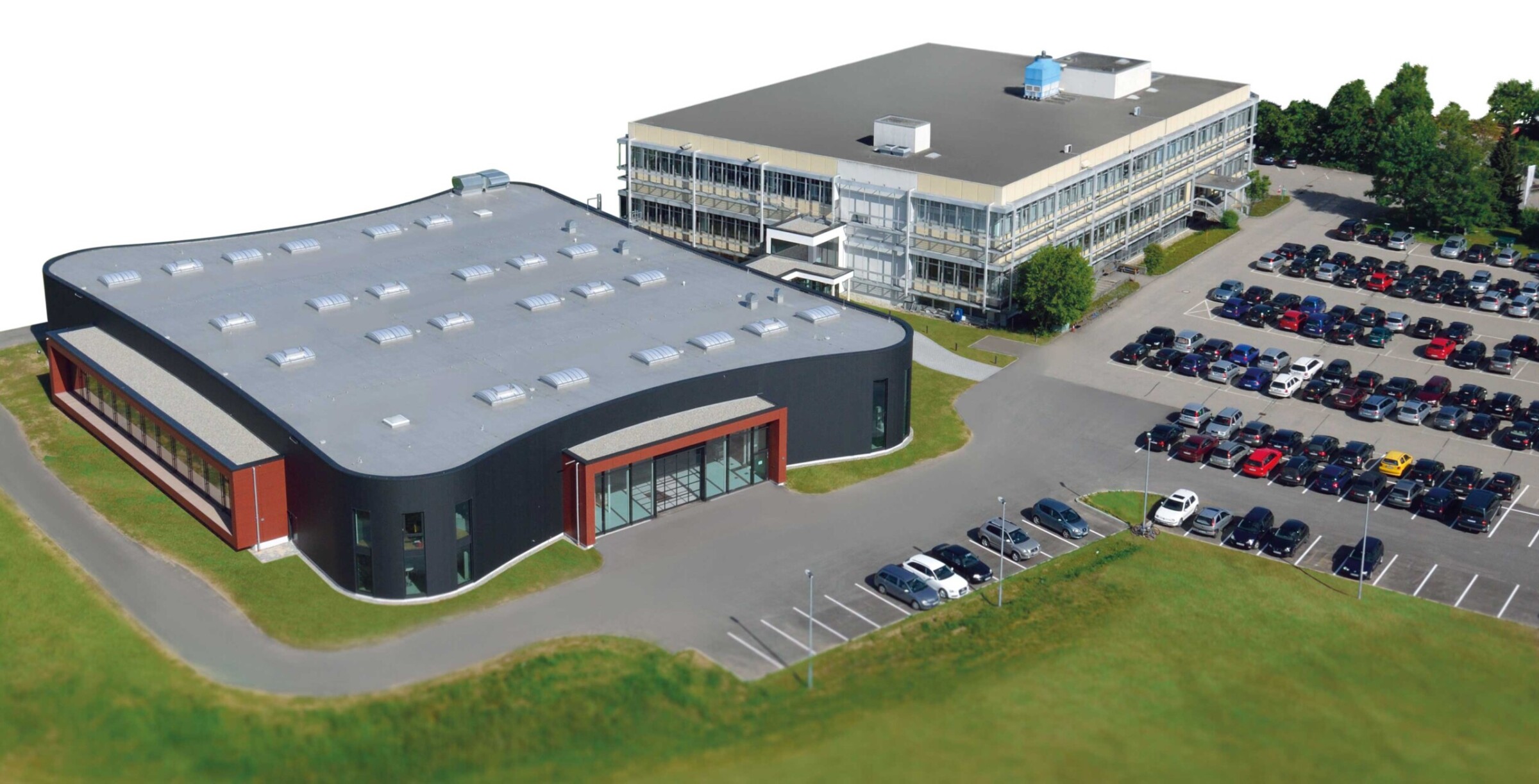

Original company established in 1936 as RMB (Roulements Miniatures de Bienne) S.A. in Biel, Switzerland, and in 1968 as MKL Miniatur Kugellager Leutkirch at today’s main location in Leutkirch, Germany
Christoph von Appen
345 the parent plant in Leutkirch
Development and production of special miniature precision roller bearings and bearing units individually optimised for their applications in selected, sophisticated drive systems in medical technology, aerospace, the automotive industry, mechanical and plant engineering, and micromechanics.
Tel. +49 7561 978-0
As head of industrial training, Johannes Beckers sees his task essentially in attracting young people to jobs in the industry.
We see the young generation as a forward-looking task and as a special challenge. Young people no longer automatically come to industry for employment as they did a few years ago. But in order to stay competitive in Germany in the long term, we need a large number of highly skilled employees. That’s why in-house training is at the top of myonic’s agenda. We plan to double the number of our industrial trainees in the next few years.
We want to win over young people with appealing and sophisticated technology. I still see that young people are enthusiastic about technology, such as smartphones, tablets and the apps associated with them. So if we want to attract these people to our companies as junior staff, we have to take these interests seriously and, say, offer all trainees their own tablets to support their learning, in addition to modern production technology. We have also created a bonus system for good grades during the apprenticeship, which creates an additional incentive.
Mitsubishi Electric’s wire EDM technology is a good example. The MV1200R Connect is equipped with a forward-looking control system and is programmed and operated via a large touchscreen. This is very much in line with the environment young people are used to from smartphones. This environment is familiar to them, and they can immediately apply the know-how and skills they have taught themselves in their free time. With appropriate support from experienced hands, they can immediately enjoy a sense of achievement.
We need to integrate challenging technologies into training as early as possible. Today, young people are put off by the training that was customary just a few years ago. This might involve, for example, spending weeks manually shaping a piece of steel profile with a file. Young people today are much more advanced in their intellectual abilities than one assumes. They want to be challenged. So it is only right to familiarise them as early as possible with sophisticated technologies such as CNC programming, multi-axis machining on turning and milling centres and the somewhat exotic process of wire erosion.
Besides the technologically attractive environment, a modern social structure is of course part and parcel of this. Demanded and preferred today is behaviour that is more collegial but still defines the direction and content. All employees in a company want to and should contribute their skills and efforts and be appreciated for this. Companies must present themselves as desirable employers overall. myonic is one of the 100 most attractive employers in Germany.
Head of industrial training
